Запчасти Case IH 1020 (9C-12) - AUGER AND KNIFE DRIVE SHIELD AND SUPPORTS (58) - ATTACHMENTS/HEADERS

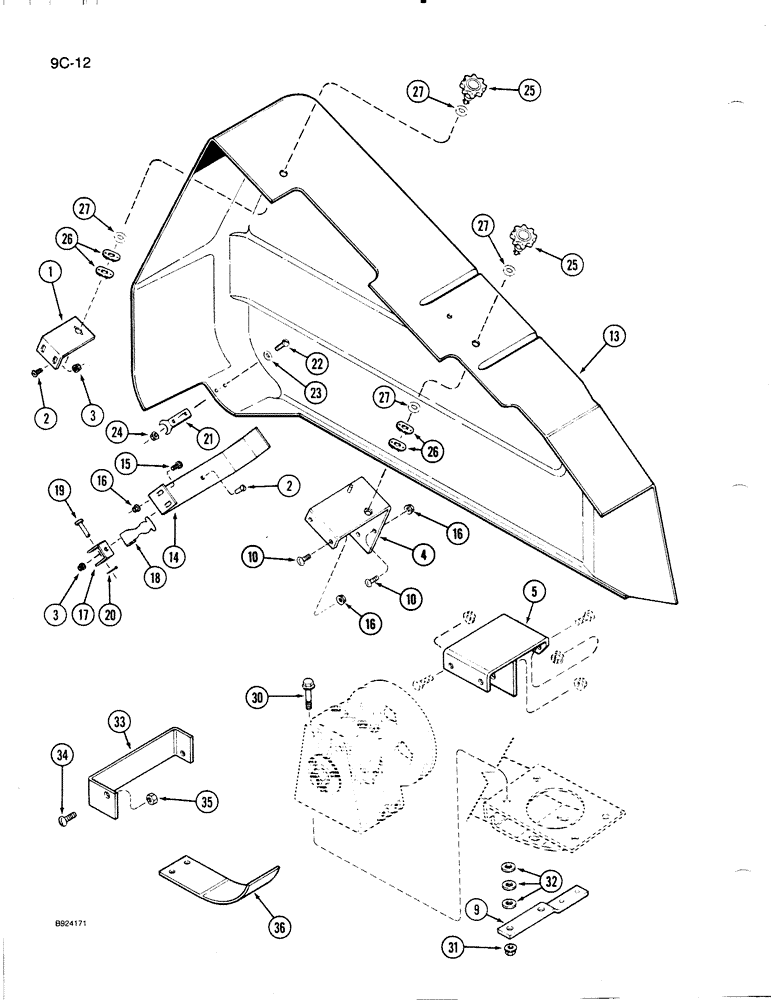

Схема запчастей Case IH 1020 - (9C-12) - AUGER AND KNIFE DRIVE SHIELD AND SUPPORTS (58) - ATTACHMENTS/HEADERS
2
17
27
4
24
1
21
30
33
25
34
3
22
27
16
26
10
19
25
13
18
35
31
36
23
27
16
5
26
32
9
16
20
3
10
14
15
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1316510C1

SUPPORT

ASSEMBLY - shield upper rear

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

5шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flanged hex lock, 5/16 inch NC

5шт.

4

1326760C1

SUPPORT

- shield upper front

1шт.

5

1313881C1

SUPPORT

- knife drive idler

1шт.

9

1320955C1

BRACKET

SUPPORT - shield

1шт.

10

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

2шт.

13

1316693C2

SHIELD

- left drive (Replaces 1316693C1)

1шт.

REF # 13 R.H. SIDE SEE 9D-6 REF # 35 HCH

1шт.

14

1326386C1

SUPPORT

- shield lower rear

1шт.

15

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

2шт.

16

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged hex lock, 3/8 inch NC

8шт.

17

188103C1

BRACKET

YOKE - hook anchor

1шт.

18

494307C1

LATCH

HOOK - trim hold down

1шт.

19

22910R1

HEADED PIN

PIN - headed, 1/4 x 1-1/2 inch, Grade 1

1шт.

20

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

21

764071C1

BRACKET

- trim hook

1шт.

22

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

23

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

Flat 7/32" x 3/4" x .060"

2шт.

24

174097C1

FLANGE NUT,Flg, USR, #10-24

- flanged hex lock, No. 10-24 inch

2шт.

25

1326408C2

STUD,25.4mm OD x 52.3mm L

STUD - shield fastener

2шт.

26

1326407C1

RETAINER

- shield stud

4шт.

27

495-81023

WASHER,17/32" x 1 1/4" x .030"

- flat, 17/32 x 1-1/4 x 1/32 inch (Replaces 22265R1)

1шт.

REF

INSTRUCTION

SUPPORT - knife box (See Page 9D-11)

1шт.

REF

INSTRUCTION

BOX ASSEMBLY - knife drive (See Figure 9B-24)

1шт.

30

414080C1

BOLT,Hex, 5/8" - 18 x 2 1/2"

- flanged hex, 5/8 NC x 2-1/2 inch, Grade 8

2шт.

31

414089C1

FLANGE NUT,5/8" - 18

NUT - flanged hex prevailing torque, 5/8 inch NC, Grade 8

2шт.

32

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, hardened

6шт.

33

1320954C1

BRACKET

- shield, left front

1шт.

34

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

1шт.

35

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

36

1316198C1

DEFLECTOR

- knife pulley crop

1шт.
