(9C-10) - AUGER DRIVE CLUTCH

Запчасти Case IH 1020 (9C-10) - AUGER DRIVE CLUTCH (58) - ATTACHMENTS/HEADERS

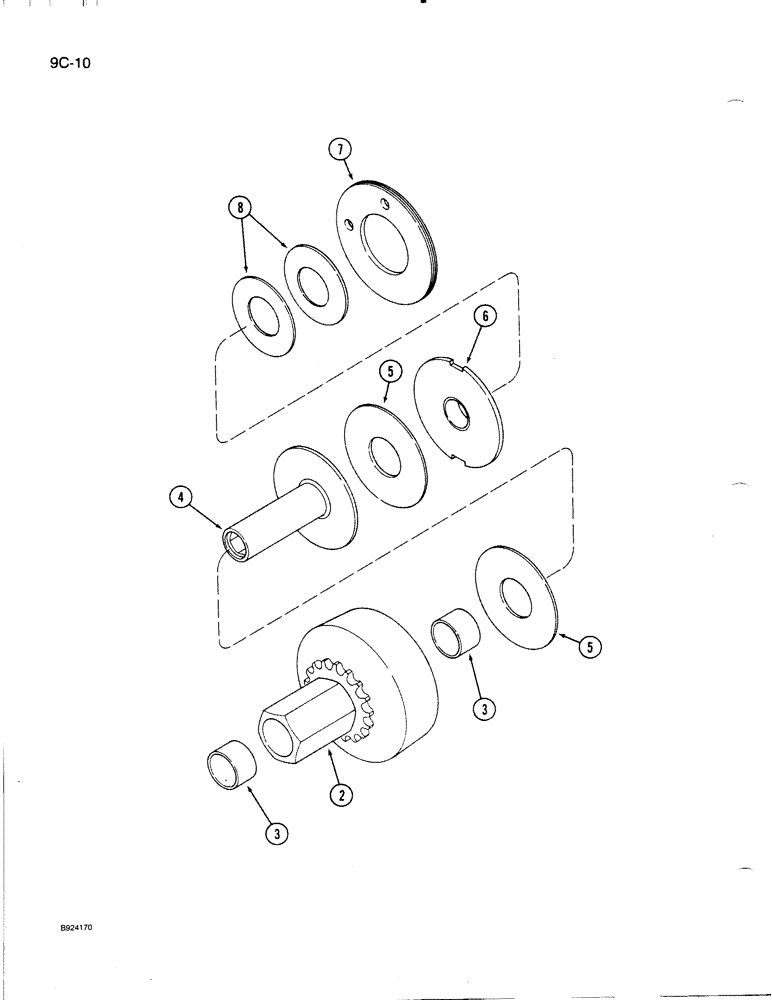

Схема запчастей Case IH 1020 - (9C-10) - AUGER DRIVE CLUTCH (58) - ATTACHMENTS/HEADERS
3
5
2
7
5
3
4
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1326796C1

HOUSING

auger drive clutch, Incl 2 (Replaces 1316739C91)

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - clutch

1шт.

3

1305927C1

BUSHING

- clutch housing

2шт.

4

1316741C1

HUB

- clutch inner

1шт.

5

1316742C1

FACING

- clutch

2шт.

6

1326424C2

PLATE

ASSEMBLY - clutch drive (Replaces 1316739C91)

1шт.

7

1316744C1

ADJUSTING PLATE

PLATE - clutch spring adjusting

1шт.

8

1316756C1

BELLEVILLE WASHER

WASHER - Belleville

2шт.
