Запчасти Case IH 1020 (9C-09A) - AUGER DRIVE, MODELS WITH AUGER DRIVE ON RIGHT-HAND SIDE OF HEADER (SPLIT KNIFE W/ AUGER DRIVE) (58) - ATTACHMENTS/HEADERS

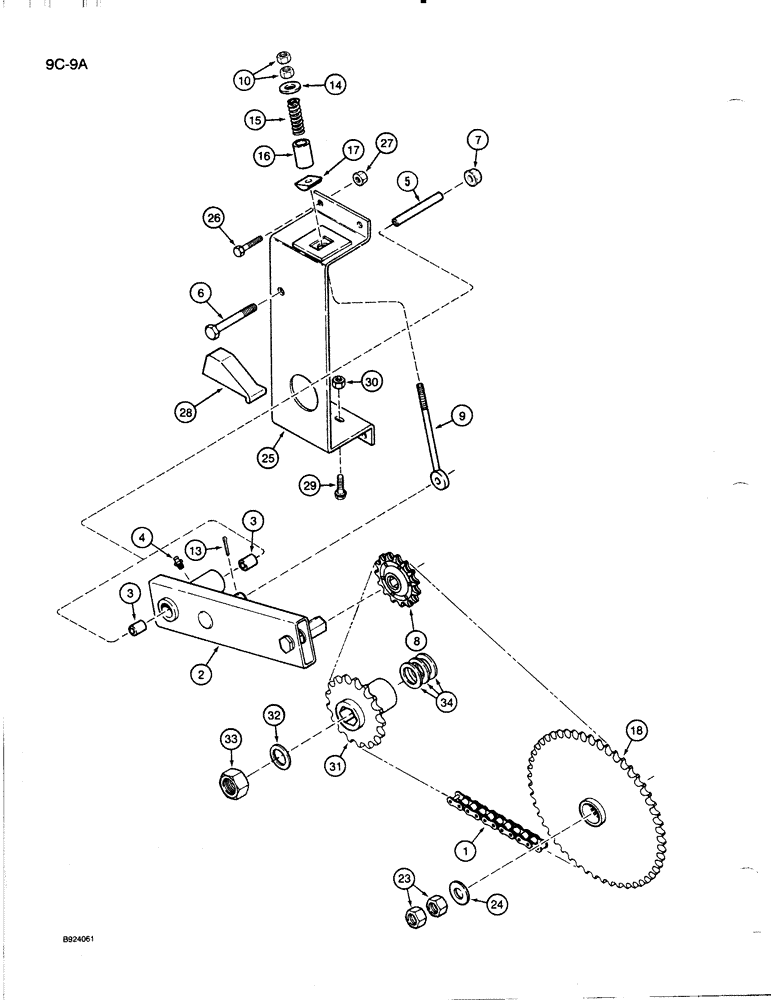

Схема запчастей Case IH 1020 - (9C-09A) - AUGER DRIVE, MODELS WITH AUGER DRIVE ON RIGHT-HAND SIDE OF HEADER (SPLIT KNIFE W/ AUGER DRIVE) (58) - ATTACHMENTS/HEADERS
27
18
2
25
8
33
17
5
3
31
7
1
29
32
28
30
23
3
4
6
9
16
15
14
26
34
13
24
10

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - auger drive, 152 RPM (Standard) (See Note)

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - auger drive, 170 RPM (Optional) (See Note)

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - auger drive, 189 RPM (Optional) (See Note)

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - auger drive, 213 RPM (Optional) (See Note)

1шт.

2

106050A1

LEVER

ASSEMBLY - auger idler

1шт.

3

289588R1

BUSHING

- idler lever

2шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

1шт.

5

106065A1

SPACER

BUSHING - idler lever

1шт.

6

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

1шт.

7

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange lock, 1/2 inch NC

1шт.

8

1316050C91

SPROCKET

- idler (15 teeth)

1шт.

9

1316528C1

BOLT

EYEBOLT - idler

1шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

13

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

14

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - flat,17/2 x 1.50 x 3/16 inch

1шт.

15

360626R2

SPRING

- auger drive idler

1шт.

16

1316533C1

SPACER

- auger idler stop

1шт.

17

194652C1

PIVOT

- elevator drive

1шт.

18

106055A1

SPROCKET

ASSEMBLY - auger drive, 152 RPM (56 teeth) (Standard)

1шт.

18

106056A1

SPROCKET

ASSEMBLY - auger drive, 170 RPM (50 teeth) (Optional)

1шт.

18

106057A1

SPROCKET

ASSEMBLY - auger drive, 189 RPM (45 teeth) (Optional)

1шт.

18

106058A1

SPROCKET

ASSEMBLY - auger drive, 213 RPM (40 teeth) (Optional)

1шт.

23

425-1416

JAM NUT,Jam, 1"-8, G5

- hex, jam, 1 inch NC

2шт.

24

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 13/64 inch, Hardened

1шт.

25

106047A1

SUPPORT

ASSEMBLY - auger drive

1шт.

26

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

4шт.

27

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

28

1316381C2

GUIDE

- auger chain

1шт.

29

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

2шт.

30

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

31

106059A1

SPROCKET

- auger drive, 17 teeth

1шт.

32

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

- flat, 13/16 x 1-3/4 x 7/32 inch, hardened

1шт.

33

9413971

LOCK NUT,3/4"-10, GB

NUT - hex, lock, 3/4 inch

1шт.

34

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-13/32 x 2 x 1/16 inch

1шт.

Выбрано товаров: 34
