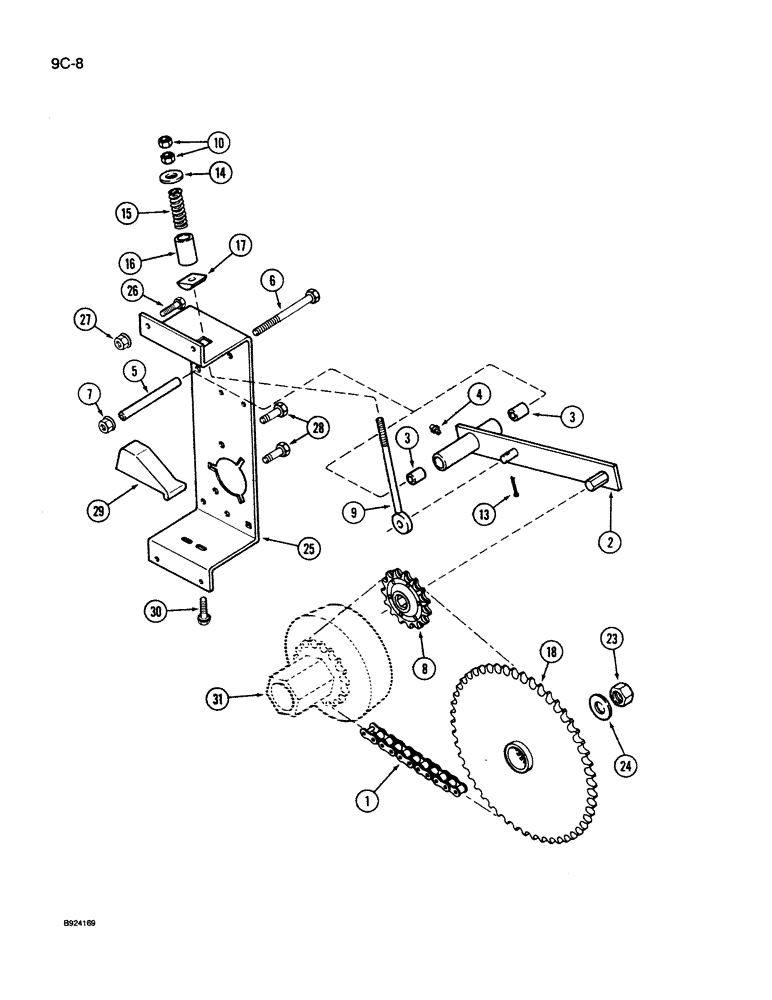

Запчасти Case IH 1020 (9C-08) - AUGER DRIVE, MODELS WITH AUGER DRIVE ON LEFT-HAND SIDE OF HEADER (W/ KNIFE DRIVE) (58) - ATTACHMENTS/HEADERS

1

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - auger drive (See Note)

1шт.

611362R91

CHAIN (AG)

CHAIN - 10 foot roll

1шт.

574532R91

CLIP, SPRING

LINK - chain, connecting

1шт.

2

1316522C95

LEVER

ASSEMBLY - auger idler (Replaces 1316522C92)

1шт.

3

289588R1

BUSHING

- idler lever

2шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

5

1316527C1

SPACER

BUSHING - idler lever

1шт.

6

413-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

- hex, 1/2 NC x 6-1/2 inch

1шт.

7

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - flanged hex prevailing torque, 1/2 inch NC

1шт.

8

1316050C91

SPROCKET

- idler, 15 teeth

1шт.

9

1316528C1

BOLT

EYEBOLT - idler

1шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

13

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

14

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - flat, hardened

1шт.

15

360626R2

SPRING

- auger drive idler

1шт.

16

1316533C1

SPACER

- auger idler stop

1шт.

17

194652C1

PIVOT

- auger idler rod

1шт.

18

1316189C1

SPROCKET

- auger drive, 56 tooth, standard (152 rpm) (See Note)

1шт.

18

1307329C1

SPROCKET

- auger drive, 50 tooth (170 rpm) (See Note)

1шт.

18

1307327C1

SPROCKET

- auger drive, 45 tooth (189 rpm) (See Note)

1шт.

18

1316570C1

SPROCKET

- auger drive, 40 tooth (213 rpm) (See Note)

1шт.

23

131-698

LOCK NUT,1"-8, GB

NUT - hex lock, prevailing torque, 1 inch NC

1шт.

24

396-31106

WASHER,1.06" ID x 2" OD x 0.22" Thk

- flat, 1-1/16 x 2 x 7/32 inch

1шт.

25

1316540C1

SUPPORT

ASSEMBLY - auger and knife drive

1шт.

26

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

4шт.

27

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged hex lock, 3/8 inch NC

4шт.

28

136187C2

BOLT,Drilled Hex, 1/2" - 13 x 5", Full Thd

- 1/2 inch NC

2шт.

29

1316381C2

GUIDE

- auger chain (Replaces 1316381C1)

1шт.

30

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- flanged hex lock, 5/16 NC x 3/4 inch

2шт.

31

REF

INSTRUCTION

CLUTCH ASSEMBLY - auger drive (See Page 9C-11)

1шт.
