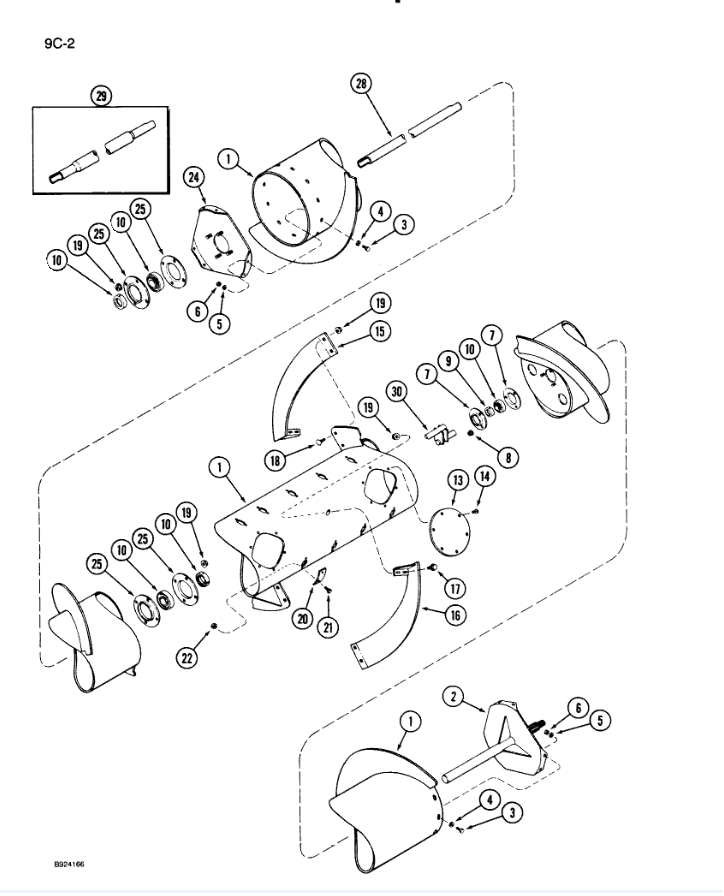

Запчасти Case IH 1020 (9C-02) - AUGER, MODELS WITH AUGER DRIVE ON LEFT-HAND SIDE OF HEADER, (WITH KNIFE DRIVE) (58) - ATTACHMENTS/HEADERS

1

1307210C2

AUGER

ASSEMBLY - header (15 foot header) (Replaces 1307210C1)

1шт.

1

1326821C2

AUGER

ASSEMBLY - header (16-1/2 foot header) (Replaces 1326821C1)

1шт.

1

1307211C2

AUGER

ASSEMBLY - header (17-1/2 foot header) (Replaces 1307211C1)

1шт.

1

1307212C2

AUGER

ASSEMBLY - header (20 foot header) (Replaces 1307212C1)

1шт.

1

1313839C2

AUGER

ASSEMBLY - header (22-1/2 foot header) (Replaces 1313839C1)

1шт.

1

1313840C2

AUGER

ASSEMBLY - header (25 foot header) (Replaces 1313840C1)

1шт.

1

1313841C2

AUGER

ASSEMBLY - header (30 foot header) (Replaces 1313841C1)

1шт.

2

181817C1

SHAFT

ASSEMBLY - drive, left-hand end of auger, see page 9C-7 for bearing and flanges on shaft end

1шт.

3

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

12шт.

4

25534R1

WASHER

- hardened, 0.406 x 0.812 x 0.065 inch

12шт.

5

366862C1

LOCK WASHER,3/8"

3/8"

12шт.

6

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, Grade 8 (Replaces 21333R1)

12шт.

7

937517R1

FLANGE

- bearing

2шт.

8

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex lock, 5/16 inch NC

3шт.

9

455102R21

COLLAR

- locking, bearing, with set screw

1шт.

10

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING ASSEMBLY - auger shaft, inner

3шт.

13

184505C1

COVER

- hand access

2шт.

14

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

12шт.

15

1308445C2

EXTENSION

- auger flight, left

1шт.

16

1308446C2

EXTENSION

- auger flight, right

1шт.

17

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange lock, 1/2 NC x 1 inch

2шт.

18

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

4шт.

19

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange lock, 1/2 inch NC

1шт.

20

167823C1

COVER

- finger hole

2шт.

21

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

22

231-4144

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

4шт.

24

1307256C1

RETAINER

- auger LH

1шт.

25

663562R1

FLANGE

- bearing

4шт.

28

1307262C1

TUBE,38.087 mm OD, 1793 mm Length

- finger adjusting (15 foot header)

1шт.

28

1326828C1

TUBE,38.087 mm OD, 2021.6 mm Length

- finger adjusting (16-1/2 foot header)

1шт.

28

1307263C1

TUBE,38.087 mm Diameter, 2174 mm Length

- finger adjusting (17-1/2 foot header)

1шт.

28

1307264C1

TUBE,38.087 mm Diameter, 2555 mm Length

- finger adjusting (20 foot header)

1шт.

28

1307265C1

TUBE,38.087 mm Diameter, 2936 mm Length

- finger adjusting (22-1/2 foot header)

1шт.

29

1307266C1

TUBE

- finger adjusting (25 foot header)

1шт.

29

1307267C1

TUBE

- finger adjusting (30 foot header)

1шт.

30

REF

INSTRUCTION

SHAFT ASSEMBLY - finger (See Figure 9C-04)

1шт.
