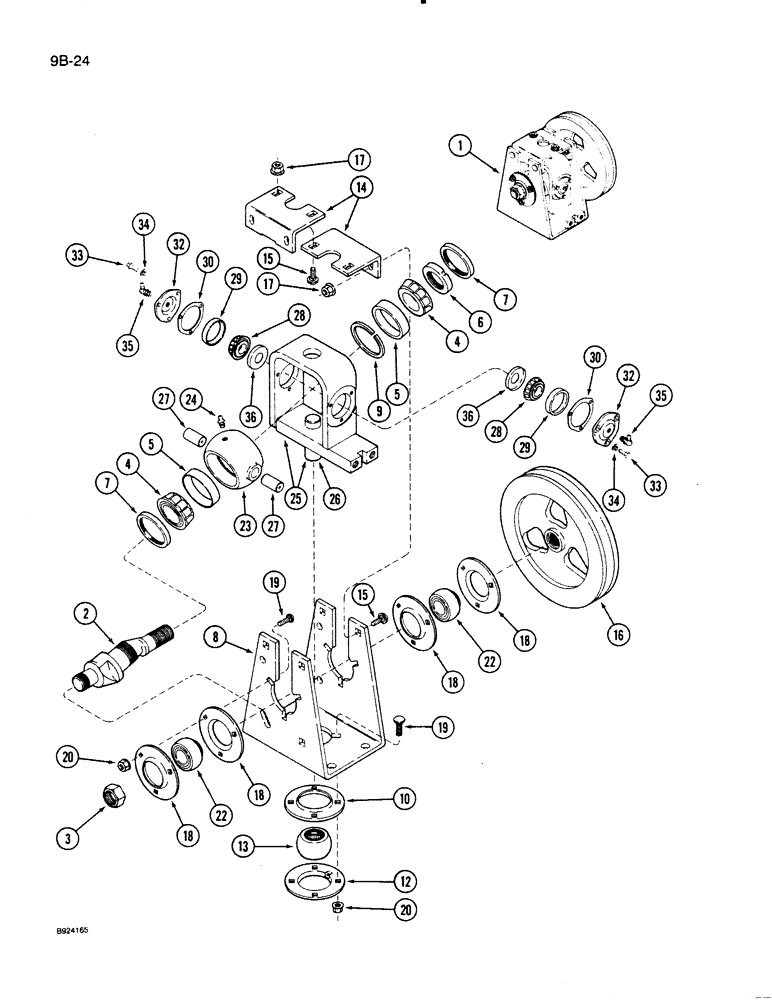

Запчасти Case IH 1020 (9B-24) - KNIFE DRIVE BOX (58) - ATTACHMENTS/HEADERS

1

1316987C91

WOBBLE BOX

BOX ASSEMBLY - knife drive

1шт.

1

1316987C91R

REMAN-WOBBLE BOX

Remanufactured, Wobble Box, 1020 (Prior to S/N...), N.A. Only

1шт.

1

1316987C91C

CORE-WOBBLE BOX

Return Number, Wobble Box, N.A. Only

1шт.

2

1305883C1

SHAFT

- wobble

1шт.

3

25-1418

NUT,Jam, 1 1/8"-7, G5

- hex jam, 1-1/8 inch NC

1шт.

4

G15215

ROLLER BEARING

CONE - bearing, inner (Replaces G15215)

2шт.

5

619387R1

BEARING CUP

CUP - bearing

2шт.

6

178028C1

LOCK NUT

- hex lock

1шт.

Ref#6 - the spanner wrench for the 178028C1 is listed in 1600 Service Manual Section 9115 as a 16-569.

1шт.

7

178029C91

OIL SEAL,54.89mm ID x 77.88mm OD x 9.5mm Thk

SEAL - oil

2шт.

8

1307386C2

SUPPORT

- wobble drive

1шт.

9

627095C1

SPACER

- snap ring cup

1шт.

10

1307387C1

FLANGED BEARING

- bearing

1шт.

12

1307388C1

FLANGE

- bearing with grease fitting

1шт.

13

1316463C91

SPHERICAL BEARING,Needle, 28.56mm ID x 62.04mm OD x 36.52mm W

ASSEMBLY - knife drive pivot

1шт.

14

178033C1

SHIELD

- wobble drive

2шт.

15

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

6шт.

16

1305884C1

PULLEY

- knife driven, 265 mm OD

1шт.

17

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange lock, 1/2 inch NC, Grade 8

6шт.

18

202909C1

BEARING HOUSING

FLANGE - shaft bearing

4шт.

19

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

10шт.

20

1306680C1

FLANGE NUT

NUT - flanged hex prevailing torque, 3/8 inch NC

10шт.

22

1316755C91

BALL BEARING,28.59mm ID x 62mm OD x 18mm W

BEARING - shaft

2шт.

23

178020C1

HOUSING

- wobble bearing

1шт.

24

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

25

1305050C1

SUPPORT

ASSEMBLY - yoke

1шт.

26

178024C2

PIN,28.57mm OD x 89mm L

- knife drive

1шт.

27

178025C1

PIN,21.49mm OD x 36.58mm L

- bearing housing

2шт.

28

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

2шт.

29

371883R1

BEARING CUP

2шт.

30

458955R1

SHIM,50.8mm ID x 76.2mm OD x 0.05mm Thk

- bearing retainer, 0.002 inch

1шт.

30

458956R1

SHIM

- bearing retainer, 0.005 inch

1шт.

30

458957R1

SHIM,50.8mm ID x 63.5mm OD x 0.25mm Thk

- bearing retainer, 0.010 inch (Replaces 485957R1)

1шт.

32

1316859C1

CAP

- knife yoke bearing

2шт.

33

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

6шт.

34

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

35

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Short 90º, 1/8" NPT x .84" lg

2шт.

36

197895C1

SEAL

SEAL - bearing

2шт.

REF

INSTRUCTION

DECAL - lubrication (See Page 9D-29)

2шт.
