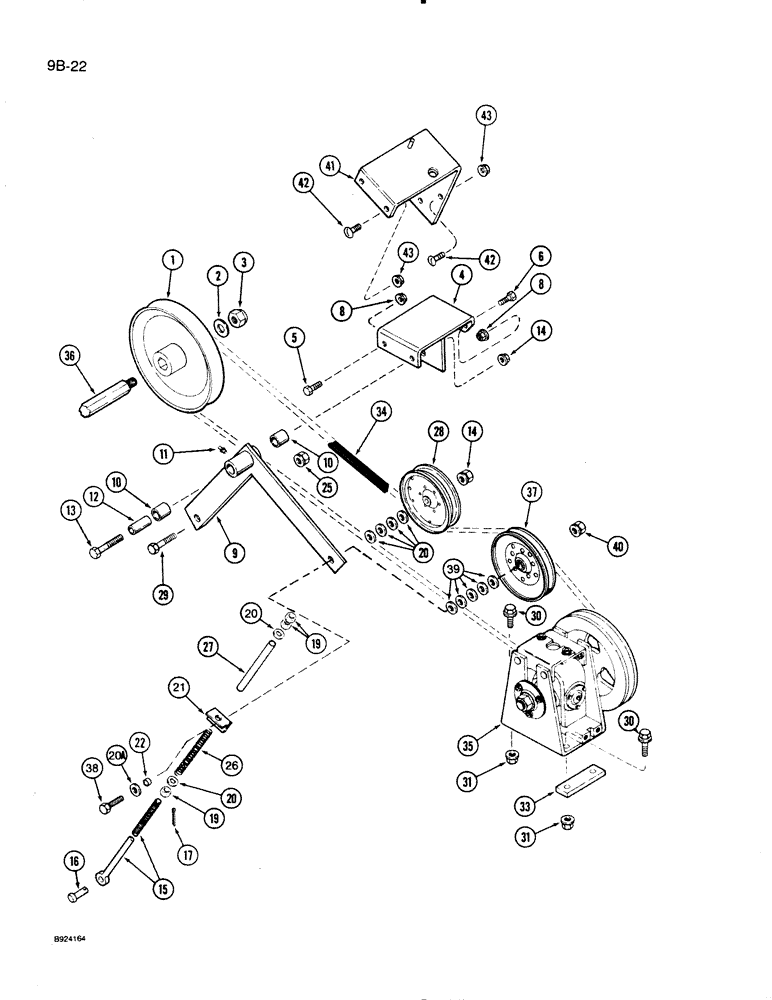

Запчасти Case IH 1020 (9B-22) - KNIFE DRIVE (58) - ATTACHMENTS/HEADERS

1

1989447C1

PULLEY

ASSEMBLY - drive, 245 mm OD, 460 RPM

1шт.

1

1316047C1

PULLEY

ASSEMBLY - drive, 267 mm OD, 500 RPM

1шт.

1

1316045C1

PULLEY

ASSEMBLY - drive, 318 mm OD, 600 RPM

1шт.

1

1989597C1

PULLEY

ASSEMBLY - drive, 213 mm EOD, 400 cpm

1шт.

2

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

- flat, 13/16 x 1-3/4 x 7/32 inch (Replaces 25557R1)

1шт.

3

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

4

1313881C1

SUPPORT

- knife drive idler

1шт.

5

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - lock, 3/8 NC x 1 inch

2шт.

6

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

2шт.

8

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

9

1320834C91

ARM

ASSEMBLY - knife idler

1шт.

10

289588R1

BUSHING

- idler arm

2шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

12

1320826C1

BUSHING,12.95mm ID x 18.9mm OD x 70mm L

- idler arm

1шт.

13

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

14

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange lock, 1/2 inch NC

2шт.

15

1316368C1

THREADED ROD

- eye, knife drive tightener

1шт.

16

439-1824

HEADED PIN,1/2" x 1 1/2", G2

PIN - clevis, 1/2 x 1-1/2 inch (replaces 22635R1 1-1/4 inch pin)

1шт.

17

432-1216

COTTER PIN,3/16" x 1"

1шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

20

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch (replaces 20601R1)

7шт.

20a

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/15 inch, hardened

1шт.

21

1326001C1

ANGLE

- spring support

1шт.

22

484158R1

WASHER

- spacer

1шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 195312C1) 1/2"-13, G5

1шт.

26

518926R1

SPRING

- knife drive idler

1шт.

If dealer is looking for one 8.5" long, with 18.5 coils, 1" ID, P/N is 1315247C1.

1шт.

27

1313255C1

TUBE,15.875 mm OD, 180 mm Length

- tightener spring

1шт.

28

1338456C1

IDLER

- idler, 6 inch OD (Replaces 566518R91)

1шт.

29

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch (replaces 413-844 2-3/4 inch bolt)

1шт.

30

414078C1

BOLT,Hex, 5/8" - 18 x 2", Gr 8

- hex flange, 5/8 NC x 2 inch, Grade 8

4шт.

31

414089C1

FLANGE NUT,5/8" - 18

NUT - hex flange lock, 5/8 inch NC, Grade 8

4шт.

33

1320172C1

BAR

- knife box front support

1шт.

34

1319245C1

V-BELT,22.33 mm W x 2748.69 mm L

Drive, 460 RPM, Replaces 1989679C1 22.33 mm W x 2748.69 mm L

1шт.

34

1319245C1

V-BELT,22.33 mm W x 2748.69 mm L

Drive, 500 RPM 22.33 mm W x 2748.69 mm L

1шт.

34

1316575C1

V-BELT,22.33 mm W x 2840.69 mm L

Drive, 600 RPM 22.33 mm W x 2840.69 mm L

1шт.

34

1989679C1

BELT,22.33 mm W x 2666.69 mm L

V-BELT , Drive, OC, 400 cpm 22.33 mm W x 2666.69 mm L

1шт.

35

REF

INSTRUCTION

BOX ASSEMBLY - knife drive (See Figure 9B-24)

1шт.

36

REF

INSTRUCTION

SHAFT - jackshaft (See Pages 9C-15 through 9C-21)

1шт.

37

161173C91

PULLEY

ASSEMBLY - idler, front, 5-3/4 inch OD

1шт.

38

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch (replaces 113-450 3-3/4 inch bolt)

1шт.

39

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch (Replaces 20601R1)

5шт.

40

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange lock, 1/2 inch

1шт.

41

1326760C1

SUPPORT

- idler

1шт.

42

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - truss head, 3/8 NC x 1 inch

6шт.

43

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

1300976C91

KIT

- knife drive, 3 inch knife only (Includes Ref. 1, P/N 1316045C1 pulley and Ref. 34, P/N 1316575C1 belt

1шт.
