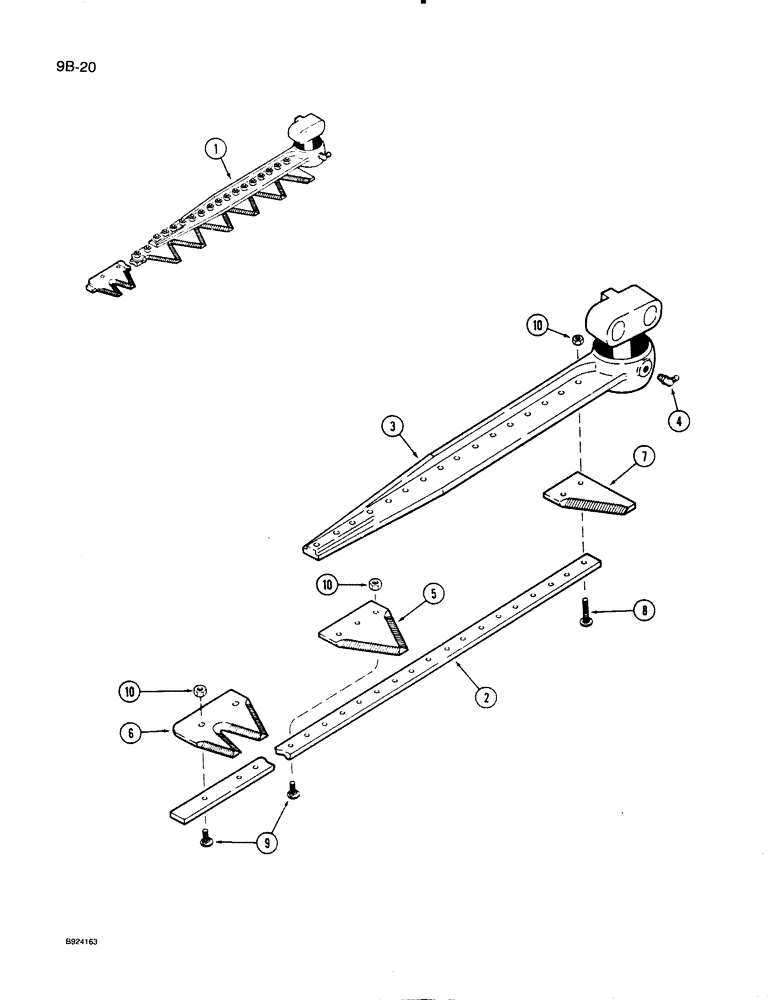

Запчасти Case IH 1020 (9B-20) - KNIFE ASSEMBLY - BOLTED, 3 INCH, COLUMBUS AUTO (58) - ATTACHMENTS/HEADERS

1

1307281C96

KNIFE ASSY

KNIFE ASSEMBLY - 15 foot (See Note A)(replaces 1307281C95)

1шт.

1

1326835C6

KNIFE ASSY

KNIFE ASSEMBLY - 16-1/2 foot (See Note A)(replaces 1326835C5)

1шт.

1

1307282C96

KNIFE ASSY

KNIFE ASSEMBLY - 17-1/2 foot (See Note A)(replaces 1307282C95)

1шт.

1

1307283C96

KNIFE ASSY

KNIFE ASSEMBLY - 20 foot (See Note A)(replaces 1307283C95)

1шт.

1

1307284C96

KNIFE ASSY

KNIFE ASSEMBLY - 22-1/2 foot (See Note A)(replaces 1307284C95)

1шт.

1

1307285C96

KNIFE ASSY

KNIFE ASSEMBLY - 25 foot (See Note A)(replaces 1307285C95)

1шт.

1

1307286C96

KNIFE ASSY

KNIFE ASSEMBLY - 30 foot (See Note A)(replaces 1307286C95)

1шт.

2

NSS

NOT SOLD SEPARAT

BAR - knife back

1шт.

3

1307297C92

KNIFE HEAD

HEAD ASSEMBLY - knife, no longer available, order 1316161C93 head on Figure 9B-16

1шт.

4

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Taper 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

5

826720C2

KNIFE SECTION

SECTION - knife, 3 inch overserrated

1шт.

6

148200C1

KNIFE SECTION

SECTION - knife, 3 inch, right end

1шт.

7

1316030C1

KNIFE SECTION

SECTION - knife, 3 inch, plain half

1шт.

8

1979166C1

BOLT

- truss head ribbed neck, No. 12-24 x 1-1/8 inch

16шт.

9

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

SCREW - truss head ribbed neck, No. 12-24 x 5/8 inch

1шт.

REF # 9 700705296 5/8 BOLTS,NUTS ,WASHERS

1шт.

10

1954816C1

LOCK NUT

NUT - hex cone, No. 12-24

1шт.
