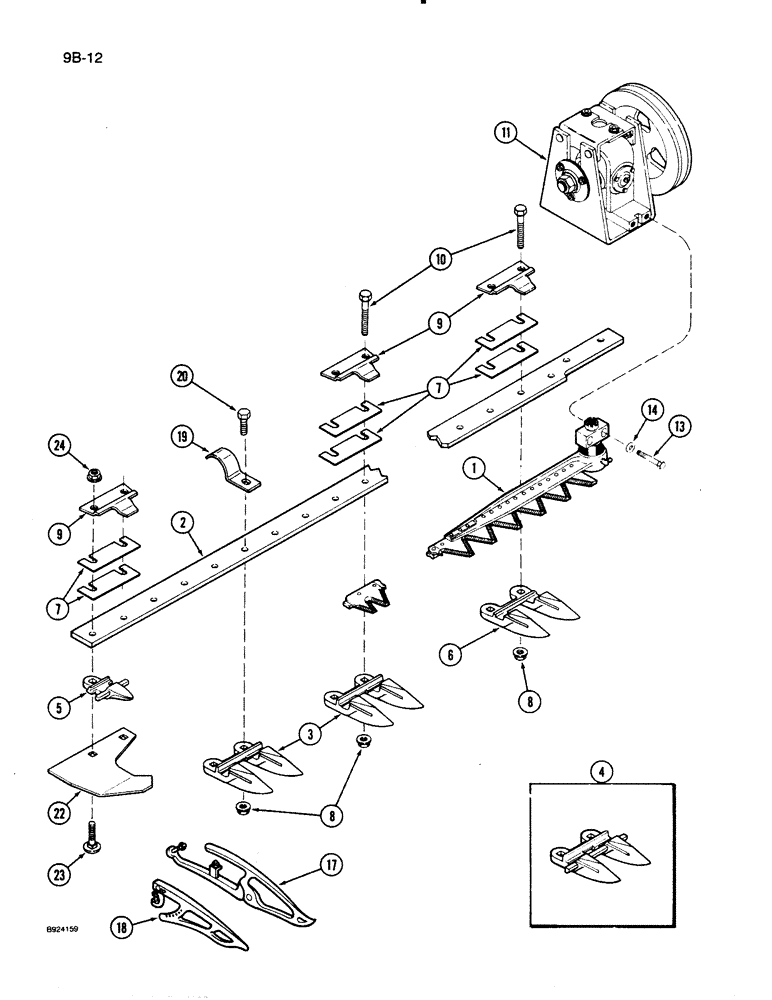

Запчасти Case IH 1020 (9B-12) - KNIFE GUARDS AND CUTTER BAR, 3 INCH (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
KNIFE ASSEMBLY - 3 inch (See Figures 9B-14 through 9B-20)
1шт.
2
1307412C1
CUTTERBAR
BAR - cutter (15 foot header)
1шт.
2
1326813C1
CUTTERBAR
BAR - cutter (16-1/2 foot header)
1шт.
2
1307413C1
CUTTERBAR
BAR - cutter (17-1/2 foot header)
1шт.
2
1307414C1
CUTTERBAR
BAR - cutter (20 foot header)
1шт.
2
1307415C1
CUTTERBAR
BAR - cutter (22-1/2 foot header)
1шт.
2
1307416C1
CUTTERBAR
BAR - cutter (25 foot header)
1шт.
2
1307417C1
CUTTERBAR
BAR - cutter (30 foot header)
1шт.
3
1307299C1
GUARD
- double
1шт.
4
613838R2
GUARD
- double, with trash bar (If equipped)
1шт.
Ref. 4 is a standard guard. Now there is a double heat-treated guard P/N 187350A1.
1шт.
5
1338269C1
GUARD
- stub (15, 20, 25 and 30 foot header)
2шт.
6
1326787C2
GUARD
- double left
3шт.
7
1316039C1
SHIM
- 0.016 inch
1шт.
8
1313463C1
FLANGE NUT
NUT - hex small flange, 7/16 inch NC
1шт.
9
1307280C1
KNIFE CLIP
CLIP - knife hold down (Used with riveted knife sections)
1шт.
9
1307280C3
KNIFE CLIP
CLIP - knife hold down (Replaces 1307280C3) (Used with bolted knife sections), new style has a higher arch
1шт.
10
113-323
BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5
1шт.
11
REF
INSTRUCTION
BOX ASSEMBLY - knive drive (See Figure 9B-24)
1шт.
14
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN
2шт.
17
909346R91
GRAIN LIFTER
LIFTER - grain (Replaces 608787R91)
1шт.
18
163417C91
GRAIN LIFTER
LIFTER - grain, heavy duty
1шт.
19
1313160C1
CLIP
- hold down
1шт.
20
113-311
BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5
1шт.
22
1326342C2
SUPPORT
- crop deflector
1шт.
23
434-732
CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 2", Gr 5
BOLT - round head square neck. 7/16 NC x 2 inch
2шт.
24
131-667
NUT,7/16"-14, GB
NUT - hex lock, 7/16 inch NC
2шт.
1957435C1
DEFLECTOR
L.H.
1шт.
