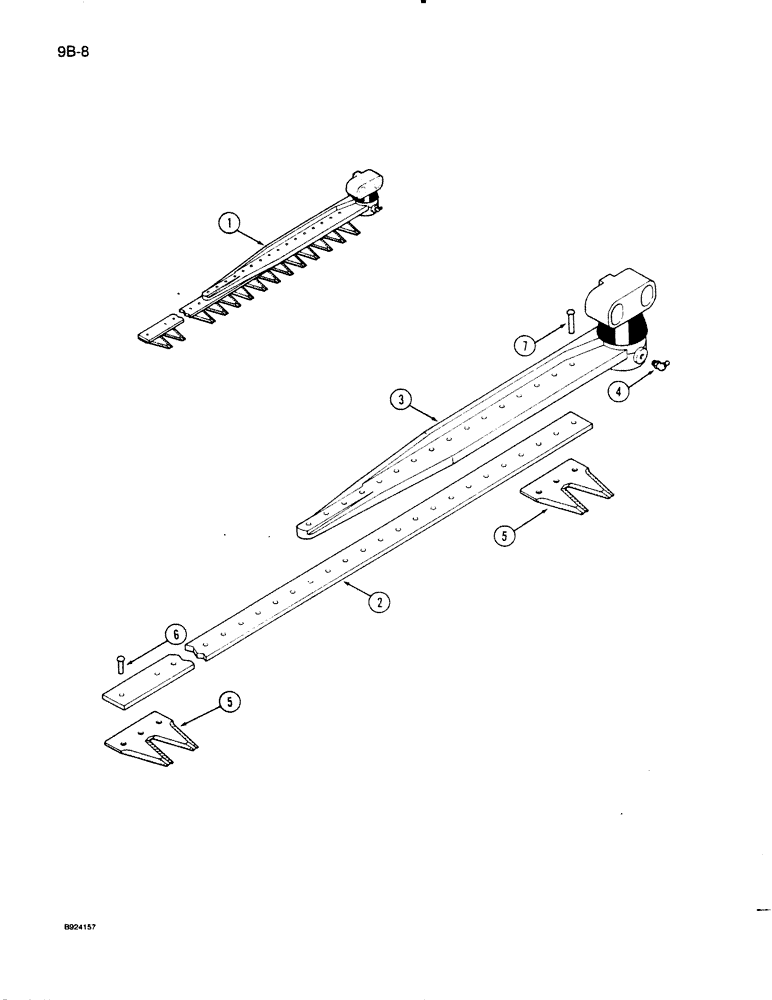

Запчасти Case IH 1020 (9B-08) - KNIFE ASSEMBLY - RIVETED, 1-1/2 INCH, COLUMBUS AUTO (58) - ATTACHMENTS/HEADERS

1

1307165C91

KNIFE ASSY

KNIFE ASSEMBLY - 15 foot

1шт.

1

1326833C1

KNIFE ASSY

KNIFE ASSEMBLY - 16-1/2 foot

1шт.

1

1307166C91

KNIFE

ASSEMBLY - 17-1/2 foot

1шт.

1

1307167C91

KNIFE ASSY

KNIFE ASSEMBLY - 20 foot

1шт.

1

1307168C91

KNIFE ASSY

KNIFE ASSEMBLY - 22-1/2 foot, no longer available, order 1970442C1 knife on Figure 9B-10

1шт.

1

1307169C91

KNIFE ASSY

KNIFE ASSEMBLY - 25 foot, no longer available, order 1970402C1 knife on Figure 9B-10

1шт.

1

1307170C91

KNIFE ASSY

KNIFE ASSEMBLY - 30 foot, no longer available, order 1970404C3 knife on Figure 9B-10

1шт.

2

NSS

NOT SOLD SEPARAT

BAR - knife back

1шт.

3

1307301C91

CYLINDER HEAD

HEAD ASSEMBLY - knife (Alternate part is 1313795C91, See Figure 9B-04)

1шт.

4

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Taper 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

5

1305239C1

KNIFE SECTION

SECTION - knife, 1-1/2 inch overserrated, rivet type

1шт.

6

991059R91

RIVET

- oval head, No. 6 x 5/8 inch (Package of 302)

1шт.

6

991014R91

KIT

RIVET - oval head, No. 5-1/2 x 9/16 inch (Package of 130)

1шт.

7

2195

RIVET

- oval head, No. 5-1/2 x 1-1/8 inch (Package of 75)

16шт.
