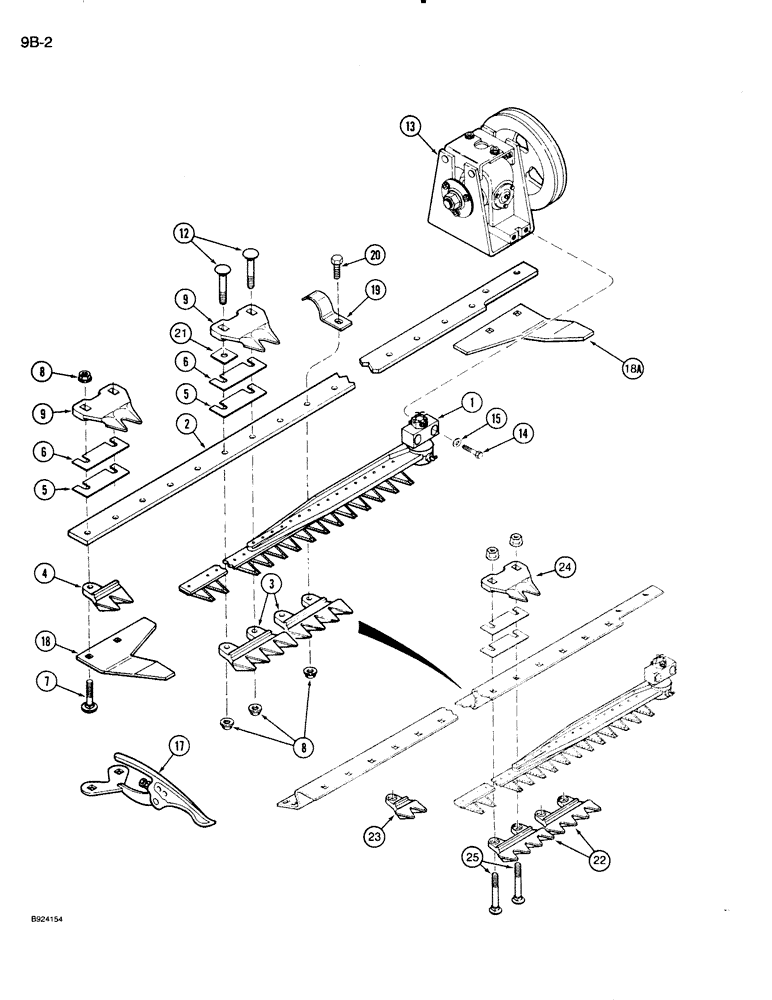

Запчасти Case IH 1020 (9B-02) - KNIFE GUARDS AND CUTTER BAR, 1-1/2 INCH (58) - ATTACHMENTS/HEADERS

1

REF

INSTRUCTION

KNIFE ASSEMBLY - 1-1/2 inch (See Pages 9B-5 through 9B-11)

1шт.

2

1307412C1

CUTTERBAR

BAR - cutter (15 foot header)

1шт.

2

1326813C1

CUTTERBAR

BAR - cutter (16-1/2 foot header)

1шт.

2

1307413C1

CUTTERBAR

BAR - cutter (17-1/2 foot header)

1шт.

2

1307414C1

CUTTERBAR

BAR - cutter (20 foot header)

1шт.

2

1307415C1

CUTTERBAR

BAR - cutter (22-1/2 foot header)

1шт.

2

1307416C1

CUTTERBAR

BAR - cutter (25 foot header)

1шт.

2

1307417C1

CUTTERBAR

BAR - cutter (30 foot header)

1шт.

3

1305195C1

SHIELD

GUARD - 4 point, V-shaped indents, no longer used, order 1989552C1 guard, item 22

1шт.

4

1305477C1

GUARD

- 2 point, V-shaped indents, left (15, 20, 25 and 30 foot header), no longer available, order 100999A1 guard, item 23

1шт.

4

1305478C1

GUARD

- 2 point, right (15, 20, 25 and 30 foot header), no longer available, order 101000A1 guard, item 23

1шт.

5

1316040C1

SHIM,38.1mm OD x 2.1mm Thk

- 0.067 inch

1шт.

6

1316039C1

SHIM

- 0.016 inch

1шт.

7

434-736

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

BOLT - carriage, 7/16 NC x 2-1/4 inch, if used

2шт.

7

434-740

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 2 1/2", Gr 5

BOLT - carriage, 7/16 NC x 2-1/2 inch, if used

2шт.

8

1313463C1

FLANGE NUT

NUT - hex small flange, 7/16 inch NC

1шт.

9

1320746C2

CLAMP

CLIP - knife hold down (Used with riveted knife sections) (Part number 1320746C1 or 1320746C2 stamped on part)

1шт.

9

1320746C3

ANCHOR

CLIP - knife hold down (Used with bolted knife sections) (Part number stamped on part), used with items 3 and 4

1шт.

12

434-740

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 2 1/2", Gr 5

BOLT - carriage, 7/16 NC x 2-1/2 inch, if used

1шт.

12

433-736

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

BOLT - carriage, 7/16 NC x 2-1/4 inch, if used

1шт.

13

REF

INSTRUCTION

BOX ASSEMBLY - knife drive (See Figure 9B-24)

1шт.

14

326-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

2шт.

15

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

17

1326538C91

GRAIN LIFTER

LIFTER - grain

1шт.

18

1316688C2

SUPPORT

- crop deflector, right

1шт.

18a

1957435C1

DEFLECTOR

SUPPORT - crop deflector, left

1шт.

19

1313160C1

CLIP

- hold down

1шт.

20

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

If used Hex, 7/16"-14 x 1 1/2", G5

1шт.

20

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

BOLT - carriage, 7/16 NC x 1-1/2 inch, if used

1шт.

20

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

BOLT - carriage, 7/16 NC x 1-3/4 inch, if used

1шт.

21

104155A1

SHIM,11.9mm ID x 38.1mm OD x 2.95mm Thk

- .093 inch, hold down, clip

1шт.

22

1989552C1

GUARD

- 4 point, U-shaped indents

1шт.

23

100999A1

GUARD

- 2 point, U-shaped indents, left (15, 20, 25 and 30 foot headers)

1шт.

23

101000A1

GUARD

- 2 point, U-shaped indents, right (15, 20, 25 and 30 foot headers)

1шт.

24

101001A1

GUARD

CLIP - knife hold down (used with bolted knife sections) (part number stamped on part), used with items 22 and 23

1шт.

25

433-736

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

BOLT - carriage, 7/16 NC x 2-1/4 inch

1шт.
