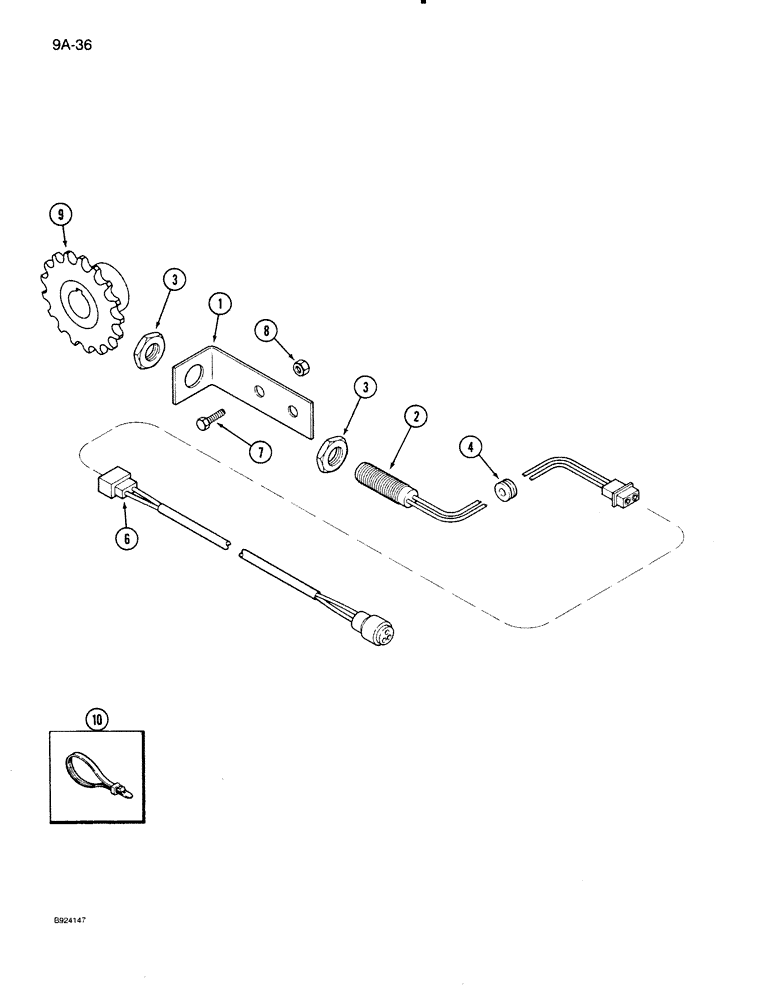

Запчасти Case IH 1020 (9A-36) - REEL SPEED TO GROUND SPEED PICKUP, 1420, 1440, 1460 AND 1480 COMBINE (58) - ATTACHMENTS/HEADERS

1

1326561C1

SUPPORT

- reluctance pickup

1шт.

2

1301241C1

SENSOR

CONVERTOR - transducer

1шт.

3

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NF (Replaces 84116C1)

2шт.

4

140711

GROMMET,1/4" ID x 5/8" x .188", Str Cut

- rubber diagonal cut, 1/4 x 5/8 x 7/16 inch

1шт.

6

1301584C1

WIRE HARNESS

HARNESS ASSEMBLY - reel speed pickup

1шт.

7

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

2шт.

8

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

9

REF

INSTRUCTION

SPROCKET ASSEMBLY - drive (See Page 9A-33)

1шт.

10

533959R1

CABLE TIE,.135" x 11"

STRAP - retaining

6шт.
