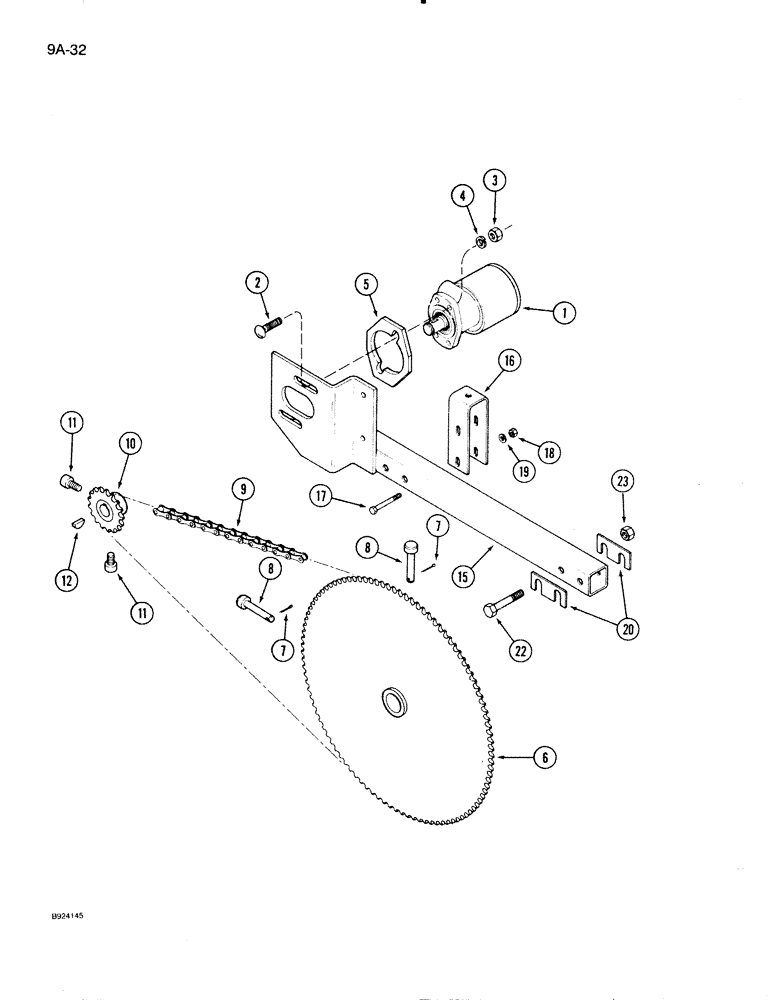

Запчасти Case IH 1020 (9A-32) - REEL DRIVE (58) - ATTACHMENTS/HEADERS

1

REF

INSTRUCTION

MOTOR ASSEMBLY - hydraulic (See Figure 8-20)

1шт.

2

111-539

CARRIAGE BOLT,Short NK, 1/2"-13 x 2", G5

BOLT - round head square neck, 1/2 NC x 2 inch

2шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

5

1308371C1

SHIM

- motor

1шт.

6

1979708C1

SPROCKET

ASSEMBLY - driven, 96 tooth (Replaces 185517C1)

1шт.

7

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

2шт.

8

16883D

CLEVIS PIN,7/16" x 2.781"

PIN - clevis, 7/16 x 25/32 inch

2шт.

9

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - reel drive (Use 79 links from bulk chain 569089R91, and 1 connecting link 587372R91)

1шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - 10 foot roll

1шт.

587372R91

CONNECTING LINK

LINK - chain, connecting

1шт.

10

1305993C2

SPROCKET

ASSEMBLY - 59.5 RPM reel drive, 17 tooth

1шт.

10

1316618C1

SPROCKET

ASSEMBLY - 73.5 RPM reel drive, 21 tooth, see note

1шт.

10

1979794C1

SPROCKET

ASSEMBLY - reel drive, 13 tooth, optional, see note

1шт.

11

484-1386

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW - set, headless hex socket, 3/8 NF x 3/8 inch

2шт.

12

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

15

1308361C1

SUPPORT

ASSEMBLY - reel drive

1шт.

16

1308355C1

YOKE

- support

1шт.

17

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch

2шт.

18

188472C1

FLANGE NUT,Flg, 1/4"-20

NUT - hex prevailing torque lock, 1/4 inch NC

2шт.

19

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

20

1316478C1

BAR

SHIM - support

2шт.

22

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

2шт.

23

9413967

LOCK NUT,1/2"-13, GB

NUT - hex prevailing torque lock, 1/2 inch NC

2шт.
