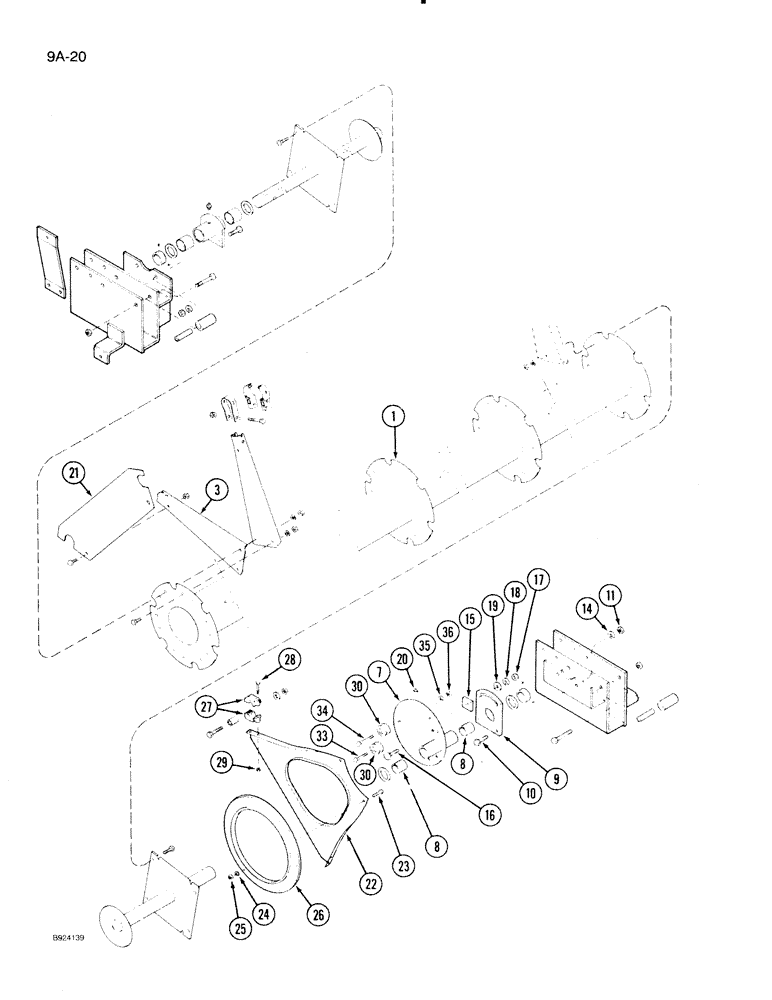

Запчасти Case IH 1020 (9A-20) - 6 BAT REEL, SINGLE ECCENTRIC, PLASTIC TINES, 15, 16-1/2, 17-1/2 AND 20 FOOT HEADER (HART-CARTER) (58) - ATTACHMENTS/HEADERS

1

1989399C1

SHAFT

- center tube (15 foot header)

1шт.

1

1989400C1

SHAFT

- center tube (16-1/2 foot header)

1шт.

1

1989401C1

SHAFT

- center tube (17-1/2 foot header) (Replaces 1989404C1)

1шт.

1

1994811C1

SHAFT

- center tube (20 foot header)

1шт.

3

1347083C1

ARM

- reel

1шт.

7

1326653C91

HOUSING

ASSEMBLY - eccentric roller

1шт.

8

167666C1

BUSHING

- roller frame

2шт.

9

827703C1

BAR

- slot adjusting

1шт.

10

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

2шт.

11

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.

14

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

15

953254R1

SPACER

SPACER - slot adjusting

1шт.

16

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-3/4 inch

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

20

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING - grease, short 90 degree, 1/8-27 PT

1шт.

21

1989433C1

SHIELD

- end

6шт.

22

1326616C1

SHIELD

- eccentric

6шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

25

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

26

167661C1

RING,271.65mm ID x 320.68mm OD

- control

1шт.

27

1326656C1

BEARING

BUSHING - reel arm

12шт.

28

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

12шт.

29

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex prevailing torque lock, 1/4 inch NC

12шт.

30

598242R91

ROLLER BEARING,0.376" ID x 2.25" OD x 1"

BEARING - roller ball

3шт.

33

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

34

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

35

492-11038

LOCK WASHER,3/8"

3шт.

36

425-106

NUT,3/8"-16, Cl 5

3шт.
