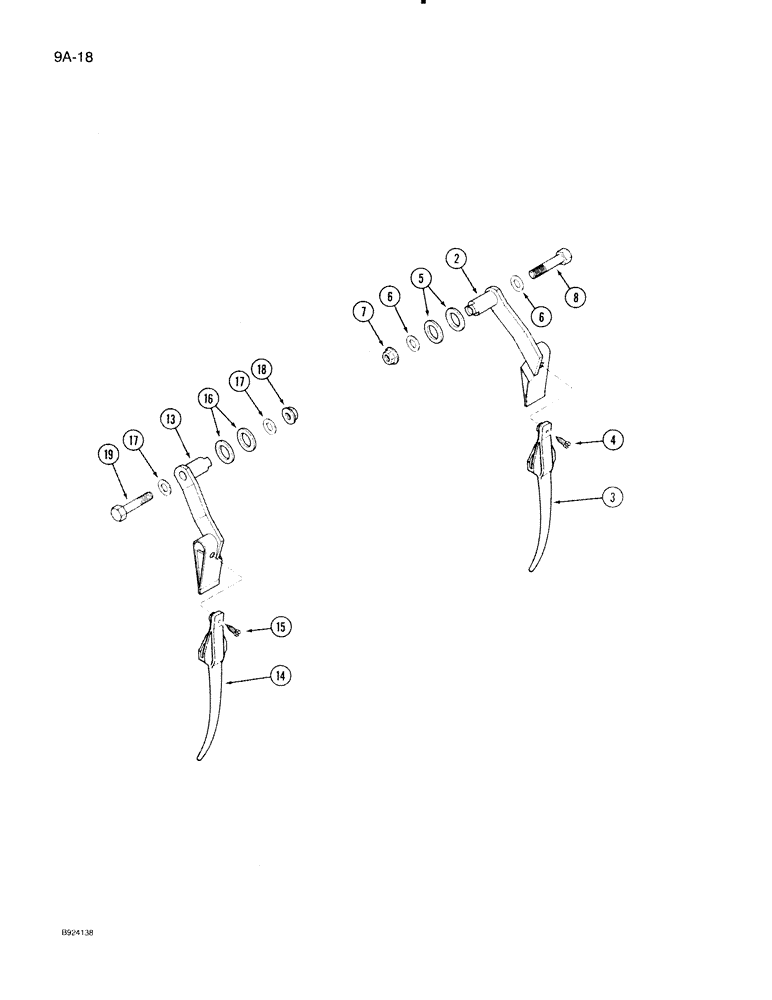

Запчасти Case IH 1020 (9A-18) - AUXILIARY PICKUP TINES, PLASTIC (58) - ATTACHMENTS/HEADERS

1316199C91

KIT

- left auxiliary pickup tine

6шт.

2

NSS

NOT SOLD SEPARAT

SUPPORT ASSEMBLY - left

1шт.

3

NSS

NOT SOLD SEPARAT

TINE - plastic

1шт.

Part of tine kit P/N 1979845C1

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - hex slotted tapping, No. 6 x 5/8 inch

1шт.

Part of tine kit P/N 1979845C1

1шт.

5

21762R1

WASHER

- flat, 29/32 x 1-3/8 x 1/8 inch

2шт.

6

25846R1

WASHER

- flat, 15/32 x 59/64 x 3/64 inch

2шт.

7

1313463C1

FLANGE NUT

NUT - hex small flange lock, 7/16 inch NC

1шт.

8

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 7/16 NC x 2-1/2 inch

1шт.

1316200C91

KIT

- right auxiliary pickup tine

6шт.

13

NSS

NOT SOLD SEPARAT

SUPPORT ASSEMBLY - right

1шт.

14

NSS

NOT SOLD SEPARAT

TINE - plastic

1шт.

Part of tine kit P/N 1979845C1

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW - hex slotted tapping, No. 6 x 5/8 inch

1шт.

Part of tine kit P/N 1979845C1

1шт.

16

21762R1

WASHER

- flat, 29/32 x 1-3/8 x 1/8 inch

2шт.

17

25845R1

BOLT,Hex, 1" - 8 x 2 1/2", Gr 8

WASHER - flat, 15/32 x 59/64 x 3/64 inch

2шт.

18

1313463C1

FLANGE NUT

NUT - hex small flange lock, 7/16 inch NC

1шт.

19

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 7/16 NC x 2-1/2 inch

1шт.

1979845C1

KIT

- tine, Package of 10 with screws, Replaces 1326469C1, Includes: Ref. 3, 4, 14 and 15

1шт.
