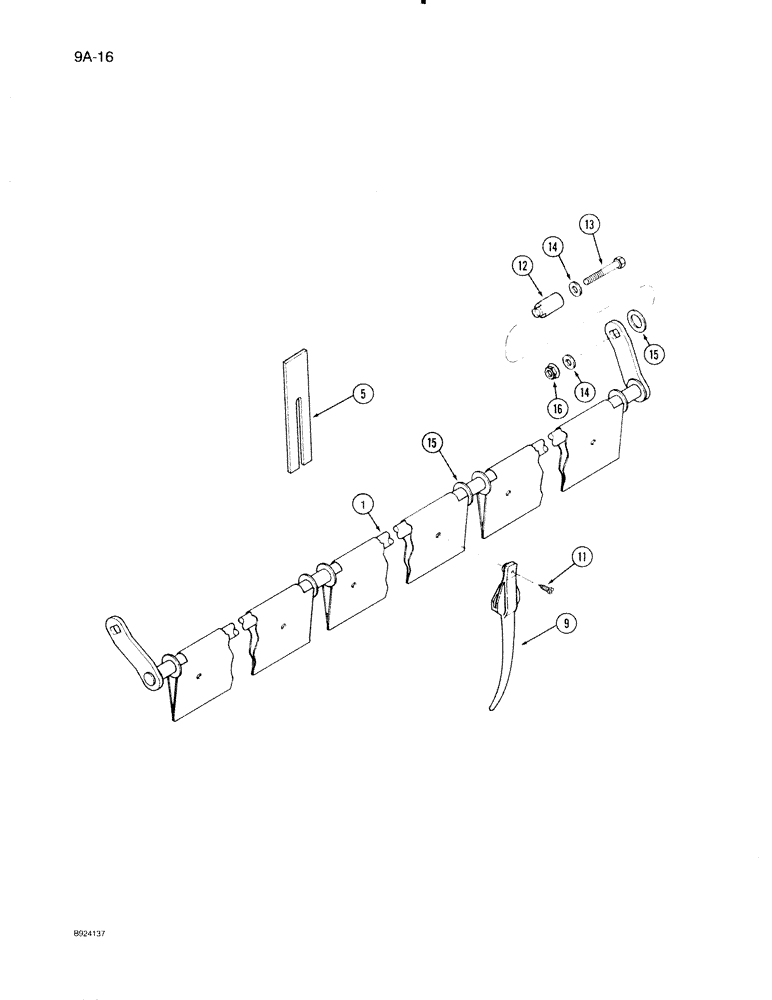

Запчасти Case IH 1020 (9A-16) - BAT AND FRONT MOUNTED PLASTIC TINES (58) - ATTACHMENTS/HEADERS

1

1326375C1

SHAFT

- bat, without tines (15 foot header)

6шт.

1

1326846C1

SHAFT

- bat, without tines (16-1/2 foot header)

6шт.

1

1326377C1

SHAFT

- bat, without tines (17-1/2 foot header)

6шт.

1

1326379C1

SHAFT

- bat, without tines (20 foot header)

6шт.

1

1326381C1

SHAFT

- bat, without tines (22-1/2 foot header)

6шт.

1

1326383C1

SHAFT

- bat, without tines (25 foot header)

6шт.

1

1326385C1

SHAFT

- bat, without tines (30 foot header)

6шт.

5

1316507C1

TOOL

- tine installation

1шт.

1979845C1

KIT

- tine and screw (package of 10)

1шт.

9

NSS

NOT SOLD SEPARAT

TINE - plastic (Order tine kit)

10шт.

11

NSS

NOT SOLD SEPARAT

SCREW - hex slotted tapping, No. 6 x 5/8 inch

10шт.

12

1313301C1

BUSHING

- reel arm outboard

12шт.

13

113-336

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

- hex, 7/16 NC x 2-1/4 inch

12шт.

14

25846R1

WASHER

- flat, 15/32 x 59/64 x 3/64 inch

24шт.

15

21762R1

WASHER

- flat, 29/32 x 1-3/8 x 1/8 inch

24шт.

16

1313463C1

FLANGE NUT

NUT - hex small flange lock, 7/16 inch NC

12шт.
