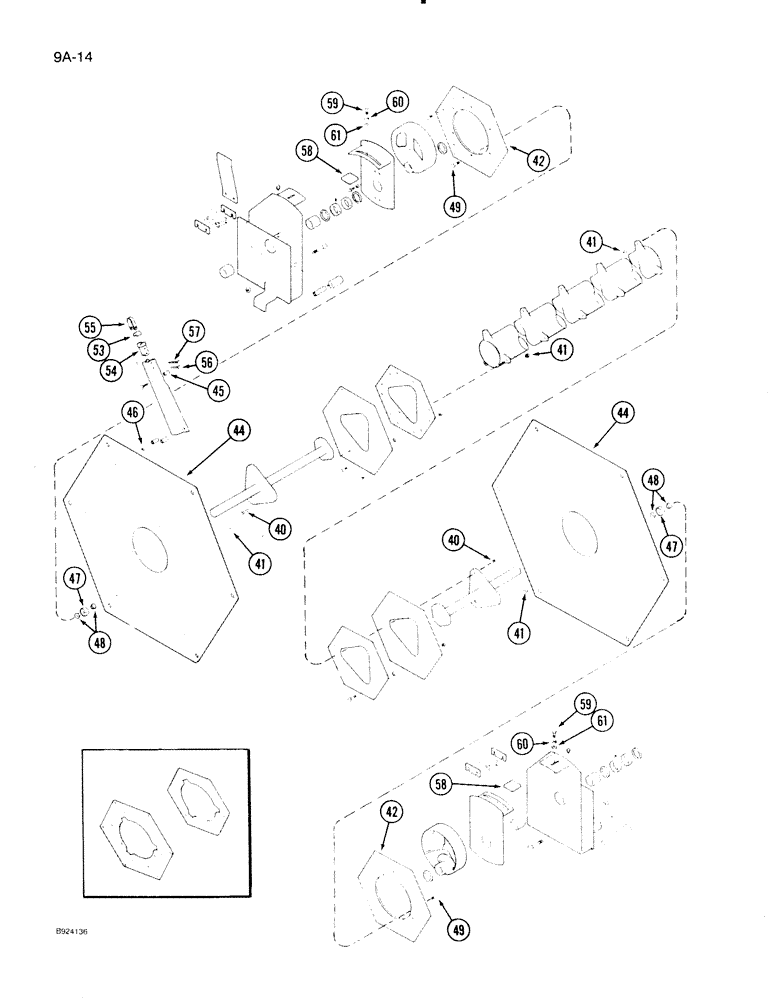

Запчасти Case IH 1020 (9A-14) - 6 BAT REEL, FRONT MOUNTED PLASTIC TINES (58) - ATTACHMENTS/HEADERS

40

113-323

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

1шт.

41

131-667

NUT,7/16"-14, GB

NUT - hex prevailing torque lock, 7/16 inch NC

1шт.

42

1313317C1

FLANGE

- eccentric end spider

2шт.

44

1326535C1

SHIELD

- eccentric plate

2шт.

45

364002R1

SPACER,3/8" Pipe x 1"

- pipe, 3/8 x 1 inch

12шт.

46

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

12шт.

47

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

Assy - Eccentric roller

12шт.

48

1313323C1

WASHER

- bearing

24шт.

49

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

12шт.

1313462C1

KIT

- batshaft bearing (15, 16-1/2, 17-1/2 and 20 foot header)

36шт.

1313462C1

KIT

- batshaft bearing (22-1/2, 25 and 30 foot header)

42шт.

53

NSS

NOT SOLD SEPARAT

CAP - bearing

1шт.

54

NSS

NOT SOLD SEPARAT

BEARING - batshaft

1шт.

55

1313315C1

CLAMP

CLEVIS - bearing (15, 16-1/2, 17-1/2 and 20 foot header)

36шт.

55

1313315C1

CLAMP

CLEVIS - bearing (22-1/2, 25 and 30 foot header)

42шт.

56

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

57

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

58

1316156C1

BLOCK

- lock

2шт.

59

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

60

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

61

25710R1

WASHER

- flat, hardened

2шт.
