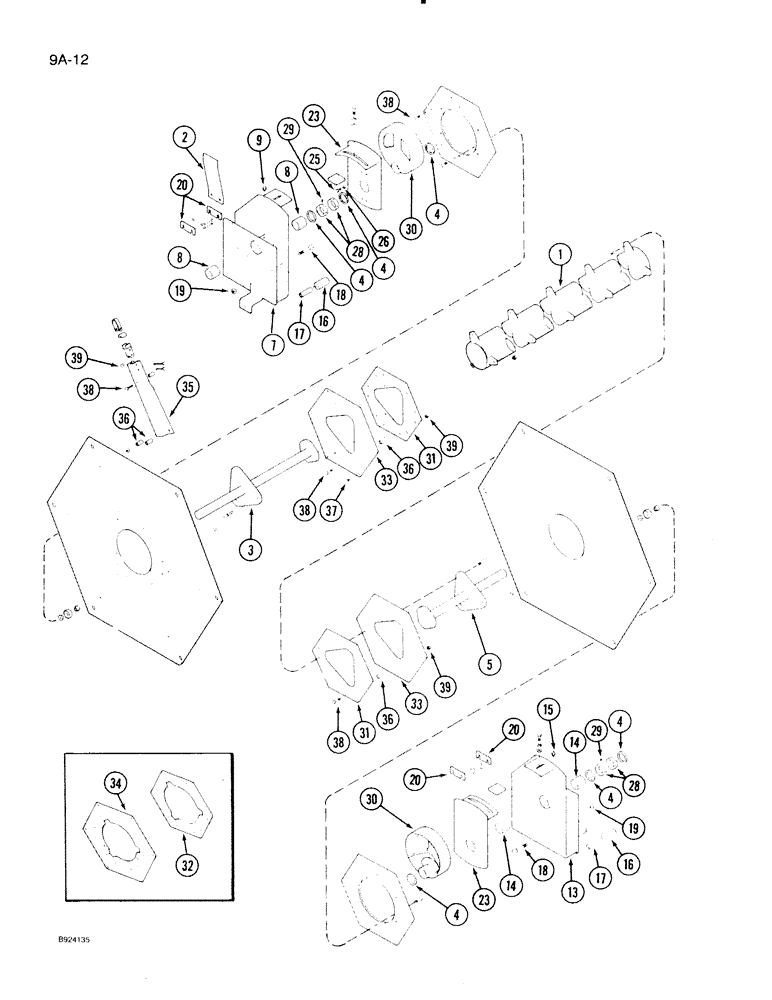

Запчасти Case IH 1020 (9A-12) - 6 BAT REEL, FRONT MOUNTED PLASTIC TINES (58) - ATTACHMENTS/HEADERS

1

1316628C1

TUBE,166" Length

ASSEMBLY - center (15 foot header)

1шт.

1

1326844C1

SUPPORT TUBE

TUBE ASSEMBLY - center (16-1/2 foot header)

1шт.

1

1316629C1

TUBE

ASSEMBLY - center (17-1/2 foot header)

1шт.

1

1316630C1

TUBE,226" Length

ASSEMBLY - center (20 foot header)

1шт.

1

1316631C1

TUBE,256" Length

ASSEMBLY - center (22-1/2 foot header)

1шт.

1

1316632C1

TUBE,256" Length

ASSEMBLY - center (25 foot header)

1шт.

1

1316633C1

TUBE,345" Length

ASSEMBLY - center (30 foot header)

1шт.

2

1316465C1

BRACKET

SUPPORT - shield

1шт.

3

1316643C1

SHAFT

- drive bat (15, 16-1/2, 17-1/2 and 20 foot header)

1шт.

3

1316644C1

SHAFT

- drive bat (22-1/2 and 25 foot header)

1шт.

3

1316645C1

SHAFT

- drive bat (30 foot header)

1шт.

4

1316158C1

THRUST WASHER

WASHER - thrust

6шт.

5

1316650C1

SHAFT

- eccentric end (15, 16-1/2, 17-1/2 and 20 foot header)

1шт.

5

1316651C1

SHAFT

- eccentric end (22-1/2 and 25 foot header)

1шт.

5

1316652C1

SHAFT

- eccentric end (30 foot header)

1шт.

1316474C91

SUPPORT

ASSEMBLY - drive shaft right

1шт.

7

NSS

NOT SOLD SEPARAT

SUPPORT - drive shaft

1шт.

8

1313304C1

BUSHING

- support

2шт.

9

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 45 degree short, 1/8-27 inch PT

1шт.

1316475C91

SUPPORT

ASSEMBLY - eccentric shaft left

1шт.

13

NSS

NOT SOLD SEPARAT

SUPPORT - shaft

1шт.

14

1313304C1

BUSHING

- support

2шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8-27 inch PT

1шт.

16

1316328C1

SHIFTER ROLLER

BUSHING - reel support

4шт.

17

23885K

SPACER,3/4" Tube x 2 1/16"

- 3/4 x 2-1/16 inch

4шт.

18

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

4шт.

19

9413967

LOCK NUT,1/2"-13, GB

NUT - hex prevailing torque lock, 1/2 inch NC

4шт.

20

1316478C1

BAR

SPACER - reel arm support

4шт.

23

1316153C1

SUPPORT

ASSEMBLY - pitch control

2шт.

25

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

- 7/16 NC x 1 inch

2шт.

26

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

28

1316157C1

COLLAR

ASSEMBLY - locking, with set screw

4шт.

29

426374

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - set, headless hex socket, 3/8 NC x 1/2 inch

1шт.

30

1316654C1

ECCENTRIC

2шт.

31

1313333C1

FLANGE

SPIDER - small (15, 16-1/2, 17-1/2 and 20 foot header)

4шт.

32

1313334C1

FLANGE

SPIDER - small (22-1/2, 25 and 30 foot header)

5шт.

33

1313332C1

SPIDER

- large (15, 16-1/2, 17-1/2 and 20 foot header)

4шт.

34

1313336C1

FLANGE

SPIDER - large (22-1/2, 25 and 30 foot header)

5шт.

35

1313319C1

SUPPORT

- arm (15, 16-1/2, 17-1/2 and 20 foot header)

36шт.

35

1313319C1

SUPPORT

- arm (22-1/2, 25 and 30 foot header)

42шт.

36

371108R1

SPACER,3/8" Pipe x .844"

- pipe, 3/8 x 27/32 inch

1шт.

37

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

38

113-176

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex, 5/16 NC x 1-3/8 inch

1шт.

39

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.
