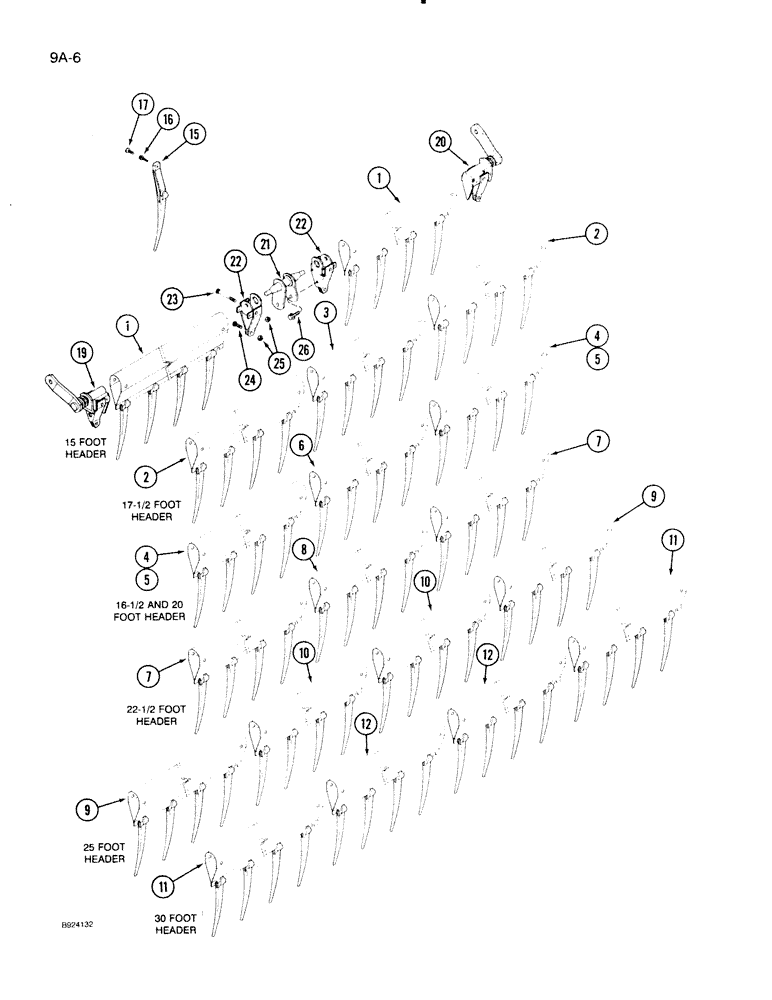

Запчасти Case IH 1020 (9A-06) - BAT ASSEMBLY WITH REAR MOUNTED PLASTIC TINES (58) - ATTACHMENTS/HEADERS

1

1970577C1

BAT

ASSEMBLY - 80-1/2 inch, with plastic tines (15 foot header)

12шт.

2

1970574C1

BAT

ASSEMBLY - 64-3/4 inch, with plastic tines (17-1/2 foot header)

12шт.

3

1970572C1

BAT

ASSEMBLY - 58-3/4 inch, with plastic tines (17-1/2 foot header)

6шт.

4

1970571C1

BAT

ASSEMBLY - 55-3/4 inch, with plastic tines (16-1/2 foot header)

12шт.

5

1970576C1

BAT

ASSEMBLY - 76-3/4 inch, with plastic tines (20 foot header)

12шт.

6

1970574C1

BAT

ASSEMBLY - 64-3/4 inch, with plastic tines (16-1/2 and 20 foot header)

6шт.

7

1970578C1

BAT

ASSEMBLY - 81-3/4 inch, with plastic tines (22-1/2 foot header)

12шт.

8

1970580C1

BAT

ASSEMBLY - 84-3/4 inch, with plastic tines (22-1/2 foot header)

6шт.

9

1970573C1

BAT

ASSEMBLY - 64 inch, with plastic tines (25 foot header)

12шт.

10

1970575C1

BAT

ASSEMBLY - 73-3/4 inch, with plastic tines (25 foot header)

12шт.

11

1970579C1

BAT

ASSEMBLY - 83 inch, with plastic tines (30 foot header)

12шт.

12

1970580C1

BAT

ASSEMBLY - 84-3/4 inch, with plastic tines (30 foot header)

12шт.

1970586C1

KIT

- plastic tine

1шт.

15

NSS

NOT SOLD SEPARAT

TINE - plastic (Order tine kit)

10шт.

#15 - TINE IS HART CARTER STYLE-PLASTIC.

1шт.

16

1970588C1

SCREW

- hex washer head special, No. 8-32 x 3/4 inch

5шт.

17

263-10512

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/4"

SCREW - pan head slotted, self-tapping, No. 10 x 3/4 inch (See Note A)

5шт.

17

1970587C1

SCREW

- pan head cross recessed special, No. 10 x 3/4 inch (Package of 50) (See Note A)

1шт.

19

1970581C1

BRACKET

- pivot, right end

6шт.

20

1970582C1

BRACKET

- pivot, left end

6шт.

21

1970583C1

BRACKET

- pivot, center (15 foot header)

6шт.

21

1970583C1

BRACKET

- pivot, center (16-1/2, 17-1/2, 20 and 22-1/2 foot header)

12шт.

21

1970583C1

BRACKET

- pivot, center (25 and 30 foot header)

18шт.

22

1970584C1

BRACKET

RETAINER - pivot bracket (15 foot header)

12шт.

22

1970584C1

BRACKET

RETAINER - pivot bracket (16-1/2, 17-1/2, 20 and 22-1/2 foot header)

24шт.

22

1970584C1

BRACKET

RETAINER - pivot bracket (25 and 30 foot header)

36шт.

23

1338636C1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

BOLT - round head square neck, 5/16 NC x 2-1/2 inch

1шт.

24

111-260

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT - round head square neck, 5/16 NC x 5/8 inch

1шт.

25

472146R1

LOCK NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

1шт.

26

1338637C1

FLANGE BOLT,Hex Serr, 5/16" - 24 x 5/8"

BOLT - hex flange lock, 5/16 NF x 5/8 inch

1шт.
