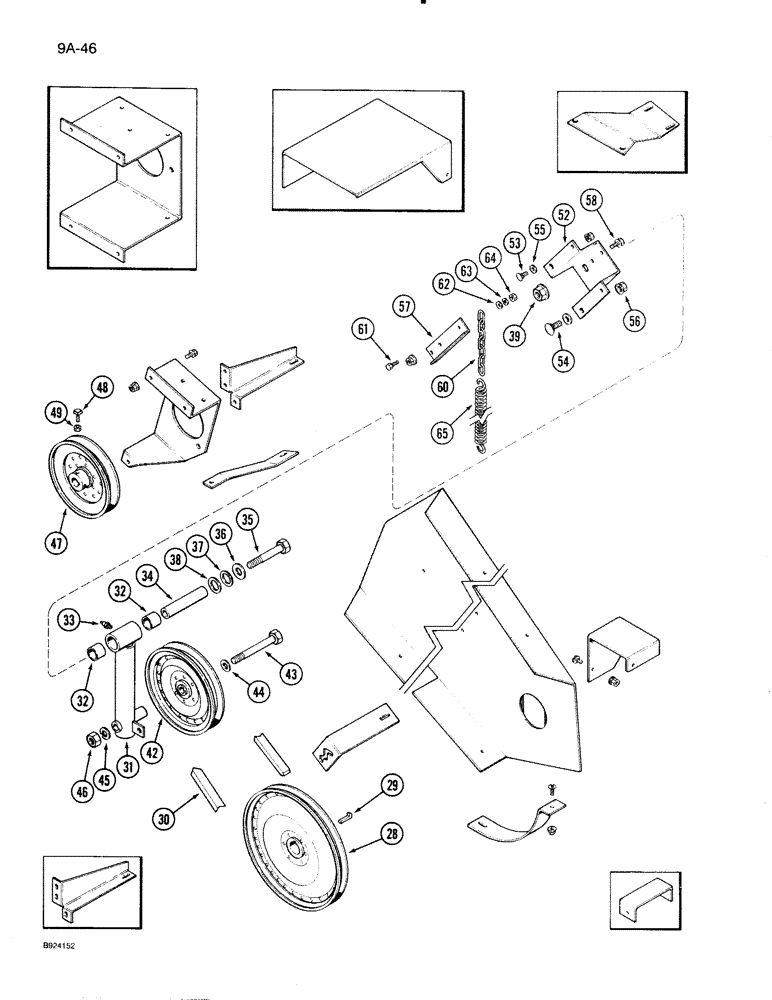

Запчасти Case IH 1020 (9A-46) - REEL HYDRAULIC DRIVE CONTROL ATTACHMENT, 1420E, 1440E, 1460E COMBINE (35) - HYDRAULIC SYSTEMS

28

176562C2

PULLEY

- feeder jackshaft pump drive

1шт.

29

Q1497

KEY,Gib, 3/8" Sq x 2"

- tapered, 3/8 x 2 inch

1шт.

30

197414C2

BELT,22.33 mm W x 3706.69 mm L

V-BELT , Reel drive (1420E, 1460E and 1480E combine with 54-1/2 inch feeder) 22.33 mm W x 3706.69 mm L

1шт.

30

197411C1

V-BELT,132" L

131.69" L, Reel drive (1440E and 1460E combine with 47 inch feeder)

1шт.

31

195528C92

ARM

LEVER ASSEMBLY - tightener arm

1шт.

32

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

- tightener arm

2шт.

33

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

34

198410C1

SPACER

- tightener arm

1шт.

35

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

1шт.

36

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

37

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

1шт.

38

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 3/32 inch

1шт.

39

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

1шт.

42

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

- belt idler

1шт.

43

424-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 2

- hex, 5/8 NC x 5 inch

1шт.

44

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch (Replaces 21471R1)

1шт.

45

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

46

425-1010

NUT,5/8"-11, G5

1шт.

47

193252C1

PULLEY

ASSY, pump driven, 7.5" O.D., 7/8" I.D.

1шт.

48

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 inch NC x 3/4 inch, cup point

1шт.

49

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC (Replaces 25932R1)

1шт.

52

187876C1

SUPPORT

- pivot anchor (1420E combine)

1шт.

52

195526C1

SUPPORT

- pivot anchor (1440E and 1460E combine)

1шт.

52

195527C1

SUPPORT

- pivot anchor (1480E combine)

1шт.

53

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

54

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

1шт.

55

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

1шт.

56

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

1шт.

57

195531C1

SUPPORT

- spring anchor

1шт.

58

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

60

167570C1

CHAIN,203.2mm L

- reel drive idler pulley arm

1шт.

61

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

62

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

63

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

64

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

65

NLS

NO LONGER SERVICED

- reel drive idler pulley arm

1шт.
