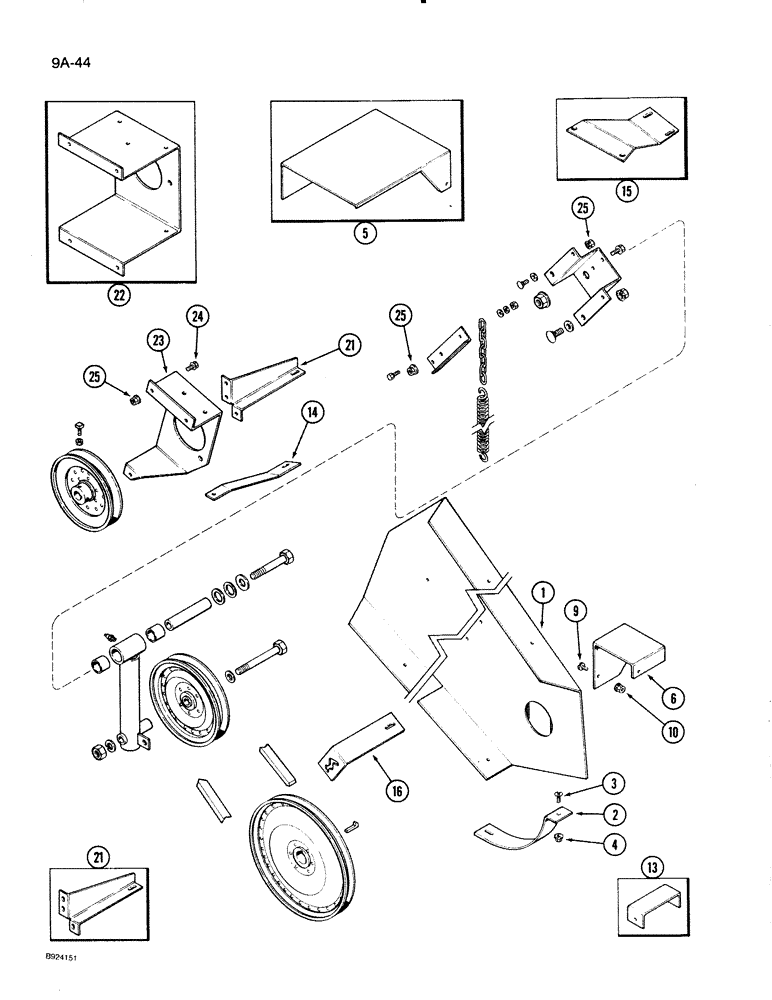

Запчасти Case IH 1020 (9A-44) - REEL HYDRAULIC DRIVE CONTROL ATTACHMENT, 1420E, 1440E, 1460E COMBINE (35) - HYDRAULIC SYSTEMS

1

189459C3

SHIELD

- pump drive (1420E, 1440E and 1460E combine with 47 inch feeder)

1шт.

1

189460C3

SHIELD

- pump drive (1460E and 1480E combine with 54-1/2 inch feeder)

1шт.

2

183707C1

SUPPORT

- shield, upper (1420E combine)

1шт.

2

189470C1

SUPPORT

- shield, upper (1440E, 1460E and 1480E combine)

1шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

1шт.

3

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

1шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

5

183739C2

SHIELD

- feeder jackshaft (1420E combine)

1шт.

6

197646C1

SHIELD

- feeder jackshaft (1440E and 1460E combine with 47 inch feeder)

1шт.

6

189730C1

SHIELD

- feeder jackshaft (1460E and 1480E combine with 54-1/2 inch feeder)

1шт.

6

179253C1

SHIELD

- feeder jackshaft (1460E and 1480E combine with 54-1/2 inch feeder)

1шт.

9

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT - slotted truss head, 1/4 NC x 1/2 inch

4шт.

10

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

4шт.

13

1322129C1

SUPPORT ASSY.

SUPPORT - reel drive (1420E combine)

1шт.

14

183706C2

SUPPORT

- shield, lower rear (1420E combine)

1шт.

14

189468C2

SUPPORT

- shield, lower rear (1440E and 1460E combine with 47 inch feeder)

1шт.

15

189469C1

SUPPORT

- shield, lower rear (1460E and 1480E combine with 54-1/2 inch feeder)

1шт.

16

183705C2

SUPPORT

- shield, upper front (1420E combine)

1шт.

16

189464C2

SUPPORT

- shield, upper front (1440E, 1460E and 1480E combine)

1шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

21

183704C2

SUPPORT

- shield, upper rear (1420E combine)

1шт.

21

189466C1

SUPPORT

- shield, upper rear (1440E, 1460E and 1480E combine)

1шт.

22

1317948C1

SUPPORT

- reel drive pump (1420E combine)

1шт.

23

198409C2

SUPPORT

- reel drive pump (1440E, 1460E and 1480E combine)

1шт.

24

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

1шт.

25

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.
