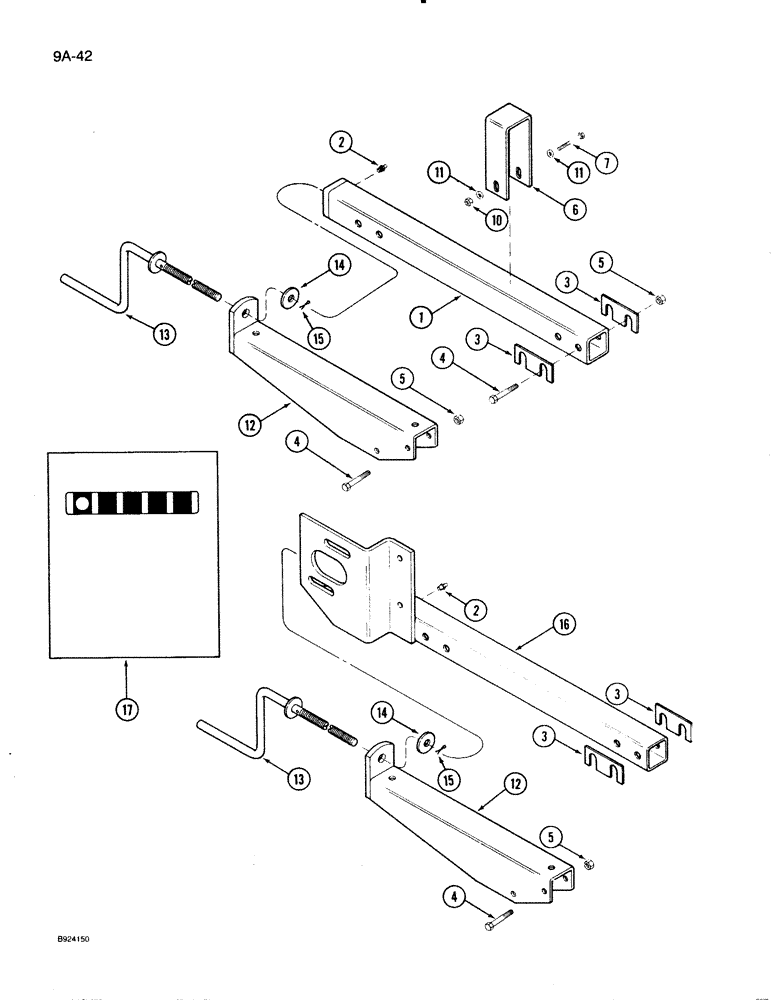

Запчасти Case IH 1020 (9A-42) - REEL FORE AND AFT ADJUSTMENT, MECHANICAL (35) - HYDRAULIC SYSTEMS

1

1308360C1

SUPPORT

ASSEMBLY - left, reel

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

3

1316478C1

BAR

- reel support

4шт.

4

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

4шт.

4

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

5

9413967

LOCK NUT,1/2"-13, GB

NUT - hex prevailing torque lock, 1/2 inch NC

6шт.

6

1308355C1

YOKE

- reel support

1шт.

7

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch

2шт.

10

188472C1

FLANGE NUT,Flg, 1/4"-20

NUT - hex flange lock, 1/4 inch NC

2шт.

11

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

12

1316313C1

SUPPORT

ASSEMBLY - reel adjustment

2шт.

13

1308364C1

CRANK

ASSEMBLY - reel adjustment

2шт.

14

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 5/32 inch

2шт.

15

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

16

1308361C1

SUPPORT

ASSEMBLY - reel drive

1шт.

17

1320807C1

DECAL

- adjustment

2шт.
