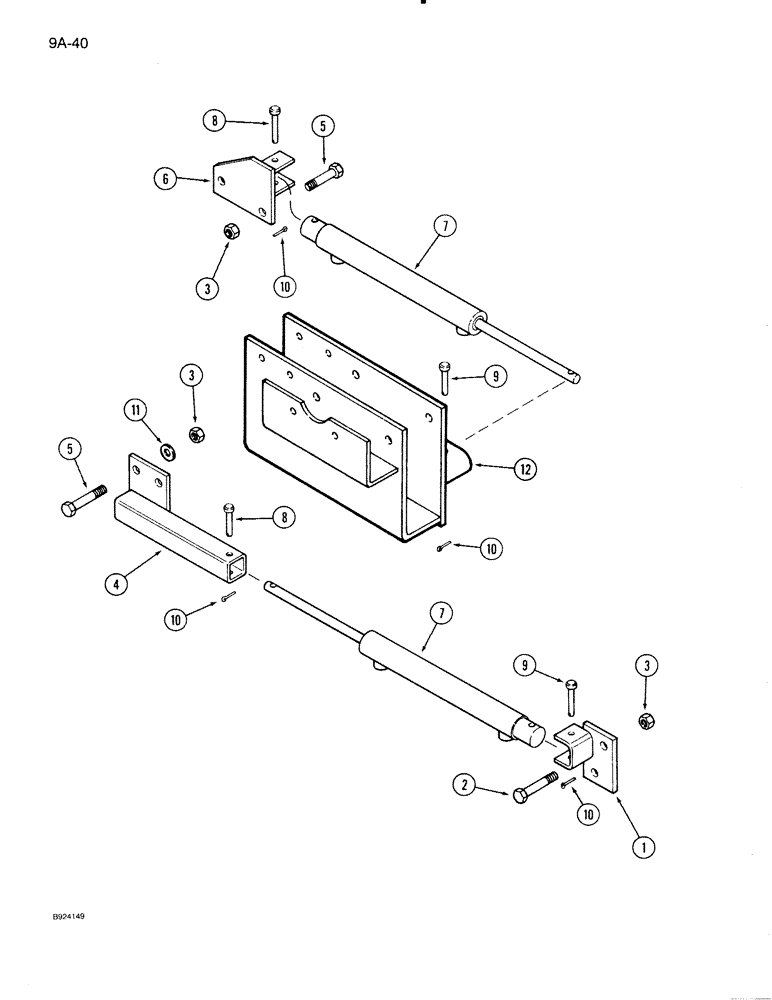

Запчасти Case IH 1020 (9A-40) - REEL FORE AND AFT ADJUSTMENT, HYDRAULIC (35) - HYDRAULIC SYSTEMS

1

1316318C1

SUPPORT

ASSEMBLY - front, right cylinder

1шт.

2

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

2шт.

3

9413967

LOCK NUT,1/2"-13, GB

NUT - hex prevailing torque lock, 1/2 inch NC

6шт.

4

1316317C1

SUPPORT

ASSEMBLY - rear, right cylinder

1шт.

5

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

4шт.

6

1316332C1

SUPPORT

ASSEMBLY - rear, left cylinder

1шт.

7

REF

INSTRUCTION

CYLINDER ASSEMBLY - fore and aft (See Figure 8-30)

2шт.

8

379990R1

HEADED PIN

PIN - headed, 3/8 x 2 inch

2шт.

9

U5356

HEADED PIN,9.53mm OD x 57.15mm L

PIN - headed, 3/8 x 2-1/4 inch

2шт.

10

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

11

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 5/32 inch

2шт.

12

REF

INSTRUCTION

SUPPORT - eccentric adjusting, left (Shown) (See Figure 9A-04) (Reels using steel tines or rear-mounted plastic tines)

1шт.

12

REF

INSTRUCTION

SUPPORT ASSEMBLY - eccentric shaft, left (See Figure 9A-12) (Reels using front-mounted plastic tines)

1шт.
