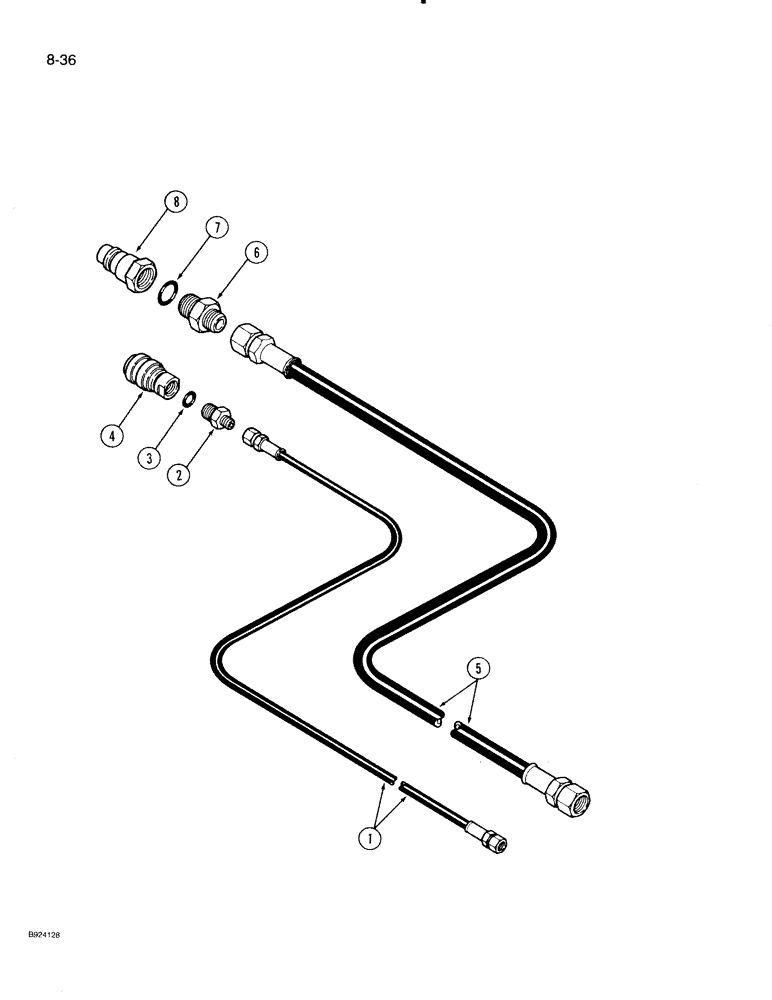

Запчасти Case IH 1020 (8-36) - HEADER TO COMBINE HYDRAULIC HOSES, 1420, 1440, 1460 AND 1480 COMBINE (35) - HYDRAULIC SYSTEMS

1

179202C1

HOSE,7.94mm ID x 1727.2mm L, SAE 100R1

ASSEMBLY - 5/16 ID x 68 inch (Header to combine reel lift)

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - short, 9/16-18 flared x 9/16-18 inch O-ring boss

1шт.

4

REF

INSTRUCTION

COUPLING ASSEMBLY - female, 9/16-18 inch (See Page 8-39)

1шт.

5

165678C91

HOSE

ASSEMBLY - 3/8 ID x 66 inch (Header to combine reel drive)

1шт.

6

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

short, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

REF

INSTRUCTION

COUPLING ASSEMBLY - male, 7/8-14 inch (See Page 8-39)

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
