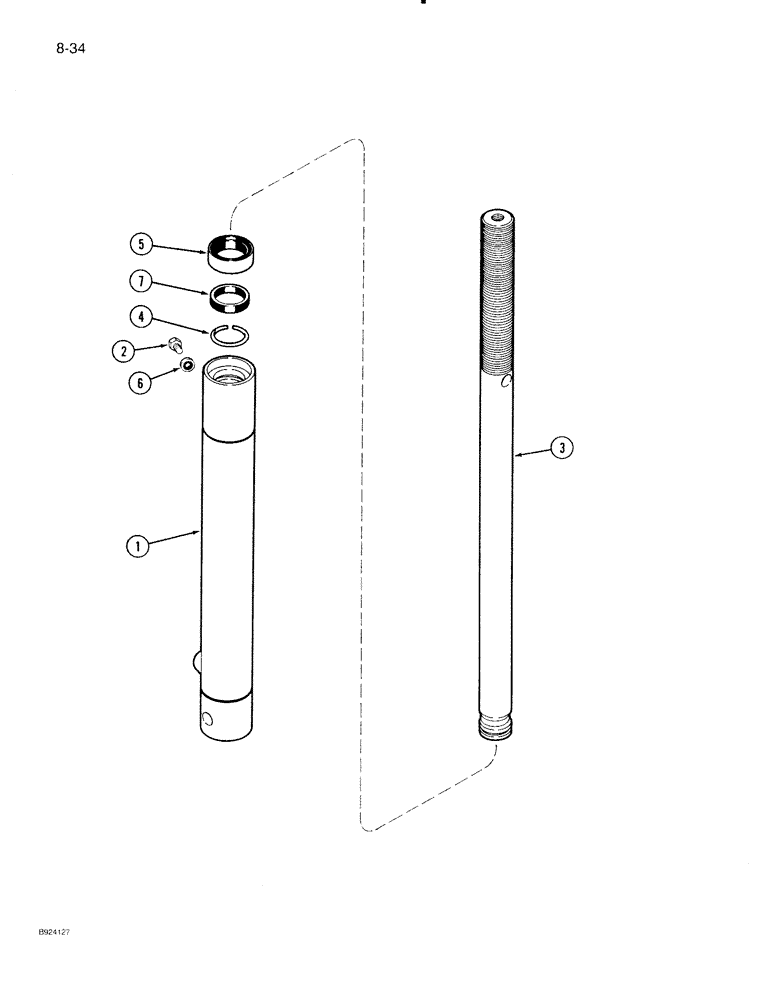

Запчасти Case IH 1020 (8-34) - REEL LIFT SLAVE CYLINDER, BAT REEL OR PICKUP REEL, (NOT FOR PICKUP REEL ON 30 FT HEADER) (35) - HYDRAULIC SYSTEMS

92642C91

CYLINDER

ASSEMBLY - hydraulic

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

2

463-1104

SCREW,Hex Hd, #10-24 x 1/4"

- machine, hex, No. 10 NC x 1-1/4 inch

1шт.

3

1286398C1

PISTON ROD

ROD - piston

1шт.

4

145190C1

SNAP RING

RING - retaining

1шт.

532531R92

SEAL KIT

KIT - seal

1шт.

5

532773R1

WIPER SEAL

WIPER - piston rod

1шт.

6

533145R1

RUBBER WASHER,5.59mm ID x 10.72mm OD x 1.37mm Thk

- rubber bonded

1шт.

7

119185C1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

- piston rod

1шт.
