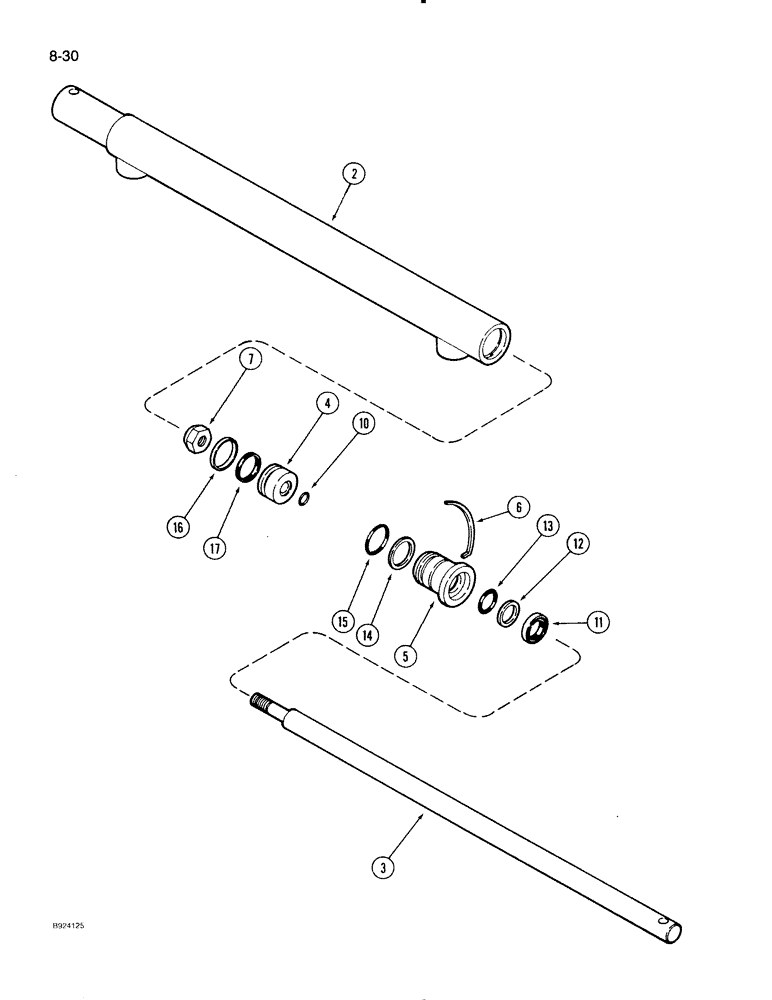

Запчасти Case IH 1020 (8-30) - REEL FORE AND AFT ADJUSTMENT HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

1282012C92

CYLINDER

ASSEMBLY - 1-1/4 bore x 13 inch stroke

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order 1282012C92)

1шт.

3

1282016C1

ROD

- piston

1шт.

4

1282017C2

PISTON

- cylinder

1шт.

5

108996C1

CYLINDER HEAD

HEAD - front

1шт.

6

532530R2

RETAINER

- front head

1шт.

Part of cylinder seal kit P/N 62240C92

1шт.

7

232-4617

LOCK NUT,7/16"-20, GC

NUT - hex lock, 7/16 inch NF, Grade 8

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Part of cylinder seal kit P/N 62240C92

1шт.

11

108999C1

WIPER SEAL

WIPER - rod

1шт.

Part of cylinder seal kit P/N 62240C92

1шт.

12

108997C1

WASHER

RING - backup

1шт.

Part of cylinder seal kit P/N 62240C92

1шт.

13

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

Part of cylinder seal kit P/N 62240C92

1шт.

14

108998C1

WASHER

RING - backup

1шт.

Part of cylinder seal kit P/N 62240C92

1шт.

15

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

Part of cylinder seal kit P/N 62240C92

1шт.

16

532529R2

SEALING RING,29.057mm ID x 32.36mm OD x 3.17mm Thk

RING - seal

1шт.

Part of cylinder seal kit P/N 62240C92

1шт.

17

239-5119

O-RING,Square, 0.094" Thk x 0.938" ID, -119, Cl 5, 75 Duro

SEAL - quad, 15/16 x 1-1/8 x 3/32 inch

1шт.

Part of cylinder seal kit P/N 62240C92

1шт.

62240C92

SEAL KIT

KIT - seal, cylinder, Includes: Ref. 6, 10, 11, 12,13, 14, 15, 16 and 17

2шт.
