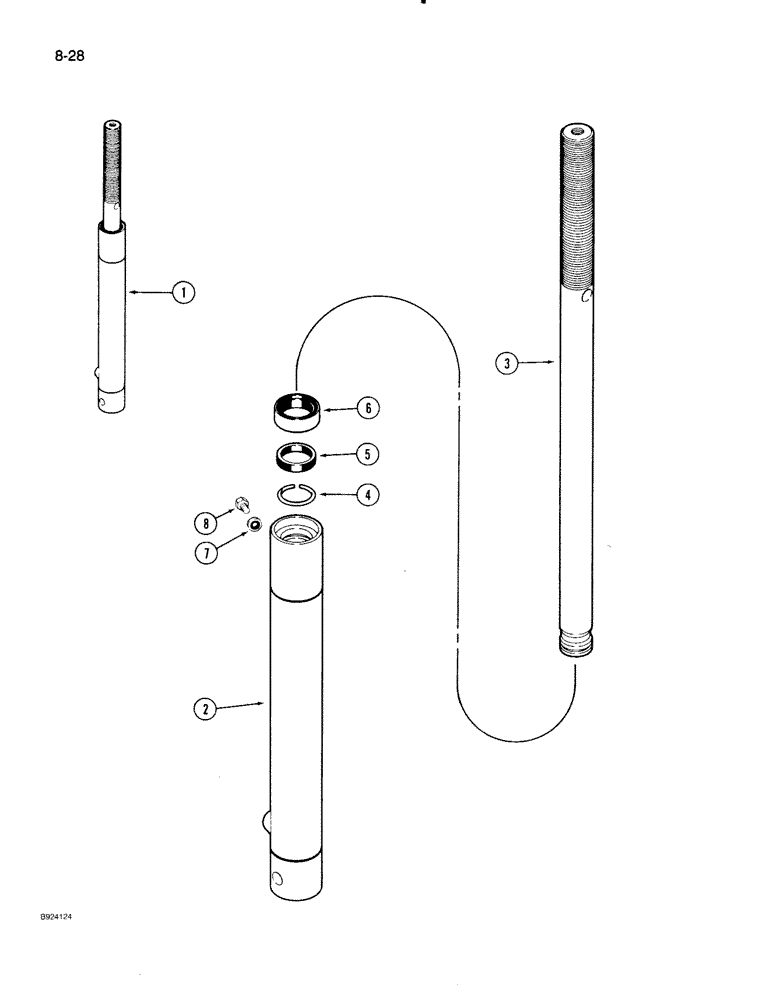

Запчасти Case IH 1020 (8-28) - REEL LIFT SLAVE HYDRAULIC CYLINDER, PICKUP REEL WITH PLASTIC OR STEEL TINES 30 FT HEADER (35) - HYDRAULIC SYSTEMS

1

1272703C93

CYLINDER,31.67mm Rod, 238.25mm Stroke

ASSEMBLY - 1-1/4 rod x 9-3/8 inch stroke (replaces 1272703C92)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order cylinder 1272703C93)

1шт.

3

1272713C1

ROD

- piston

1шт.

4

1272714C1

SNAP RING

RING - retaining

1шт.

Part of hydraulic cylinder seal kit P/N 1272725C1

1шт.

5

119188C1

SEAL,32.03mm ID x 37.84mm OD x 4.04mm Thk

- rod

1шт.

Part of hydraulic cylinder seal kit P/N 1272725C1

1шт.

6

D95141

WIPER SEAL

WIPER - 1-1/4 x 1-3/4 x 5/16 inch, piston rod, if used

1шт.

6

546283R1

WIPER SEAL

WIPER - 1-1/4 x 1-3/4 x 25/64 inch, piston rod, if used

1шт.

Part of hydraulic cylinder seal kit P/N 1272725C1

1шт.

7

533145R1

RUBBER WASHER,5.59mm ID x 10.72mm OD x 1.37mm Thk

- rubber bonded

1шт.

Part of hydraulic cylinder seal kit P/N 1272725C1

1шт.

8

463-1104

SCREW,Hex Hd, #10-24 x 1/4"

- machine, hex, No. 10 NC x 1-1/4 inch

1шт.

Part of hydraulic cylinder seal kit P/N 1272725C1

1шт.

1272725C1

SEAL KIT

KIT - seal, hydraulic cylinder, Includes: Ref. 4, 5, 6, 7 and 8

1шт.
