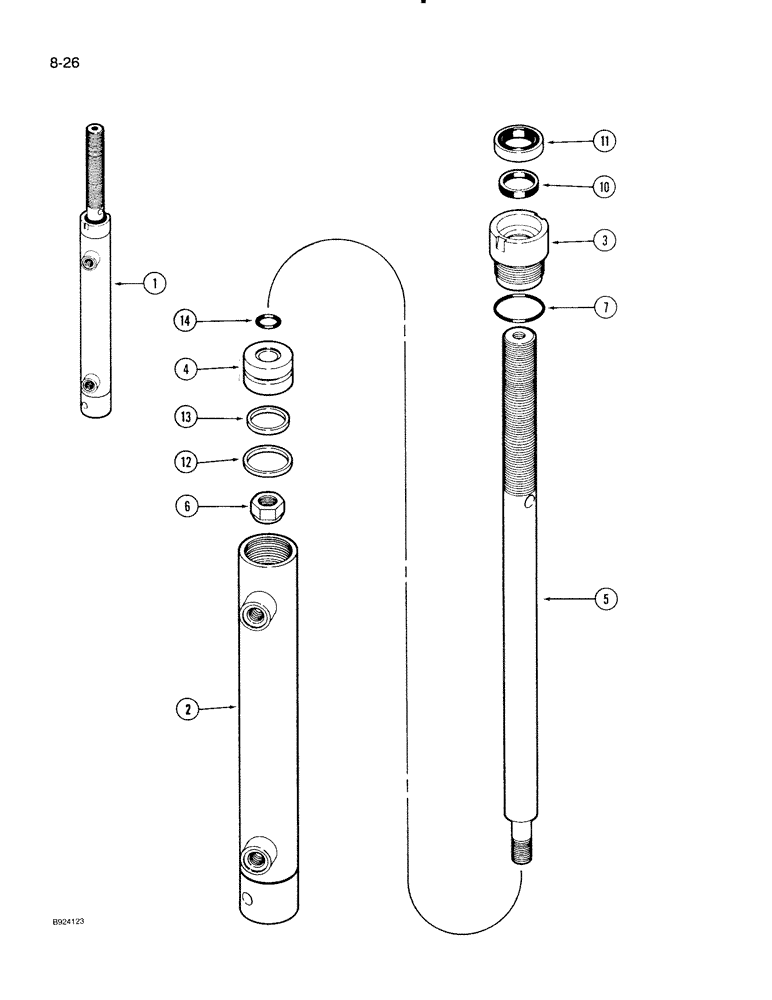

Запчасти Case IH 1020 (8-26) - REEL LIFT MASTER HYDRAULIC CYLINDER, PICKUP REEL W/ PLASTIC OR STEEL TINES PICKUP REEL 30. FT HEADER (35) - HYDRAULIC SYSTEMS

1

1272702C94

CYLINDER,Double Acting, 31.67mm Rod, 238.2mm Stroke

ASSEMBLY - hydraulic (Replaces 1272702C92 and 1272702C93)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order cylinder 1272702C94)

1шт.

3

1272719C1

HEAD

- front

1шт.

4

1272720C2

PISTON

- cylinder

1шт.

5

1272721C1

ROD

- piston, 1-1/4"

1шт.

6

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

1шт.

7

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk (Replaces 301016R1)

1шт.

Part of sealing kit P/N 1272724C3

1шт.

10

119188C1

SEAL,32.03mm ID x 37.84mm OD x 4.04mm Thk

- rod

1шт.

Part of sealing kit P/N 1272724C3

1шт.

11

546283R1

WIPER SEAL

WIPER - rod

1шт.

Part of sealing kit P/N 1272724C3

1шт.

12

1285775C2

SEALING RING

- ring

1шт.

Part of sealing kit P/N 1272724C3

1шт.

13

239-5126

O-RING,Rect, 1.375" ID x 1.562" OD, Cl 5

- rectangular seal (Replaces 28654R1)

1шт.

Part of sealing kit P/N 1272724C3

1шт.

14

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

(Replaces 383024R1) -017, 90 Duro, .676" ID x .070" Thk

1шт.

Part of sealing kit P/N 1272724C3

1шт.

1272724C3

SEAL KIT

KIT - sealing, Includes: Ref. 7, 10, 11, 12, 13 and 14

1шт.
