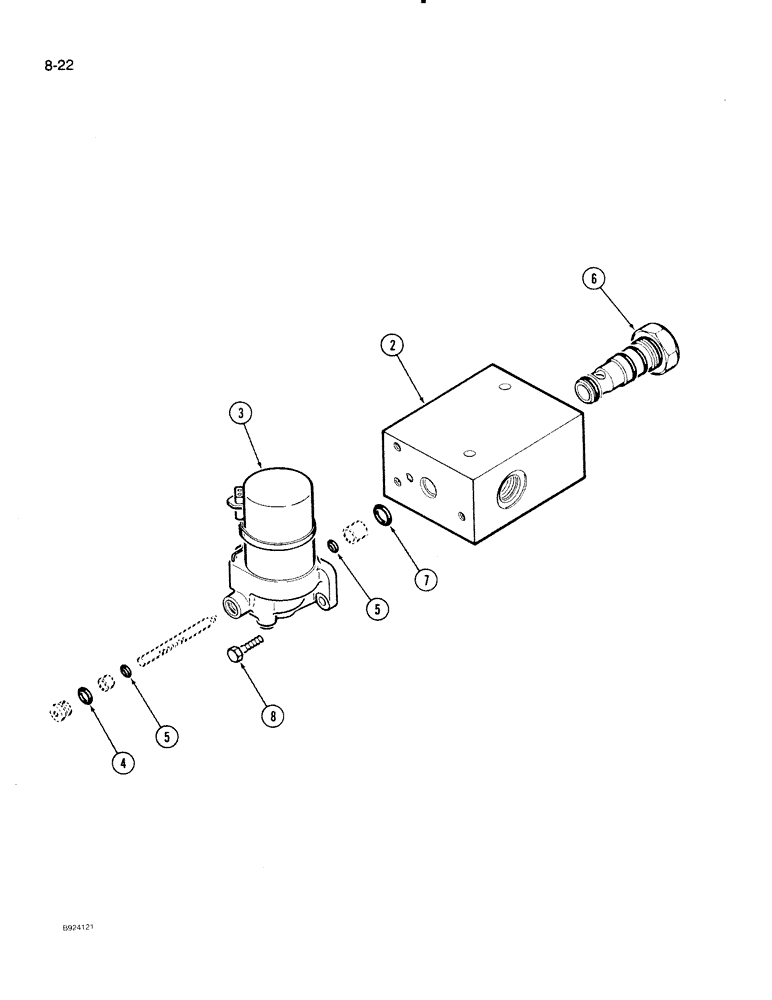

Запчасти Case IH 1020 (8-22) - REEL SPEED CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1282369C91

VALVE

ASSEMBLY - speed control

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order 1282369C91)

1шт.

3

1301336C1

MOTOR, ELECTRIC

MOTOR ASSEMBLY - valve

1шт.

4

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

5

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

(Replaces 379366R1) -011, 90 Duro, .301" ID x .070" Thk

2шт.

6

1301996C1

VALVE

ASSEMBLY - compensator

1шт.

7

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk (Replaces A17526)

1шт.

8

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex, 1/4 NC x 7/8 inch (Replaces 25483R1)

3шт.
