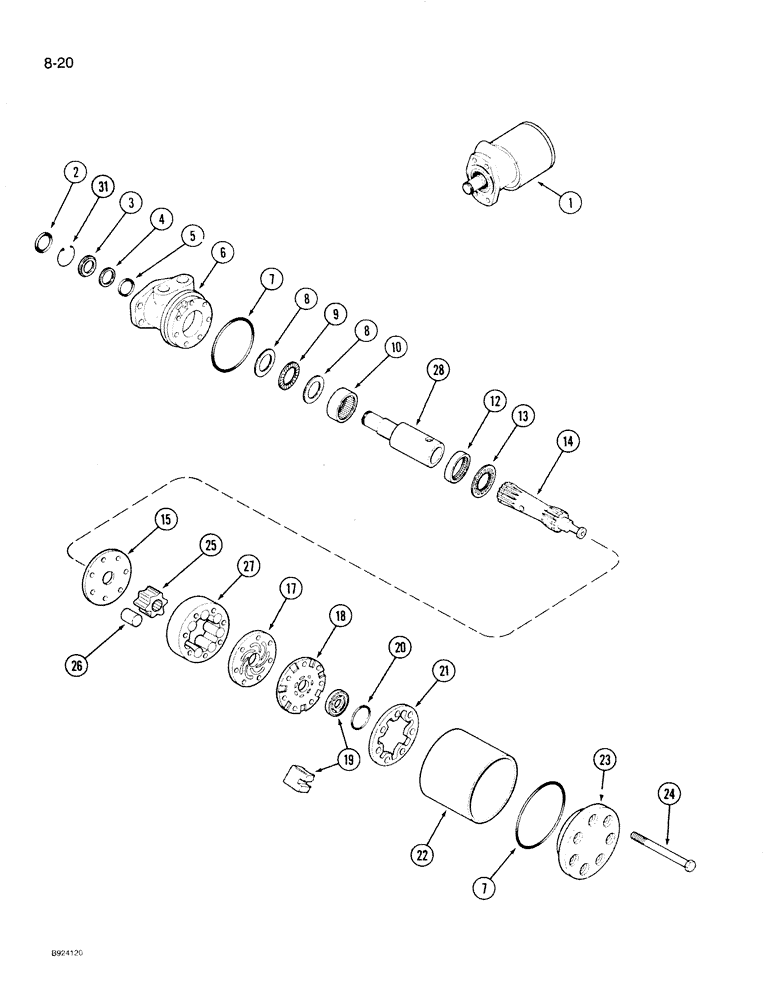

Запчасти Case IH 1020 (8-20) - REEL DRIVE HYDRAULIC MOTOR (35) - HYDRAULIC SYSTEMS

1

1986619C1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - reel drive (TRW MF060613CCCC) (Replaces 93404C1 and 173828C91)

1шт.

1986619C1R

REMAN-HYD MOTOR

1020, Prior To S/N JJC0215001

1шт.

1986619C1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL- oil

1шт.

Part of Seal Kit, P/N 700709231

1шт.

Part of Seal Kit, P/N 174397C2

1шт.

Part of Seal Kit, P/N 93404C1

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - back-up

1шт.

Part of Seal Kit, P/N 700709231

1шт.

Part of Seal Kit, P/N 174397C2

1шт.

Part of Seal Kit, P/N 93404C1

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER

1шт.

Part of Seal Kit, P/N 700709231

1шт.

Part of Seal Kit, P/N 174397C2

1шт.

Part of Seal Kit, P/N 93404C1

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL- oil

1шт.

Part of Seal Kit, P/N 700709231

1шт.

Part of Seal Kit, P/N 174397C2

1шт.

Part of Seal Kit, P/N 93404C1

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - motor

1шт.

7

NSS

NOT SOLD SEPARAT

RING - seal

2шт.

Part of Seal Kit, P/N 700709231

1шт.

Part of Seal Kit, P/N 174397C2

1шт.

Part of Seal Kit, P/N 93404C1

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - thrust

2шт.

9

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

10

NSS

NOT SOLD SEPARAT

BEARING - shaft

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING - link

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

14

NSS

NOT SOLD SEPARAT

LINK - drive

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

17

NSS

NOT SOLD SEPARAT

PLATE - manifold

1шт.

18

NSS

NOT SOLD SEPARAT

MANIFOLD - motor

1шт.

19

NSS

NOT SOLD SEPARAT

COMMUTATOR - motor

1шт.

20

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

Part of Seal Kit, P/N 700709231

1шт.

Part of Seal Kit, P/N 174397C2

1шт.

Part of Seal Kit, P/N 93404C1

1шт.

21

NSS

NOT SOLD SEPARAT

RING - commutator

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE - motor

1шт.

23

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY - end

1шт.

24

NSS

NOT SOLD SEPARAT

BOLT - through

7шт.

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - motor

1шт.

25

NSS

NOT SOLD SEPARAT

ROTOR - motor

1шт.

26

NSS

NOT SOLD SEPARAT

VANE - rotor

7шт.

27

NSS

NOT SOLD SEPARAT

STATOR - rotor

1шт.

28

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY - coupling

1шт.

31

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

1980156C1

SEAL KIT

KIT - seal, Includes: ref. nos. 2, 3, 4, 5, 7 and 20, use with motor 93404C1, part number stamped on motor

1шт.

174397C2

SEAL KIT

KIT - seal, Includes: ref. nos. 2, 3, 4, 5, 7 and 20, use with motor 173828C91, part number stamped on motor

1шт.

700709231

SEAL KIT

KIT - seal, Includes: ref. nos. 2, 3, 4, 5, 7 and 20, use with motor 1986619C1, part number stamped on motor

1шт.
