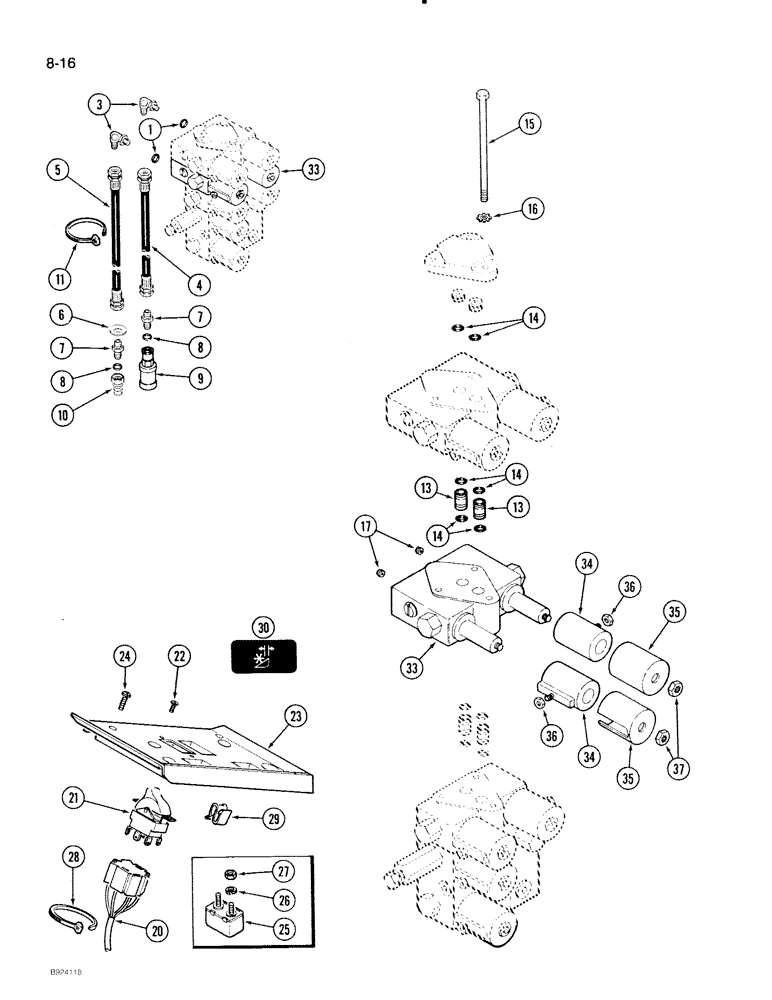

Запчасти Case IH 1020 (8-16) - REEL FORE AND AFT ADJUSTMENT ATTACHMENT, 1420, 1440, 1460 AND 1480 COMBINE (35) - HYDRAULIC SYSTEMS

1

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flared x 3/4-16 inch O-ring boss

2шт.

4

1321591C1

HOSE

ASSEMBLY - 5/16 ID x 94-1/2 inch

1шт.

5

1284369C1

HYDRAULIC HOSE

HOSE ASSEMBLY - 3/8 ID x 130 inch

1шт.

6

1541792C1

WASHER

WASHER - red special, 5/8 inch ID (Replaces 1327631C1)

1шт.

7

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring

2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

9

REF

INSTRUCTION

COUPLING ASSEMBLY - female (See Page 8-39)

1шт.

10

REF

INSTRUCTION

COUPLING ASSEMBLY - male (See Page 8-39)

1шт.

11

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

5шт.

13

1301630C2

TUBE,.344" ID, .5" OD, 15" Length

- through (Replaces 1301630C1)

2шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

(Replaces A40109) -012, 90 Duro, .364" ID x .070" Thk

6шт.

15

413-496

BOLT,Hex, 1/4" - 20 x 6", Gr 5

- hex, 1/4 NC x 6 inch

3шт.

16

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external tooth lock, 1/4 inch

3шт.

17

1301637C1

ORIFICE

PLUG - orifice

2шт.

20

1866277R1

ARMATURE

HARNESS - wiring

1шт.

21

1301175C1

SWITCH

- fore and aft

1шт.

22

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

- machine, pan head, No. 6-32 x 1/2 inch

2шт.

23

1301940C3

COVER

- console extension

1шт.

24

27204R1

SELF-TAP SCREW

- pan head, No. 10-24 x 3/4 inch

4шт.

25

262965C91

BREAKER

- circuit

1шт.

26

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

27

225-14210

NUT,#10-32

2шт.

28

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

3шт.

29

537024R1

CLIP

CUP - edge

1шт.

30

REF

INSTRUCTION

DECAL - fore and aft detent (See Section 9 - Decals))

2шт.

33

REF

INSTRUCTION

VALVE ASSEMBLY - double piloted (See Figure 8-24)

1шт.

34

1301633C1

COIL

- valve

2шт.

35

1301632C1

CAP

COVER - coil

2шт.

36

225-20210

NUT,#10-32, Brass

2шт.

37

107825

NUT,Stamped, 1/2"-20

- hex stamped, 1/2 inch NF

2шт.
