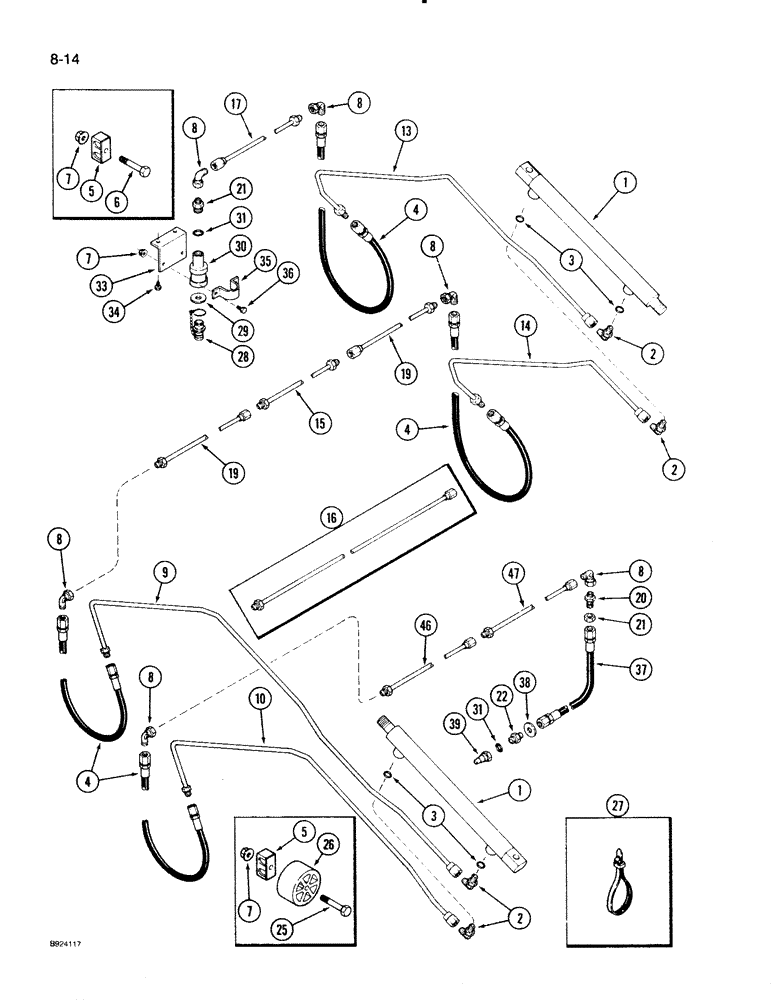

Запчасти Case IH 1020 (8-14) - REEL FORE AND AFT ADJUSTMENT HYDRAULIC SYSTEM, 22-1/2, 25 AND 30 FOOT HEADER (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - reel adjustment (See Figure 8-30)

2шт.

2

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 9/16-18 flared x 9/16-18 inch O-ring boss

4шт.

4

1264580C1

HYDRAULIC HOSE,6.40 mm ID x 685.00 mm

HOSE ASSEMBLY - hydraulic, 1/4 x 25 inch (Replaces 183543C1)

1шт.

5

183825C1

CLAMP

- hose and tube

10шт.

6

113-53

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

4шт.

7

188472C1

FLANGE NUT,Flg, 1/4"-20

NUT - hex flange lock, 1/4 inch NC

10шт.

8

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel, 9/16-18 inch flared

6шт.

9

1316727C2

TUBE

ASSEMBLY - right cylinder

1шт.

10

1316728C1

TUBE

ASSEMBLY - right cylinder

1шт.

13

1316729C1

TUBE

ASSEMBLY - left cylinder

1шт.

14

1316730C1

TUBE

ASSEMBLY - left cyiinder

1шт.

15

1316598C1

TUBE,0.375" OD, 1613 mm Length

ASSEMBLY - hydraulic

1шт.

16

1326259C1

TUBE

ASSEMBLY - hydraulic (22-1/2 foot header)

1шт.

16

1316599C1

TUBE,0.375" OD, 4818 mm Length

ASSEMBLY - hydraulic (25 foot header)

1шт.

16

1326258C1

TUBE

ASSEMBLY - hydraulic (30 foot header)

1шт.

17

1316602C1

SHIELD

TUBE ASSEMBLY - hydraulic (22-1/2 foot header)

1шт.

17

1316604C1

TUBE,0.375" OD, 2556 mm Length

ASSEMBLY - hydraulic (25 foot header)

1шт.

17

1316608C1

TUBE,0.375" OD, 3318 mm Length

ASSEMBLY - hydraulic (30 foot header) (Replaced by 1338414C1 and Ref 47)

1шт.

17

1338414C1

TUBE,0.375" OD, 275 mm Length

ASSEMBLY - hydraulic (30 foot header)

1шт.

19

1316603C1

TUBE,0.375" OD, 2655 mm Length

ASSEMBLY - hydraulic (22-1/2 foot header)

2шт.

19

1316605C1

HYD TUBE,0.375" OD, 3035 mm Length

ASSEMBLY - hydraulic (25 foot header)

2шт.

19

1338420C1

HYDRAULIC HOSE,0.375" OD, 3080 mm Length

ASSEMBLY - reel lift (20 foot header) (Replaces 1316610C1)

2шт.

20

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

1шт.

21

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - bulkhead hex lock, 9/16-18 inch

1шт.

22

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring

2шт.

25

113-28

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

6шт.

26

1326573C1

SPACER

- 45 mm long

6шт.

27

533959R1

CABLE TIE,.135" x 11"

STRAP - tie, 10 inch long

2шт.

28

1954133C1

PLUG

PLUG ASSEMBLY - dust, coupling (Replaces 401757R11)

1шт.

29

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

- dust plug

1шт.

30

REF

INSTRUCTION

COUPLING ASSEMBLY - female, 7/8-14 inch (See Page 8-39)

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

33

1316779C1

SUPPORT

ANGLE - quick disconnect support

1шт.

34

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

2шт.

35

1321398C1

CLAMP

- quick disconnect

1шт.

36

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

37

1254527C2

HYDRAULIC HOSE

HOSE ASSEMBLY - hydraulic, 1/4 x 37 inch (Replaces 129672C2)

1шт.

38

1541792C1

WASHER

WASHER - red (Replaces 1327631C1)

1шт.

39

REF

INSTRUCTION

COUPLING ASSEMBLY - male, 7/8-14 inch (See Page 8-39)

1шт.

46

1316597C1

TUBE,0.375" OD, 1413 mm Length

ASSEMBLY - hydraulic (22-1/2 foot header)

1шт.

46

1316601C1

TUBE,0.375" OD, 1794 mm Length

ASSEMBLY - hydraulic (25 foot header)

1шт.

46

1316604C1

TUBE,0.375" OD, 2556 mm Length

ASSEMBLY - hydraulic (30 foot header)

1шт.

47

1338419C1

TUBE,0.375" OD, 3027 mm Length

ASSEMBLY - hydraulic (22-1/2 foot, 25 and 30 foot header)

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.
