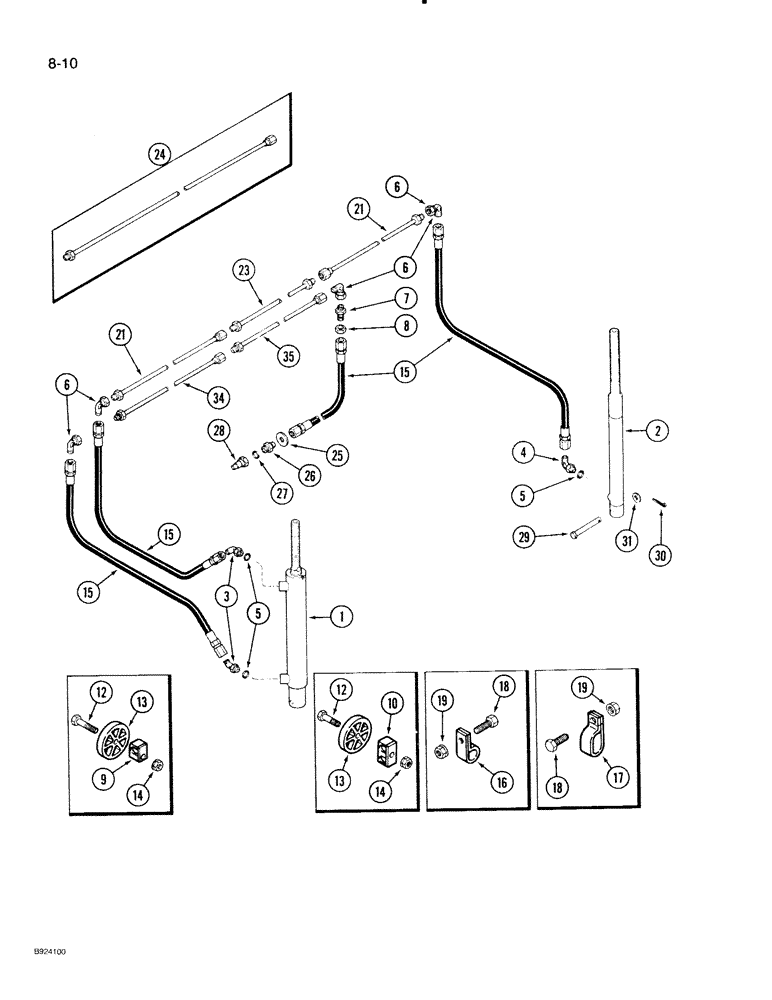

Запчасти Case IH 1020 (8-10) - REEL LIFT HYDRAULIC SYSTEM, 22-1/2, 25 AND 30 FOOT HEADER (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - master (See Page 8-27)

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - slave (See Page 8-29)

1шт.

3

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 45 degree, 9/16-18 flared x 9/16-18 inch O-ring boss, if used

2шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 9/16-18 flared x 9/16-18 inch O-ring boss, used with 1272702C94 or 92640C93 cylinder, if used, not shown

2шт.

4

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 9/16-18 flared x 9/16-18 inch O-ring boss

1шт.

6

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel, 9/16-18 inch flared

4шт.

7

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

1шт.

8

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - bulkhead hex lock, 9/16-18 inch

1шт.

9

183821C1

CLAMP

- tube, single

2шт.

10

183825C1

CLAMP

- tube, double

4шт.

12

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

6шт.

13

1326572C1

SPACER

- 10 mm long

6шт.

14

188472C1

FLANGE NUT,Flg, 1/4"-20

NUT - hex flange lock, 1/4 inch NC

6шт.

15

1254527C2

HYDRAULIC HOSE

HOSE ASSEMBLY - hydraulic, 1/4 x 37 inch (Replaces 129672C2)

4шт.

16

299413C1

CLAMP

- closed coated, 13/16 inch

1шт.

17

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

- hose, double

1шт.

18

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8-16 NC x 1 inch

2шт.

19

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

21

1316603C1

TUBE,0.375" OD, 2655 mm Length

ASSEMBLY - reel lift (22-1/2 foot header)

2шт.

21

1316605C1

HYD TUBE,0.375" OD, 3035 mm Length

ASSEMBLY - reel lift (25 foot header)

2шт.

21

1316610C1

TUBE,0.375" OD, 3798 mm Length

ASSEMBLY - reel lift (30 foot header)

2шт.

23

1316598C1

TUBE,0.375" OD, 1613 mm Length

ASSEMBLY - reel lift

1шт.

24

1326259C1

TUBE

ASSEMBLY - reel lift (22-1/2 foot header)

1шт.

24

1316599C1

TUBE,0.375" OD, 4818 mm Length

ASSEMBLY - reel lift (25 foot header)

1шт.

24

1326258C1

TUBE

ASSEMBLY - reel lift (30 foot header)

1шт.

25

1326441C1

WASHER

- black

1шт.

26

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

28

REF

INSTRUCTION

COUPLING ASSEMBLY - male, 7/8-14 inch (See Page 8-39)

1шт.

29

468286R1

HEADED PIN,12.7mm OD x 92.08mm L

PIN - headed, 1/2 x 3-7/16 inch

2шт.

30

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

31

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

34

1316597C1

TUBE,0.375" OD, 1413 mm Length

ASSEMBLY - reel lift (22-1/2 foot header)

1шт.

34

1316601C1

TUBE,0.375" OD, 1794 mm Length

ASSEMBLY - reel lift (25 foot header)

1шт.

34

1316604C1

TUBE,0.375" OD, 2556 mm Length

ASSEMBLY - reel lift (30 foot header)

1шт.

35

1338419C1

TUBE,0.375" OD, 3027 mm Length

ASSEMBLY - reel lift (22-1/2 foot header, 25 foot header and 30 foot header)

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.
