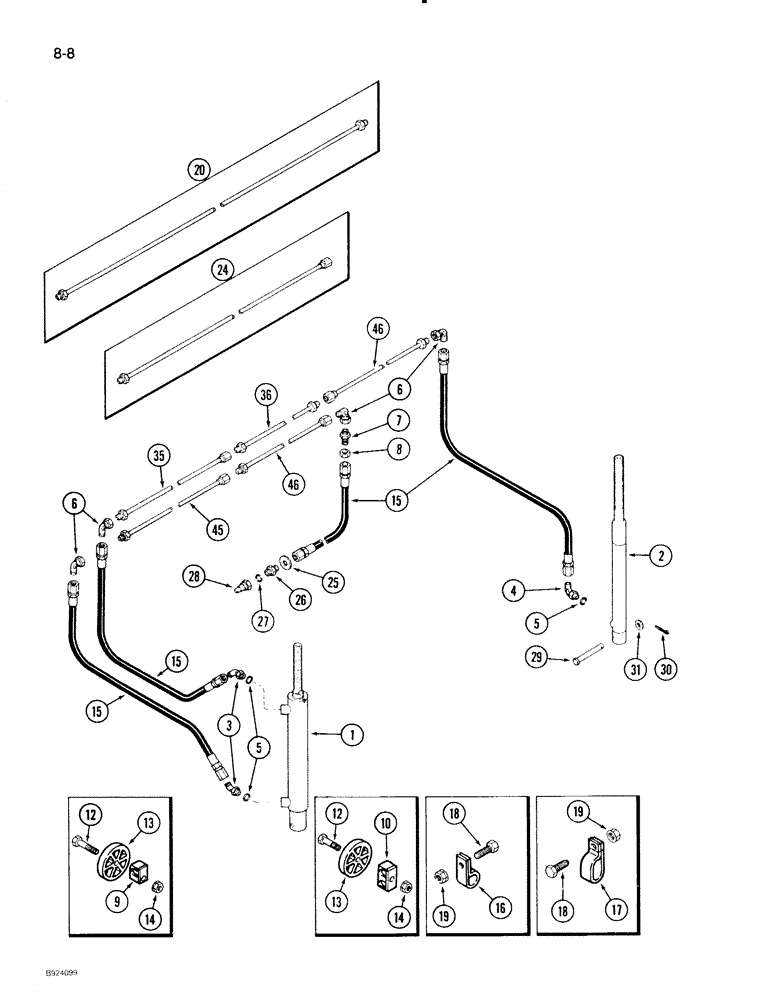

Запчасти Case IH 1020 (8-08) - REEL LIFT HYDRAULIC SYSTEM, 15, 16-1/2, 17-1/2 AND 20 FOOT HEADER (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
CYLINDER ASSEMBLY - master (See Page 8-27)
1шт.
2
REF
INSTRUCTION
CYLINDER ASSEMBLY - slave (See Page 8-29)
1шт.
3
9411104
ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
- 45 degree, 9/16-18 flared x 9/16-18 inch O-ring boss, if used
2шт.
3
9410976
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
- 90 degree, 9/16-18 flared x 9/16-18 inch O-ring boss, used with 1272702C94 or 92640C93 cylinder, if used, not shown
2шт.
4
9410976
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
- 90 degree, 9/16-18 flared x 9/16-18 inch O-ring boss
1шт.
6
218-980
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
- 90 degree swivel, 9/16-18 inch flared
4шт.
7
218-673
FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree
FIT STL BULKHD .375MJ .375MJ
1шт.
8
218-1254
LOCK NUT,Blkhd, 9/16"-18
NUT - bulkhead hex lock, 9/16-18 inch
1шт.
9
183821C1
CLAMP
- tube, single
1шт.
10
183825C1
CLAMP
- tube, double
3шт.
12
413-428
BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5
- hex, 1/4 NC x 1-3/4 inch
4шт.
13
1326572C1
SPACER
- 10 mm long
4шт.
14
188472C1
FLANGE NUT,Flg, 1/4"-20
NUT - hex flange lock, 1/4 inch NC
4шт.
16
299413C1
CLAMP
- closed coated, 13/16 inch
1шт.
17
485093C1
CLAMP,13/16" Insul, 13/32" Bolt
- hose, double
1шт.
18
154273C1
BOLT,Hex Serr, 3/8" - 16 x 1", Spcl
- hex lock, 3/8-16 NC x 1 inch
2шт.
19
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
- hex flange lock, 3/8 inch NC
2шт.
20
1316612C1
TUBE,0.375" OD, 4634 mm Length
ASSEMBLY - reel lift (15 foot header)
1шт.
20
1326830C1
TUBE
ASSEMBLY - reel lift (16-1/2 foot header)
1шт.
20
1316667C1
TUBE,0.375" OD, 5395 mm Length
ASSEMBLY - reel lift (17-1/2 foot header)
1шт.
20
1316668C1
TUBE,0.375" OD, 6157 mm Length
ASSEMBLY - reel lift (20 foot header)
1шт.
24
1316607C1
TUBE,0.375" OD, 3296 mm Length
ASSEMBLY - reel lift (15 foot header)
1шт.
24
1326832C1
TUBE
ASSEMBLY - reel lift (16-1/2 foot header)
1шт.
24
1316609C1
TUBE,0.375" OD, 3676 mm Length
ASSEMBLY - reel lift (17-1/2 foot header)
1шт.
24
1316611C1
TUBE,0.375" OD, 4057 mm Length
ASSEMBLY - reel lift (20 foot header)
1шт.
25
1326441C1
WASHER
- black
1шт.
26
218-5354
HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring
FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring
1шт.
27
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
28
REF
INSTRUCTION
COUPLING ASSEMBLY - male, 7/8-14 inch (See Page 8-39)
1шт.
29
468286R1
HEADED PIN,12.7mm OD x 92.08mm L
PIN - headed, 1/2 x 3-7/16 inch
2шт.
30
132-344
COTTER PIN,3/16" x 1"
PIN, SPLIT (COTTER), 3/16" x 1"
2шт.
31
25710R1
WASHER
- flat, 17/32 x 1-1/16 x 5/64 inch
2шт.
35
1316601C1
TUBE,0.375" OD, 1794 mm Length
ASSEMBLY - reel lift (15 foot header)
1шт.
35
1338417C1
TUBE,0.375" OD, 2013 mm Length
ASSEMBLY - reel lift (16-1/2 foot header)
1шт.
35
1316604C1
TUBE,0.375" OD, 2556 mm Length
ASSEMBLY - reel lift (17-1/2 foot header)
1шт.
35
1338420C1
HYDRAULIC HOSE,0.375" OD, 3080 mm Length
ASSEMBLY - reel lift (20 foot header)
1шт.
36
1338418C1
TUBE,0.375" OD, 2844 mm Length
ASSEMBLY - reel lift (15 foot and 17-1/2 foot header)
1шт.
36
1338421C1
TUBE,0.375" OD, 3080 mm Length
ASSEMBLY - reel lift (16-1/2 foot and 20 foot header)
1шт.
45
1338414C1
TUBE,0.375" OD, 275 mm Length
ASSEMBLY - reel lift (15 foot header)
1шт.
45
1338415C1
TUBE,0.375" OD, 500 mm Length
ASSEMBLY - reel lift (16-1/2 foot header)
1шт.
45
1338416C1
TUBE,0.375" OD, 652 mm Length
ASSEMBLY - reel lift (17-1/2 foot header)
1шт.
45
1316596C1
TUBE,0.375" OD, 1033 mm Length
ASSEMBLY - reel lift (20 foot header)
1шт.
46
1338419C1
TUBE,0.375" OD, 3027 mm Length
ASSEMBLY - reel lift (15 foot, 16-1/2 foot, 17-1/2 foot and 20 foot header)
1шт.
5
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
3шт.
Выбрано товаров: 45
