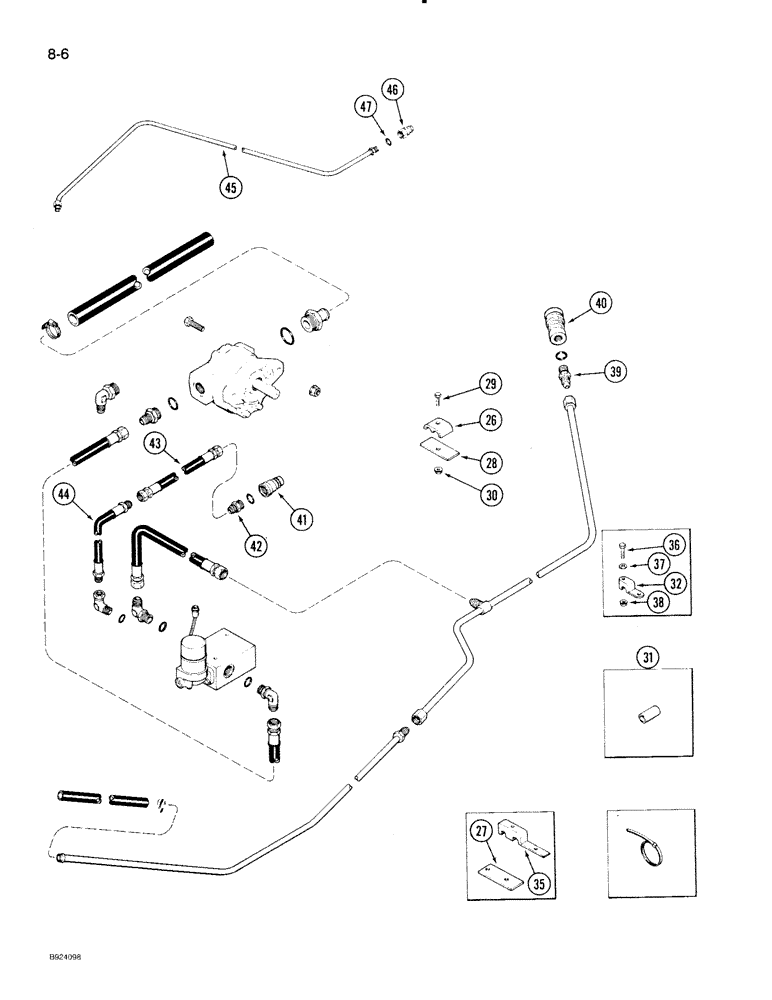

Запчасти Case IH 1020 (8-06) - REEL DRIVE HYDRAULIC SYSTEM, 1420E, 1440E, 1460E AND 1480E COMBINE (35) - HYDRAULIC SYSTEMS

26

165601C1

CLAMP

- retaining, 13/32 inch diameter hole

1шт.

26

165602C1

CLAMP

- retaining, 11/32 inch diameter hole

1шт.

27

196868C2

SUPPORT

PLATE - support (1420E, 1440E and 1460E)

1шт.

28

573186R1

PLATE

- support (1480E)

1шт.

29

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

29

424-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 2

- hex, 3/8 NC x 1-3/4 inch

1шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

30

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

31

163490C1

RUBBER INSULATOR

SLEEVE - protective, tube clamp, 3/8 inch ID

1шт.

31

163491C1

RUBBER INSULATOR

SLEEVE - protective, tube clamp, 1/2 inch ID

1шт.

31

163492C1

RUBBER INSULATOR

SLEEVE - protective, tube clamp, 5/8 inch ID

1шт.

32

183821C1

CLAMP

- tube, single, 3/8 inch OD tube

1шт.

32

183822C1

CLAMP

- tube, single, 5/8 inch OD tube

1шт.

35

121714C1

CLAMP

- tube, double, 3/4 and 5/8 inch OD tube

1шт.

36

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

1шт.

37

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

38

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

1шт.

39

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short, 7/8-14 flared x 7/8-14 inch O-ring boss

1шт.

40

REF

INSTRUCTION

COUPLING ASSEMBLY - female (See Page 8-39)

1шт.

41

REF

INSTRUCTION

COUPLING ASSEMBLY - male (See Page 8-39)

1шт.

42

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

short, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

43

196878C1

HOSE

ASSEMBLY - 3/8 ID x 56 inch (1420E, 1440E and 1460E with 47 inch feeder)

1шт.

43

179411C1

HOSE

ASSEMBLY - 3/8 ID x 61 inch (1460E and 1480E with 54-1/2 inch feeder)

1шт.

44

1315462C1

HOSE

ASSEMBLY - 3/8 ID x 29-1/2 inch (1420E)

1шт.

44

1317169C1

HOSE

ASSEMBLY - 3/8 ID x 27 inch (1440E, 1460E and 1480E)

1шт.

45

187771C1

HYD TUBE

TUBE ASSEMBLY - reel lift (1420E)

1шт.

45

1312410C1

HYD TUBE

TUBE ASSEMBLY - reel lift (1440E and 1460E)

1шт.

46

REF

INSTRUCTION

COUPLING ASSEMBLY - male (See Page 8-39)

1шт.

36

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

47

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
