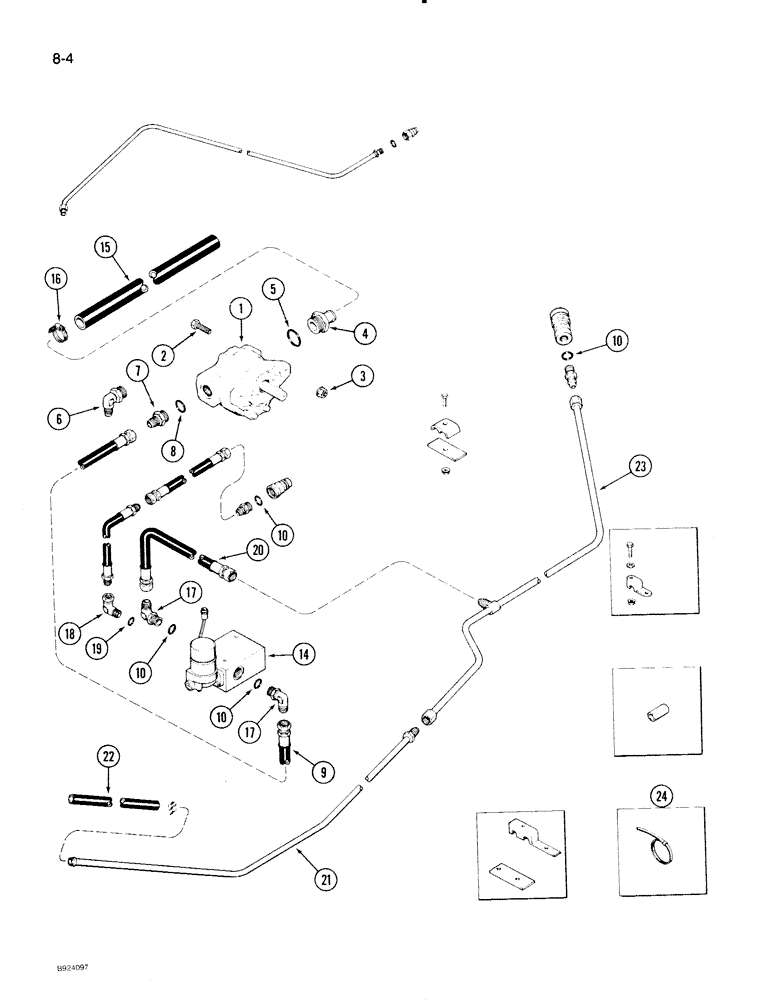

Запчасти Case IH 1020 (8-04) - REEL DRIVE HYDRAULIC SYSTEM, 1420E, 1440E, 1460E AND 1480E COMBINE (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

PUMP ASSEMBLY - reel drive (See Page 8-19)

1шт.

2

540858R1

BOLT,Hex Serr, 1/2" - 13 x 1 1/2"

- hex flange, 1/2 NC x 1-1/2 inch

2шт.

3

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

- hex flange lock, 1/2 inch NC

2шт.

4

1282383C1

FITTING,1-5/8" - 12 ORB x

- beaded tube, 1 inch ID hose

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk (Replaces 307915R1)

1шт.

6

633460R91

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

- 90 degree adjustable, 7/8-14 flared x 1-1/16-12 inch O-ring boss (1440E, 1460E and 1480E)

1шт.

7

573206R1

HYD CONNECTOR,7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - short, 7/8-14 flared x 1-1/16-12 inch O-ring boss (1420E)

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

9

1317078C2

HOSE

ASSEMBLY - 1/2 ID x 28-1/2 inch (1420E)

1шт.

9

1315460C1

HOSE,12.7mm ID x 900mm L, SAE 100R7

ASSEMBLY - 1/2 ID x 35-1/2 inch (1440E, 1460E and 1480E)

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

REF

INSTRUCTION

VALVE ASSEMBLY - reel speed control (See Figure 8-22)

1шт.

15

198303C1

HYDRAULIC HOSE,1.00" ID x 40.00", SAE 100R4 Class 4

1.00" ID x 40.00", SAE 100R4 Class 4

1шт.

16

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP - hose retaining

2шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 flared x 7/8-14 inch O-ring boss

1шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 flared x 3/4-16 inch O-ring boss

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

1315463C1

HOSE

ASSEMBLY - 1/2 ID x 21-5/8 inch (1420E)

1шт.

20

1317073C1

HOSE

ASSEMBLY - 1/2 ID x 25 inch (1440E, 1460E and 1480E)

1шт.

21

187777C1

HYD TUBE

TUBE - reel drive return, rear (1420E)

1шт.

21

196746C1

HYD TUBE

TUBE - reel drive return, rear (1440E and 1460E)

1шт.

21

187830C1

HYD TUBE

TUBE - reel drive return, rear (1480E)

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - 5/8 ID x 24 inch (Cut from bulk hose S118576)

1шт.

S118576

HOSE,0.62" ID BULK

0.625" ID x 300.00" Bulk

1шт.

23

1322128C1

HYD TUBE

TUBE ASSEMBLY - reel drive return, front (1420E)

1шт.

23

1312411C1

HYD TUBE

TUBE ASSEMBLY - reel drive return, front (1440E and 1460E)

1шт.

23

1325306C1

HYD TUBE,16 mm Diameter, 1570, 135 mm Length

TUBE ASSEMBLY - reel drive return, front (1480E)

1шт.

24

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

1шт.
