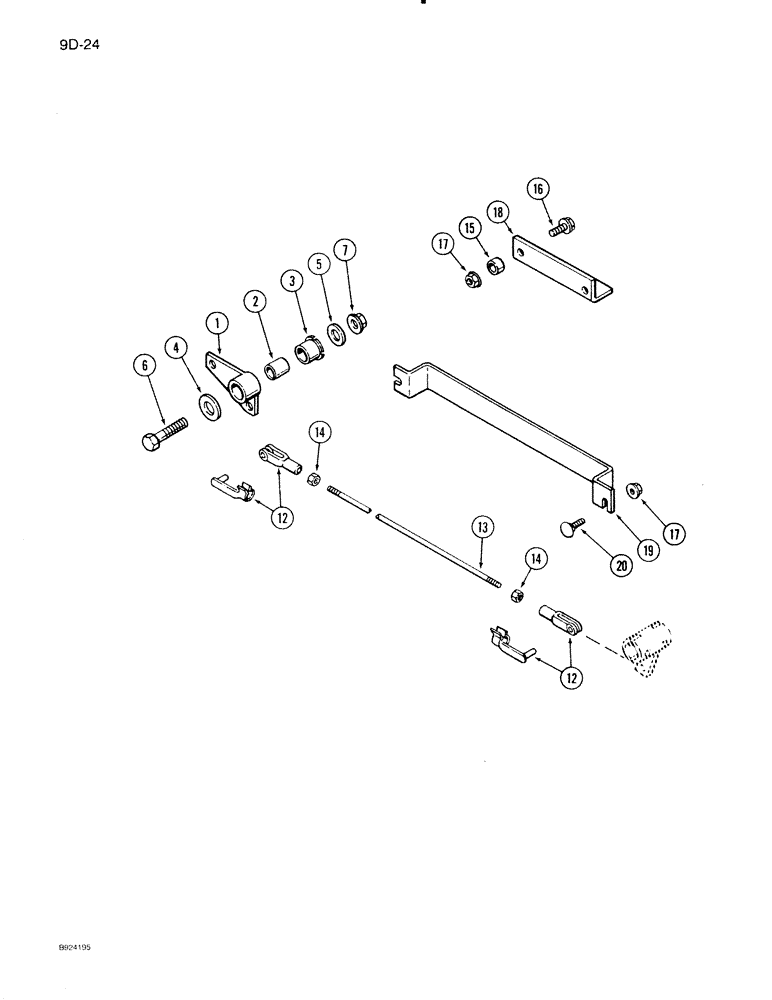

Запчасти Case IH 1020 (9D-24) - AUTOMATIC HEADER HEIGHT CONTROL, 1420, 1440, 1460 AND 1480 COMBINE W/OUT ELECTROHYDRAULICS (58) - ATTACHMENTS/HEADERS

1

1320304C1

LEVER

ASSEMBLY - linkage arm

1шт.

2

487704R1

SPACER,3/4" Tube x 1 3/16"

- 3/4 x 1-3/16 inch

1шт.

3

185062R1

BUSHING

- spacer

1шт.

4

495-81041

WASHER,25/32" x 1 1/2" x .060"

- flat, 25/32 x 1-1/2 x 1/16 inch

1шт.

5

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

6

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

1шт.

7

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

1шт.

12

188981C91

ADJUSTABLE CLEVIS

CLEVIS - with clip

2шт.

13

1320308C1

STUD

- linkage rod

1шт.

14

425-114

NUT,1/4"-28, G5

2шт.

15

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

2шт.

16

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex flange, 5/16 NC x 1-1/4 inch

2шт.

17

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

3шт.

18

1308301C1

BRACKET

- cable mounting

1шт.

19

1320313C1

SUPPORT

- linkage shield

1шт.

20

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

1шт.
