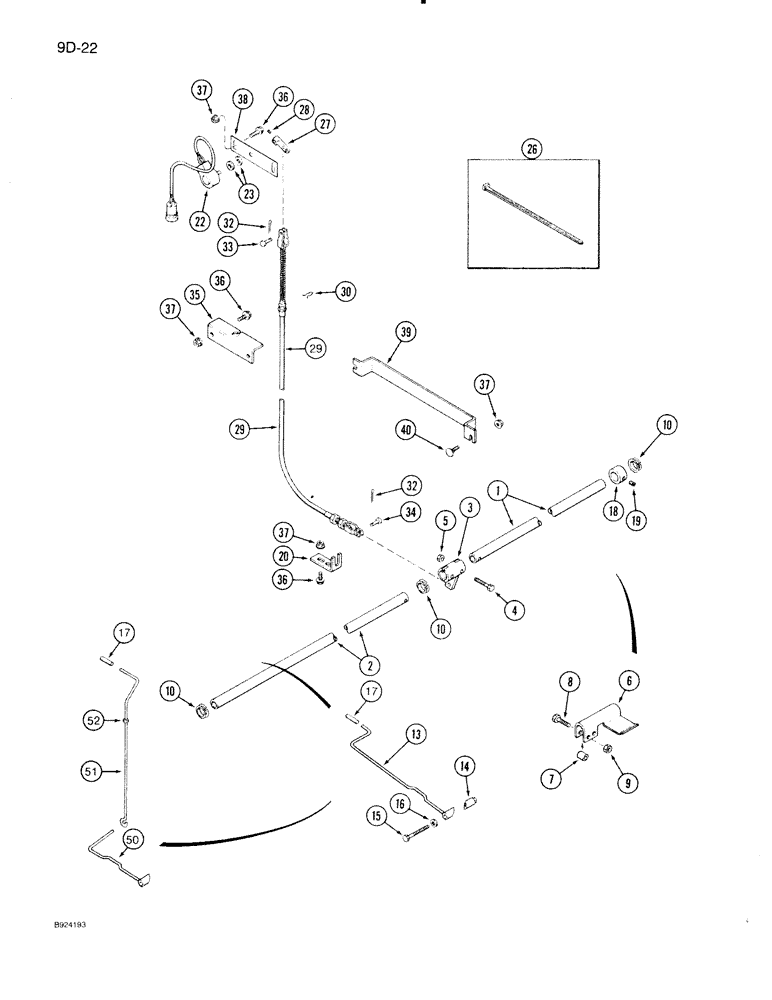

Запчасти Case IH 1020 (9D-22) - HEADER HEIGHT CONTROL (58) - ATTACHMENTS/HEADERS

1

1320298C2

TUBE

- sensor, left (15 foot header) (Replaces 1320298C1)

1шт.

1

1326819C2

TUBE

- sensor, left (16-1/2 foot header) (Replaces 1326819C1)

1шт.

1

1320299C2

TUBE

- sensor, left (17-1/2 foot header) (Replaces 1320299C1)

1шт.

1

1320300C2

TUBE

- sensor, left (20 foot header) (Replaces 1320300C1)

1шт.

1

1320301C2

TUBE

- sensor, left (22-1/2 foot header) (Replaces 1320301C1)

1шт.

1

1320302C2

TUBE

- sensor, left (25 foot header) (Replaces 1320302C1)

1шт.

1

1320303C2

TUBE

- sensor, left (30 foot header) (Replaces 1320303C1)

1шт.

2

1307604C2

TUBE,17.4 mm ID, 22.22 mm OD

- sensor, right (15 foot header) (Replaces 1307604C1)

1шт.

2

1326820C2

TUBE,22.22 mm OD, 3504.1 mm Length

- sensor, right (16-1/2 foot header) (Replaces 1326820C1)

1шт.

2

1307605C2

TUBE,17.4 mm ID, 22.22 mm OD

- sensor, right (17-1/2 foot header) (Replaces 1307605C1)

1шт.

2

1307606C2

TUBE,17.4 mm ID, 22.22 mm OD

- sensor, right (20 foot header) (Replaces 1307606C1)

1шт.

2

1307607C2

TUBE,17.4 mm ID, 22.22 mm OD

- sensor, right (22-1/2 foot header) (Replaces 1307607C1)

1шт.

2

1307608C2

TUBE,17.4 mm ID, 22.22 mm OD

- sensor, right (25 foot header) (Replaces 1307608C1)

1шт.

2

1307609C2

TUBE,17.4 mm ID, 22.22 mm OD

- sensor, right (30 foot header) (Replaces 1307609C1)

1шт.

3

1316388C1

ARM

ASSEMBLY - connector

1шт.

4

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

5

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

6

1307610C1

SUPPORT

FEELER - height control

1шт.

7

567987R1

SPACER,10.3mm ID x 15.88mm OD x 17.5mm L

- 5/8 x 11/16 inch

1шт.

Newer style U-clamp being used since 1995 instead of spacers, P/N 189956A1.

1шт.

8

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

9

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

1шт.

10

1313081C1

BUSHING,23mm ID x 28.57mm OD x 6.84mm L

- pivot

1шт.

13

1308037C1

ROD

- indicator, if used

1шт.

14

1316572C1

PLUG

- indicator rod, beveled

1шт.

15

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1шт.

16

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

17

1326543C1

CAP

- indicator end

1шт.

18

1308482C1

COLLAR

- sensing tube

1шт.

19

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex socket headless, 1/4 NC x 1/4 inch

1шт.

20

1320312C1

BRACKET

- cable anchor

1шт.

22

245885C93

POTENTIOMETER

Height Control, Replaces 245885C92

1шт.

Plug on end is P/N 225160C1.

1шт.

22

1301147C91

POTENTIOMETER

Height Control, For 1400 Series Combines with Electro-Hydraulics

1шт.

Cable for 1400 series is P/N 1301319C2.

1шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

2шт.

26

533959R1

CABLE TIE,.135" x 11"

STRAP - tie, 10 inch long

1шт.

27

1968782C1

ARM

- potentiometer (Replaces 183597C1)

1шт.

28

483-1084

SET SCREW,Hex Soc, #8-32 x 1/4"

SCREW - set, hex socket headless, No. 8 NC x 1/4 inch, cup

1шт.

29

1316427C3

CABLE

- control

1шт.

30

148151

COTTER PIN,Hairpin, 716"

CLIP - control cable

1шт.

32

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

33

138082

CLEVIS PIN,3/16" x .580"

PIN - clevis

1шт.

34

22906R1

HEADED PIN,1/4" x 3/4"

PIN, HEADED, 1/4" x 3/4"

1шт.

35

1308301C1

BRACKET

- cable mounting

1шт.

36

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

1шт.

37

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

38

1308299C2

SUPPORT

STRIP - potentiometer mounting

1шт.

39

1320313C1

SUPPORT

- linkage shield

1шт.

40

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

1шт.

50

106090A1

INDICATOR

ROD - indicator, if used

1шт.

51

106092A1

EXTENSION

- indicator rod, if used

1шт.

52

353-459

BUSHING

- nylon, 3/8 inch, not required on 15 or 16-1/2 foot headers

1шт.
