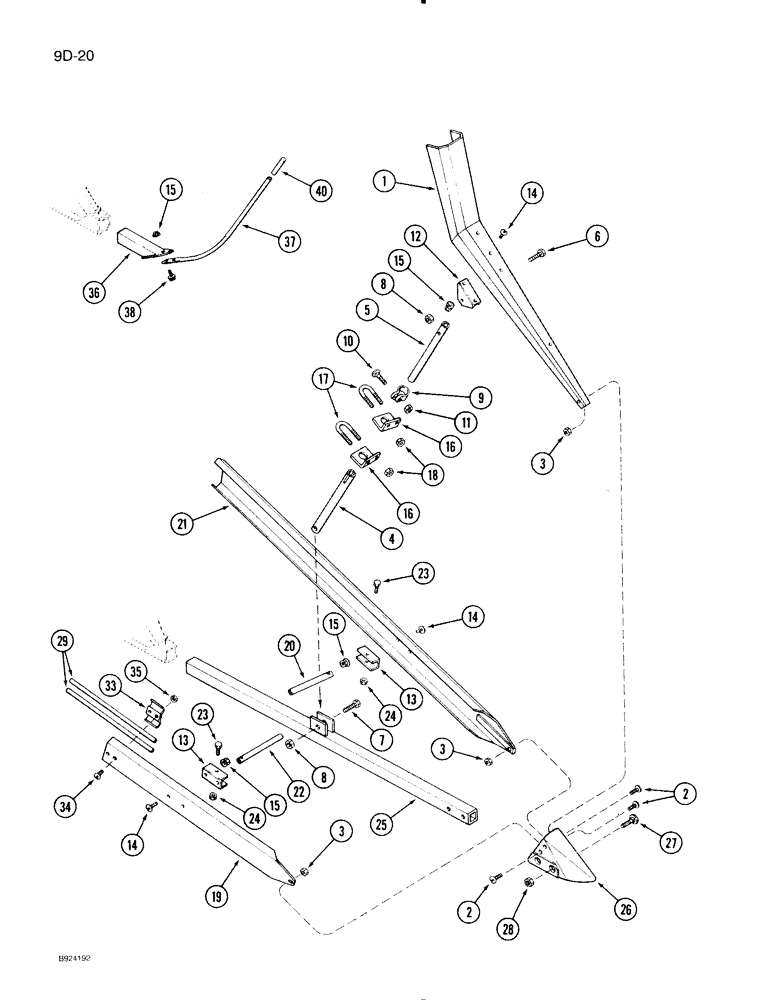

Запчасти Case IH 1020 (9D-20) - WING DIVIDERS AND ROD DIVIDERS (58) - ATTACHMENTS/HEADERS

1

1316197C2

SUPPORT

- wing, upper (Replaces 1316197C1)

2шт.

2

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - slotted truss head 5/16 NC x 1 inch

4шт.

3

135270

SERRATED SCREW,5/16" - 18 x 3/4"

NUT, LOCK, 5/16"-18, GC

4шт.

4

1307691C1

TUBE,390 mm Length

- wing, lower

2шт.

5

1307692C2

TUBE,390 mm Length

- wing, upper (Replaces 1307692C1)

2шт.

6

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

8

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

4шт.

9

1307694C1

CLAMP

- tube retaining

2шт.

10

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - round head square neck, 1/2 NC x 2 inch

2шт.

11

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

12

1307683C2

SUPPORT ASSY.

SUPPORT - tube

2шт.

13

1307688C2

SUPPORT

- tube

4шт.

14

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

12шт.

15

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

16

1313163C1

BRACKET

- wing support

4шт.

17

1313164C1

U-BOLT

- bracket

4шт.

18

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

8шт.

19

1316772C2

SUPPORT

- wing, inner (Replaces 1316772C1)

2шт.

20

1316826C1

PIPE

- wing support, inner

2шт.

21

1316773C2

SUPPORT

- wing, outer (Replaces 1316773C1)

2шт.

22

1307693C1

PIPE

- wing support, outer

2шт.

23

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

4шт.

24

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

25

1316201C1

SUPPORT

- wing

2шт.

26

1316649C1

DIVIDER POINT

POINT - wing

2шт.

27

280744

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 2-1/2 inch

4шт.

28

88902

NUT,3/8"-16

NUT - hex lock, 3/8 inch NC

4шт.

29

1307689C1

TUBE,15.24 mm ID, 19.05 mm OD

- wing, inner

4шт.

33

1307684C1

CLAMP

- tine

2шт.

34

937875R1

SCREW,Serr, 1/4" - 20

BOLT - truss head, 1/4 NC x 3/4 inch

4шт.

35

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC

4шт.

36

1316646C2

SUPPORT

- divider (Replaces 1316646C1)

2шт.

37

1316563C2

TUBE,81.9 mm Length

ASSEMBLY - divider

2шт.

38

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

BOLT - slotted truss head, 5/16 NC x 1-1/4 inch (Replaces 164191C1)

4шт.

40

1326571C1

CAP

- rod end

2шт.

41

86224H

SPACER,1/4" Pipe x 3/8"

Not shown 1/4" Pipe x 3/8"

1шт.
