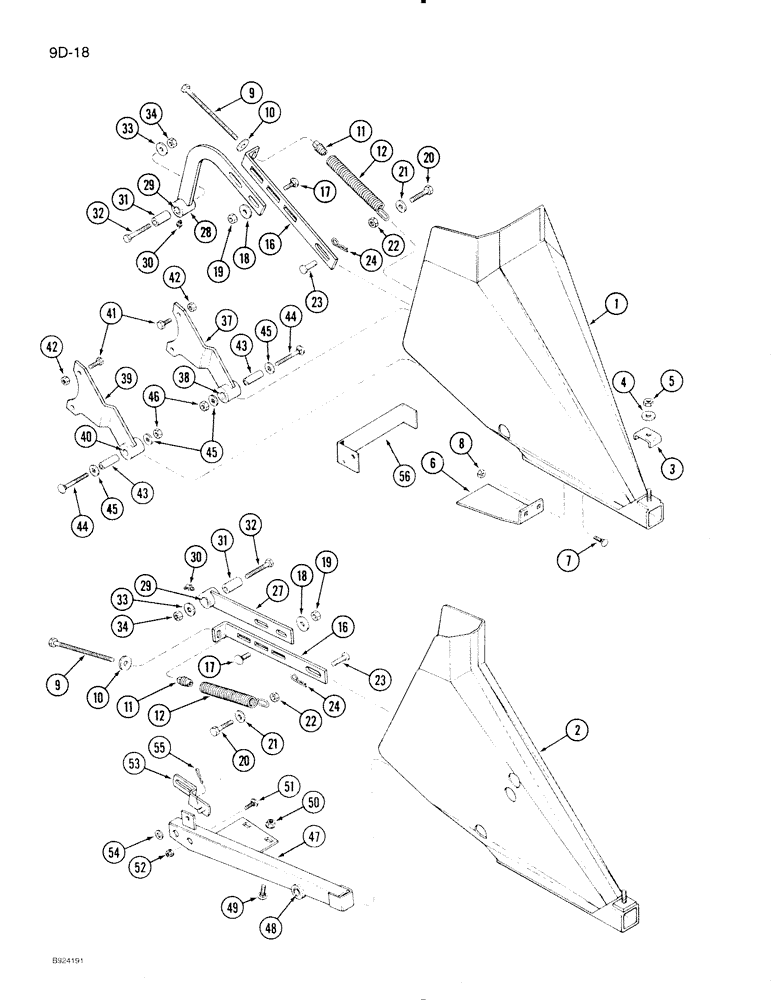

Запчасти Case IH 1020 (9D-18) - DIVIDERS (58) - ATTACHMENTS/HEADERS

1

1316060C3

DIVIDER

- header, left (Replaces 1316060C1,C2)

1шт.

2

1316061C1

DIVIDER

- header, right

1шт.

3

1316709C1

CLAMP

- wing

2шт.

4

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - flat, hardened

2шт.

5

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

6

1316847C1

SUPPORT

BRACKET - guard support

1шт.

7

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

8

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

2шт.

9

480556C1

BOLT,Spcl, 1/2" - 13 x 8"

- hex special, 1/2 NC x 8 inch

2шт.

10

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch (Replaces 25710R1)

2шт.

11

1316731C1

SPECIAL NUT

PLUG - spring

2шт.

12

1316732C1

SPRING

- divider pivot

2шт.

16

1316585C1

SUPPORT

- divider pivot

2шт.

17

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-3/4 inch

4шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch (Replaces 25710R1)

2шт.

19

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.

20

326-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

(Replaces 24876R1) Hex, 5/8"-11 x 2 1/4", G8

2шт.

21

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, hardened

2шт.

22

425-1010

NUT,5/8"-11, G5

2шт.

23

28021R1

HEADED PIN,3/4" x 1 1/2"

PIN - clevis

2шт.

24

486830R1

COTTER PIN

PIN - cotter, hair type, 3/16 inch diameter

2шт.

27

1316787C92

LEVER

- divider pivot, right (Includes Ref. 29 and 30)

1шт.

28

1316786C92

SUPPORT

LEVER - divider pivot, left

1шт.

29

559317R1

BUSHING,25.55mm ID x 28.6mm OD x 38.1mm L

- pivot

1шт.

30

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

31

1326465C2

BUSHING,13.5mm ID x 25.4mm OD x 44.45mm L

- link pivot

2шт.

32

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

33

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - flat, hardened

2шт.

34

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

37

1316227C91

LEVER

- divider pivot, outer left

1шт.

38

1316307C1

BUSHING,19.43mm ID x 31.87mm x 19mm Thk

- pivot

2шт.

39

1316228C92

LEVER

- divider pivot, inner left

1шт.

40

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- pivot (Replaces 298216R1)

2шт.

41

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

42

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

4шт.

43

1316782C1

BUSHING,12.95mm ID x 18.9mm OD x 50.5mm L

- divider pivot

3шт.

44

433-852

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 3-1/4 inch

3шт.

45

498-81006

SQ HOLE WASHER,13.49mm ID x 31.75mm OD x 3.05mm Thk

- square hole, 17/32 x 1-1/4 x 1/8 inch

3шт.

46

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

3шт.

47

1316322C92

SUPPORT

ASSEMBLY - divider, right

1шт.

48

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- support (Replaces 298216R1)

2шт.

49

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

4шт.

50

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

4шт.

51

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

52

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8

2шт.

53

1316674C1

BRACKET

- downstop, right

1шт.

54

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

1шт.

55

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

56

1320954C1

BRACKET

CHANNEL - divider

1шт.
