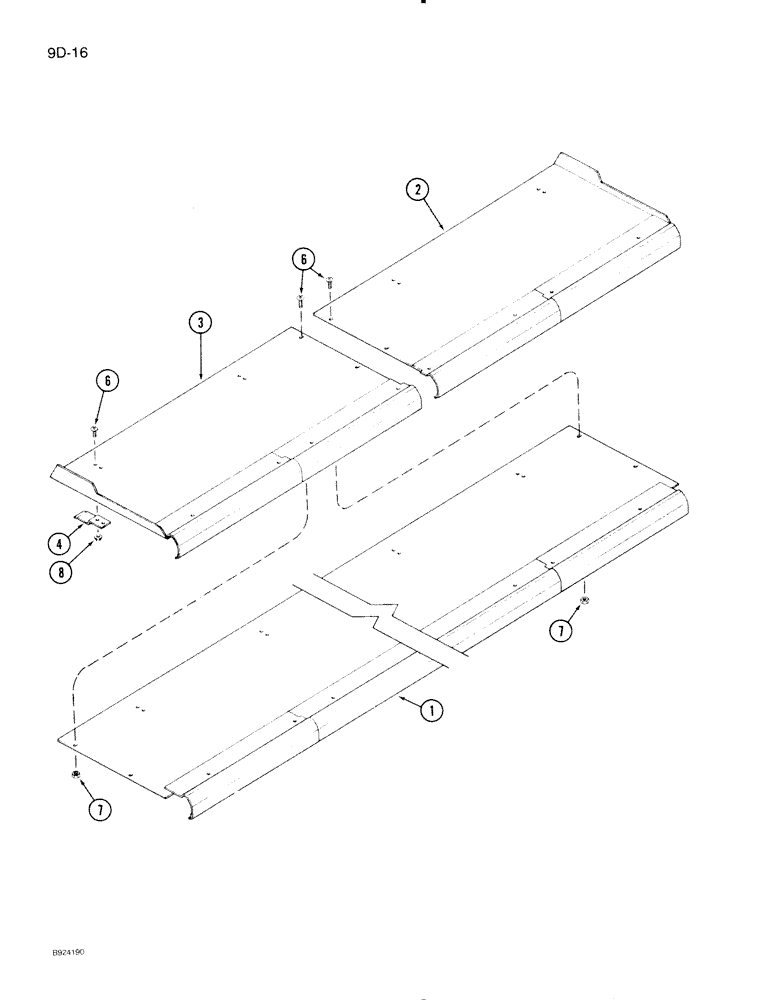

Запчасти Case IH 1020 (9D-16) - BOTTOM SHIELDS (58) - ATTACHMENTS/HEADERS

1

1313156C2

SHIELD

ASSEMBLY - center (Replaces 1313156C1)

1шт.

2

1313132C2

SHIELD

ASSEMBLY - left (15 foot header) (Replaces 1313132C1)

1шт.

2

1326814C2

SHIELD

ASSEMBLY - left (16-1/2 foot header) (Replaces 1326814C1)

1шт.

2

1313133C2

SHIELD

ASSEMBLY - left (17-1/2 foot header) (Replaces 1313133C1)

1шт.

2

1313134C2

SHIELD

ASSEMBLY - left (20 foot header) (Replaces 1313134C1)

1шт.

2

1313135C2

SHIELD

ASSEMBLY - left (22-1/2 foot header) (Replaces 1313135C1)

1шт.

2

1313136C2

SHIELD

ASSEMBLY - left (25 foot header) (Replaces 1313136C1)

1шт.

2

1313137C2

SHIELD

ASSEMBLY - left (30 foot header) (Replaces 1313137C1)

1шт.

3

1313138C2

SHIELD

ASSEMBLY - right (15 foot header) (Replaces 1313138C1)

1шт.

3

1326815C2

SHIELD

ASSEMBLY - right (16-1/2 foot header) (Replaces 1326815C1)

1шт.

3

1313139C2

SHIELD

ASSEMBLY - right (17-1/2 foot header) (Replaces 1313139C1)

1шт.

3

1313140C2

SHIELD

ASSEMBLY - right (20 foot header) (Replaces 1313140C1)

1шт.

3

1313141C2

SHIELD

ASSEMBLY - right (22-1/2 foot header (Replaces 1313141C1)

1шт.

3

1313142C2

SHIELD

ASSEMBLY - right (25 foot header) (Replaces 1313142C1)

1шт.

3

1313143C2

SHIELD

ASSEMBLY - right (30 foot header) (Replaces 1313143C1)

1шт.

4

1307580C1

CLIP

- bottom shield retaining

1шт.

6

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT - slotted truss head, 1/4 NC x 1/2 inch

1шт.

7

188472C1

FLANGE NUT,Flg, 1/4"-20

NUT - hex flange lock, 1/4 inch NC

4шт.

8

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

1шт.
