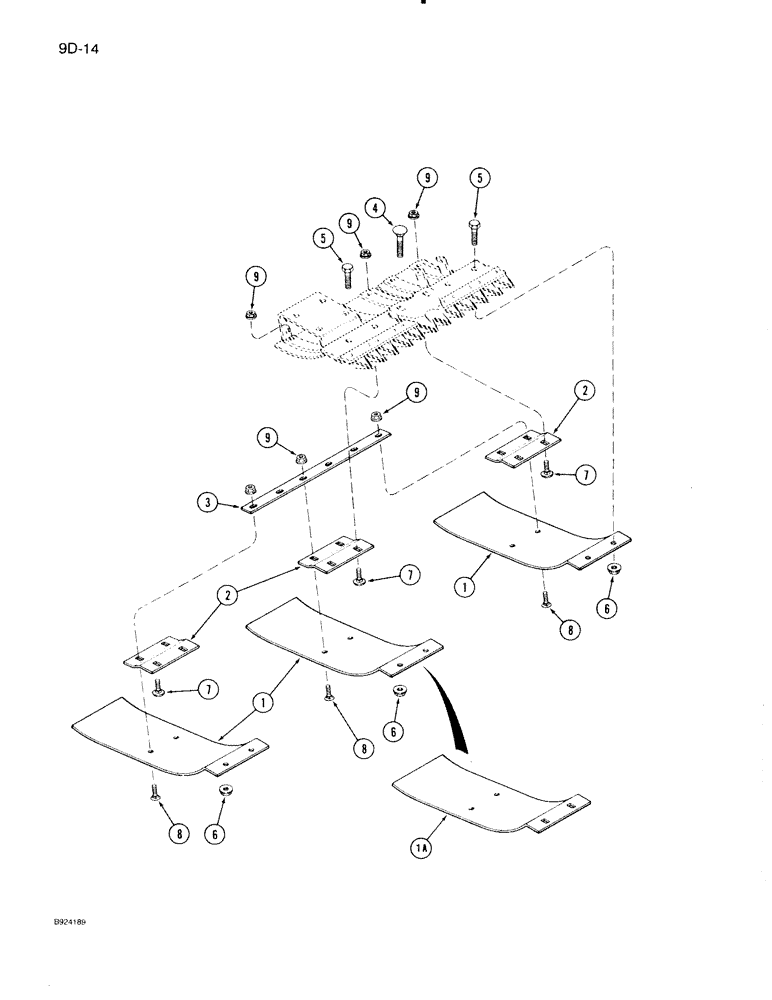

Запчасти Case IH 1020 (9D-14) - AUXILIARY CUTTER BAR SKIDS (58) - ATTACHMENTS/HEADERS

1977182C1

SKID/SHOE

SKID ATTACHMENT - auxiliary (See Note A) (Machinery item, order 1693212)

1шт.

1

1970379C1

SUPPORT

SKID - cutter bar, round holes on lip, auxiliary, no longer available, order 1970379C2 skid, item 1A

3шт.

1a

1970379C2

SKID PLATE

SKID - cutter bar, square holes on lip, auxiliary

3шт.

2

1970431C1

SHIELD

SUPPORT - skid, auxiliary

3шт.

3

1977119C1

BAR

- skid support

1шт.

4

434-736

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

BOLT - round head square neck, 7/16 NC x 2-1/4 inch (See Note B)

2шт.

5

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

(See Note B), if used Hex, 7/16"-14 x 1 3/4", G5

4шт.

5

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

BOLT - carriage, 7/16 NC x 1-3/4 inch (See Note B), if used

4шт.

6

1313463C1

FLANGE NUT

NUT - hex small flange, 7/16 inch NC

6шт.

7

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

6шт.

8

27985R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/4", Gr 8

BOLT - flat head square neck, 3/8 NC x 1-1/4 inch

6шт.

9

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

12шт.
