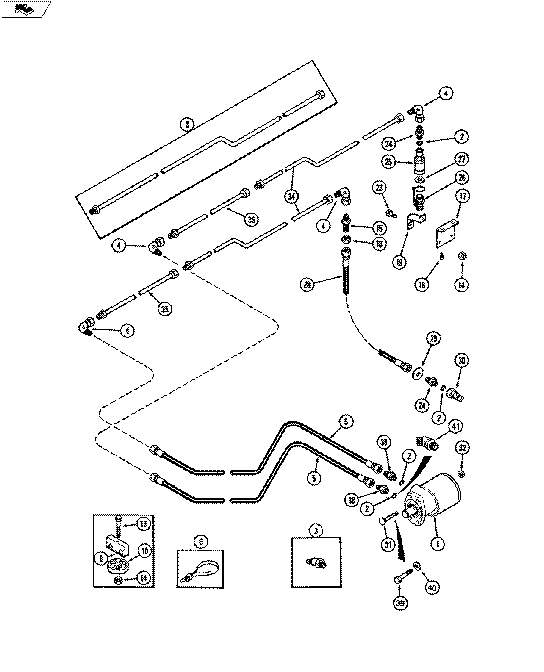

Запчасти Case IH 1020 (8-02) - REEL DRIVE MOTOR HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

MOTOR ASSEMBLY - hydraulic, reel drive (See Figure 8-20)

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

3

1304883C1

ELBOW

- 45 degree, 3/4-16 flared x 3/4-16 inch O-ring boss

2шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 3/4-16 inch flared

4шт.

5

185853C1

HOSE

ASSEMBLY - 3/8 ID x 33 inch (Replaces H2059300)

2шт.

6

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

1шт.

6

533959R1

CABLE TIE,.135" x 11"

STRAP - tie, 10 inch long

2шт.

8

1316592C1

TUBE

ASSEMBLY - reel drive (15 foot header)

2шт.

Replaced by two sections of tubing. See Ref. 34 and Ref. 35.

1шт.

8

1326829C1

TUBE

ASSEMBLY - reel drive (16-1/2 foot header)

2шт.

Replaced by two sections of tubing. See Ref. 34 and Ref. 35.

1шт.

8

1316593C1

HYD TUBE

TUBE ASSEMBLY - reel drive (17-1/2 foot header)

2шт.

Replaced by two sections of tubing. See Ref. 34 and Ref. 35.

1шт.

8

1316595C1

TUBE

ASSEMBLY - reel drive (20 foot header)

2шт.

Replaced by two sections of tubing. See Ref. 34 and Ref. 35.

1шт.

8

1316589C1

TUBE

ASSEMBLY - reel drive (22-1/2 foot header)

2шт.

Replaced by two sections of tubing. See Ref. 34 and Ref. 35.

1шт.

8

1316590C1

HYD TUBE

TUBE ASSEMBLY - reel drive (25 foot header)

2шт.

Replaced by two sections of tubing. See Ref. 34 and Ref. 35.

1шт.

8

1316594C1

TUBE

ASSEMBLY - reel drive (30 foot header)

2шт.

Replaced by two sections of tubing. See Ref. 34 and Ref. 35.

1шт.

9

1301178C1

CLAMP

- tube, double

1шт.

10

1326572C1

SPACER

- 10 mm

1шт.

13

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

14

188472C1

FLANGE NUT,Flg, 1/4"-20

NUT - hex flange lock, 1/4 inch NC

1шт.

15

9403255

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION - bulkhead, 3/4-16 inch flared

1шт.

16

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, (Replaces 9403294) Blkhd, 3/4"-16

1шт.

17

1316779C1

SUPPORT

ANGLE - quick disconnect support

1шт.

18

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

2шт.

19

1321398C1

CLAMP

- quick disconnect

1шт.

23

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

24

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

short, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

25

REF

INSTRUCTION

COUPLING ASSEMBLY - female, self-sealing (See Page 8-39)

1шт.

26

1954133C1

PLUG

PLUG ASSEMBLY - dust, coupling (Replaces 401757R11)

1шт.

27

353-508

DUST CAP

CAP - dust, 1/2 inch hydraulic tube (Replaces 401758R1)

1шт.

28

1316829C1

HOSE

ASSEMBLY - 3/8 ID x 38 inch

1шт.

29

1345266C1

WASHER

- white (Replaces 1327632C1)

1шт.

30

REF

INSTRUCTION

COUPLING ASSEMBLY - male, self sealing (See Page 8-39)

1шт.

31

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - round head square neck, 1/2 NC x 2 inch, if used

2шт.

32

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

34

1338406C1

TUBE,0.5" OD, 2820 mm Length

ASSEMBLY - reel drive (15 foot header)

2шт.

34

1338406C1

TUBE,0.5" OD, 2820 mm Length

ASSEMBLY - reel drive (16-1/2 foot header)

2шт.

34

1338406C1

TUBE,0.5" OD, 2820 mm Length

ASSEMBLY - reel drive (17-1/2 foot header)

2шт.

34

1338406C1

TUBE,0.5" OD, 2820 mm Length

ASSEMBLY - reel drive (20 foot header)

2шт.

34

1338406C1

TUBE,0.5" OD, 2820 mm Length

ASSEMBLY - reel drive (22-1/2 foot header)

2шт.

34

1338406C1

TUBE,0.5" OD, 2820 mm Length

ASSEMBLY - reel drive (25 foot header)

2шт.

34

1338406C1

TUBE,0.5" OD, 2820 mm Length

ASSEMBLY - reel drive (30 foot header)

2шт.

35

1338408C1

TUBE,0.5" OD, 563 mm Length

ASSEMBLY - reel drive (15 foot header)

2шт.

35

1338409C1

TUBE,0.5" OD, 791 mm Length

ASSEMBLY - reel drive (16-1/2 foot header)

2шт.

35

1316443C1

TUBE,0.5" OD, 943 mm Length

ASSEMBLY - reel drive (17-1/2 foot header)

2шт.

35

1338410C1

TUBE,0.5" OD, 1324 mm Length

ASSEMBLY - reel drive (20 foot header)

2шт.

35

1338411C1

TUBE,0.5" OD, 1705 mm Length

ASSEMBLY - reel drive (22-1/2 foot header)

2шт.

35

1338412C1

TUBE,0.5" OD, 2086 mm Length

ASSEMBLY - reel drive (25 foot header)

2шт.

35

1338413C1

TUBE,0.5" OD, 2848 mm Length

ASSEMBLY - reel drive (30 foot header)

2шт.

38

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

used with 93404C1 or 173828C91 reel drive motor

2шт.

39

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

If used Hex, 1/2"-13 x 1 3/4", G5

2шт.

40

25536R1

WASHER

- flat, 17/32 x 1-1/16 x 3/32 inch, hardened, if used

2шт.

41

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 45 degree, 3/4-16 flare x 7/8-14 inch adj O-ring

1шт.

used with 1986619C1 reel drive motor

2шт.
