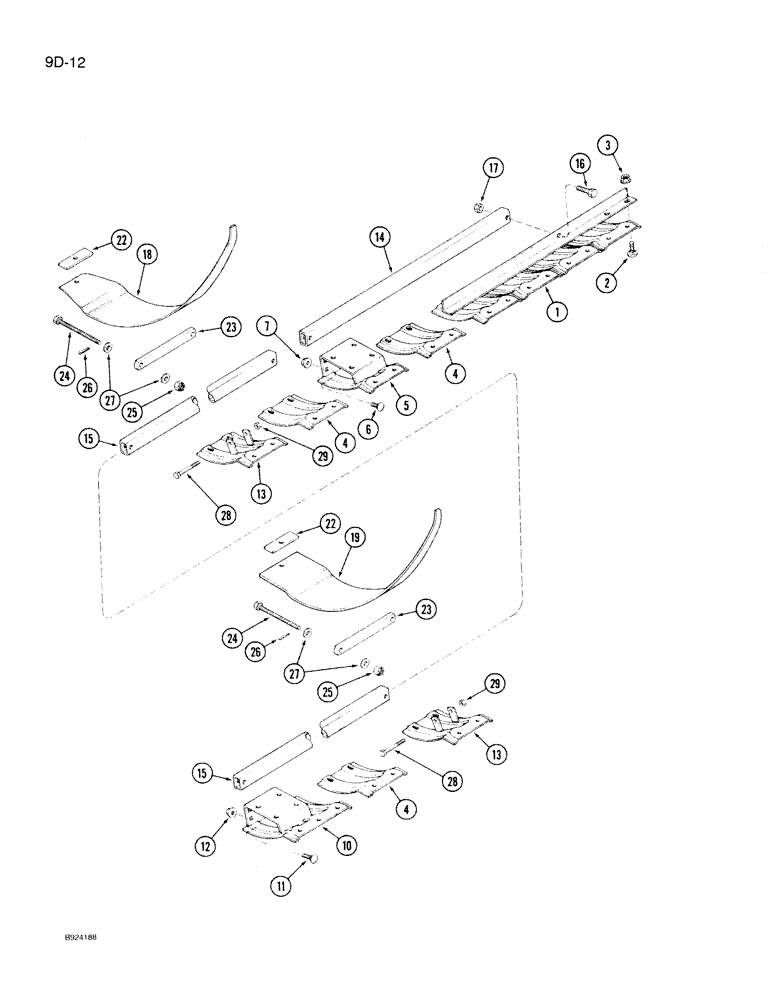

Запчасти Case IH 1020 (9D-12) - CUTTER BAR SKIDS AND SUPPORT SPRINGS (58) - ATTACHMENTS/HEADERS

1

1316324C2

SUPPORT

ASSEMBLY - skid, left (Replaces 1316324C1) (15, 20, 25 and 30 foot header)

1шт.

1

1316325C2

SUPPORT

ASSEMBLY - skid, left (Replaces 1316325C1) (16-1/2, 17-1/2 and 22-1/2 foot header)

1шт.

2

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

2шт.

3

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

- hex flange lock, 1/2 inch NC

2шт.

4

1307399C2

SKID/SHOE

SKID - cutter bar (Replaces 1307399C1)

1шт.

5

1307398C3

BRACKET

SKID - runner support (Replaces 1307398C1,C2)

1шт.

6

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch, if used

1шт.

7

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC, if used

1шт.

10

1316335C3

SKID/SHOE

SKID - runner support, right (Replaces 1316335C1,C2) (15, 20, 25 and 30 foot header)

1шт.

to replace use 1307398C5 for a 17 1/2" or 22 1/2" header

1шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

12

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

13

1307466C2

BRACKET

SKID - spring support (Replaces 1307466C1)

1шт.

14

1320908C2

TUBE,845.5 mm Length

- cutter bar, lockout (Replaces 1320908c1)

1шт.

15

1320914C2

TUBE,1226.5 mm Length

- cutter bar (15 foot header) (Replaces 1320914C1)

2шт.

15

1320913C2

TUBE,693 mm Length

- cutter bar (17-1/2 foot header) (Replaces 1320913C1)

2шт.

15

1320912C2

TUBE,1074 mm Length

- cutter bar (20 foot header) (Replaces 1320912C1)

2шт.

15

1320911C2

TUBE,540.5 mm Length

- cutter bar (16-1/2 and 22-1/2 foot header) (Replaces 1320911C1)

2шт.

15

1320910C2

TUBE,921.5 mm Length

- cutter bar (25 foot header) (Replaces 1320910C1)

2шт.

15

1320909C2

TUBE,769 mm Length

- cutter bar (30 foot header) (Replaces 1320909C1)

2шт.

16

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

17

232-5316

FLANGE NUT,Flg, 3/8"-16

NUT - hex lock, 3/8 inch NC (Replaces 9413979)

1шт.

18

87450184

SPRING, LEAF

SPRING - cutter bar support

1шт.

19

87450185

SUPPORT

SPRING - cutter bar support, right

1шт.

22

1316387C1

PLATE

- spring support

1шт.

23

1305054C2

BAR

- spring adjusting

1шт.

24

1313175C1

BOLT,Hex, 1/2" - 13 x 6.25", Type 8, Full Thd, Drilled

BOLT - special, 1/2 NC x 6-1/4 inch, Grade 8

1шт.

25

425-128

SLOTTED NUT,1/2"-13, G5

NUT - hex slotted, 1/2 inch NC (Replaces 121592)

1шт.

26

19674R1

PIN,2.36mm OD x 25.4mm L, Coiled

1шт.

27

25536R1

WASHER

- flat, 17/32 x 1-1/16 x 3/32 inch

1шт.

28

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

1шт.

29

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.
