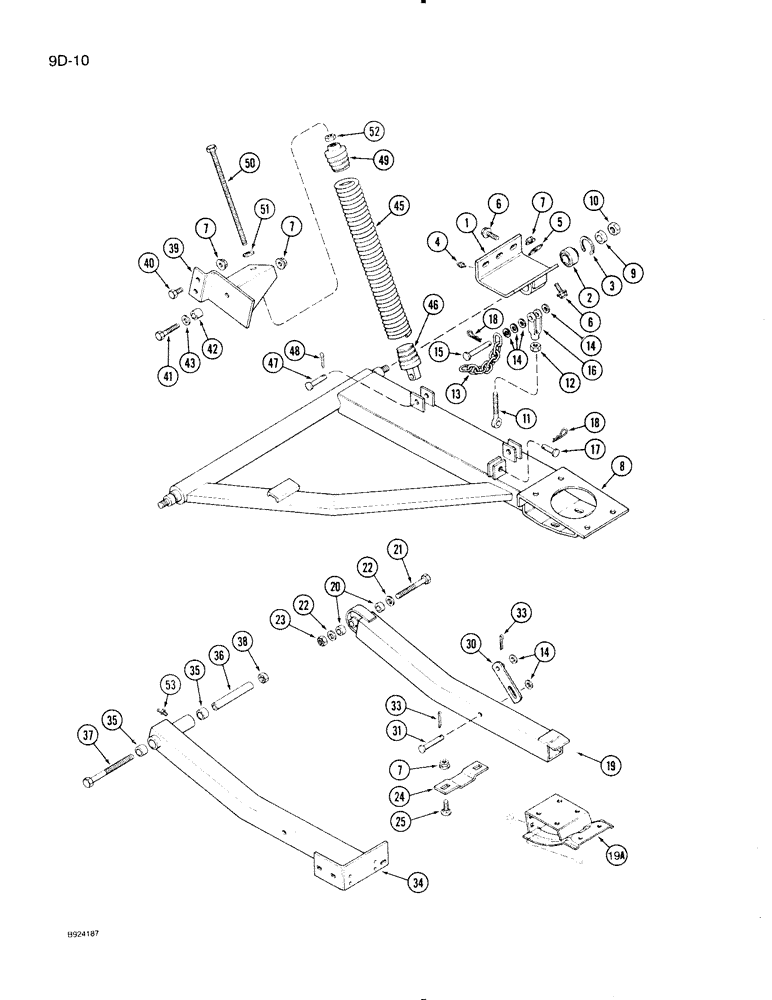

Запчасти Case IH 1020 (9D-10) - MAIN FRAME SUPPORTS (58) - ATTACHMENTS/HEADERS

1

1313979C91

SUPPORT

ASSEMBLY - pivot, outer

1шт.

2

1316827C1

BUSHING,25.4mm ID x 41.27mm OD x 22.23mm W

- pivot

1шт.

3

206321H1

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

5

199408C1

SHIM,28mm OD x 1mm Thk

- 0.032 inch (If equipped)

1шт.

6

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

(Replaces 204060C1) Hex, 1/2"-13 x 1 1/4", G8, Full Thd

5шт.

7

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

- hex flange lock, 1/2 inch NC, Grade 8

1шт.

8

1307418C3

SUPPORT

ASSEMBLY - runner, left (replaces 1307418C2)

1шт.

9

1316828C1

SPACER

- support

2шт.

10

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

11

1326542C1

U-BOLT

EYEBOLT - 1/2 inch NF

1шт.

12

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

2шт.

13

1977174C1

CHAIN (AG)

CHAIN - downstop

1шт.

14

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") (Replaces 25710R1) 1/2", SAE

5шт.

15

23171R1

SPLIT PIN/SAFETY PIN

PIN - headed, 1/2 x 3 inch

1шт.

15

671034R1

PIN

- headed, 1/2 x 1-1/2 inch (If equipped)

1шт.

16

144245

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - adjustable, 1/2 nf x 3

1шт.

17

671034R1

PIN

- headed, 1/2 x 1-1/2 inch

1шт.

18

480523R1

HAIR PIN COTTER

9/64" dia

2шт.

19

1989223C2

SUPPORT

- runner, inner (Replaces 1316676C1), skid shoe now, Serial Range: welded-support

1шт.

19a

1307398C3

BRACKET

SKID - runner support

1шт.

20

577715R1

SPACER,16.69mm ID x 22.23mm OD x 10.32mm L

- 7/8 x 3/8 inch

1шт.

21

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

1шт.

22

495-81177

WASHER,21/32" x 1" x .030"

- flat, 21/32 x 1 x 1/32 inch

1шт.

23

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

24

1316681C1

SUPPORT

- runner

1шт.

25

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

1шт.

30

1316302C1

ARM

ASSEMBLY - stop

1шт.

31

23173R1

CLEVIS PIN

PIN - clevis, 1/2 x 2-3/4 inch

1шт.

33

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

34

1316677C2

SUPPORT

ASSEMBLY - runner, right

1шт.

35

551068R1

BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L

- support

2шт.

36

1316883C2

SPACER

- 5/8 x 5 inch

1шт.

37

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

1шт.

38

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

39

1313100C1

SUPPORT

- spring runner, left

1шт.

40

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

2шт.

41

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

1шт.

42

610399R1

SPACER,13.9mm ID x 21.34mm OD x 9.5mm L

- 1/2 x 7/8 inch

1шт.

43

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") (Replaces 25710R1) 1/2", SAE

1шт.

45

1313103C1

SPRING

- runner support, left

1шт.

46

1313104C1

PLUG

- spring, lower

1шт.

47

21573R1

HEADED PIN,1/2" x 2"

PIN - clevis, 1/2 x 2 inch

1шт.

48

432-1216

COTTER PIN,3/16" x 1"

1шт.

49

1313105C1

PLUG

- spring, upper

1шт.

50

1320265C1

BOLT

- hex special, 1/2 NC x 10 inch

1шт.

item 50 1320265c1 bolt. for 5/8" bolt conversion, order

1шт.

(1) each of 124365a1, bolt, 124366a1, plug, 1313100c2

1шт.

support, and 425-1010, nut. tal 9/9/94.

1шт.

51

396-31053

WASHER,17/32" x 1 1/16" x .188", HDN

- flat, 17/32 x 1-1/16 x 3/16 inch (Replaces 25546R1)

1шт.

52

329-108

NUT,1/2"-13, G8

1шт.

53

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - grease, 45 degree (If equipped)

1шт.
