(9C-34) - FEEDER JACKSHAFT, 1420, 1440, 1460 AND 1480 COMBINE

Запчасти Case IH 1020 (9C-34) - FEEDER JACKSHAFT, 1420, 1440, 1460 AND 1480 COMBINE (58) - ATTACHMENTS/HEADERS

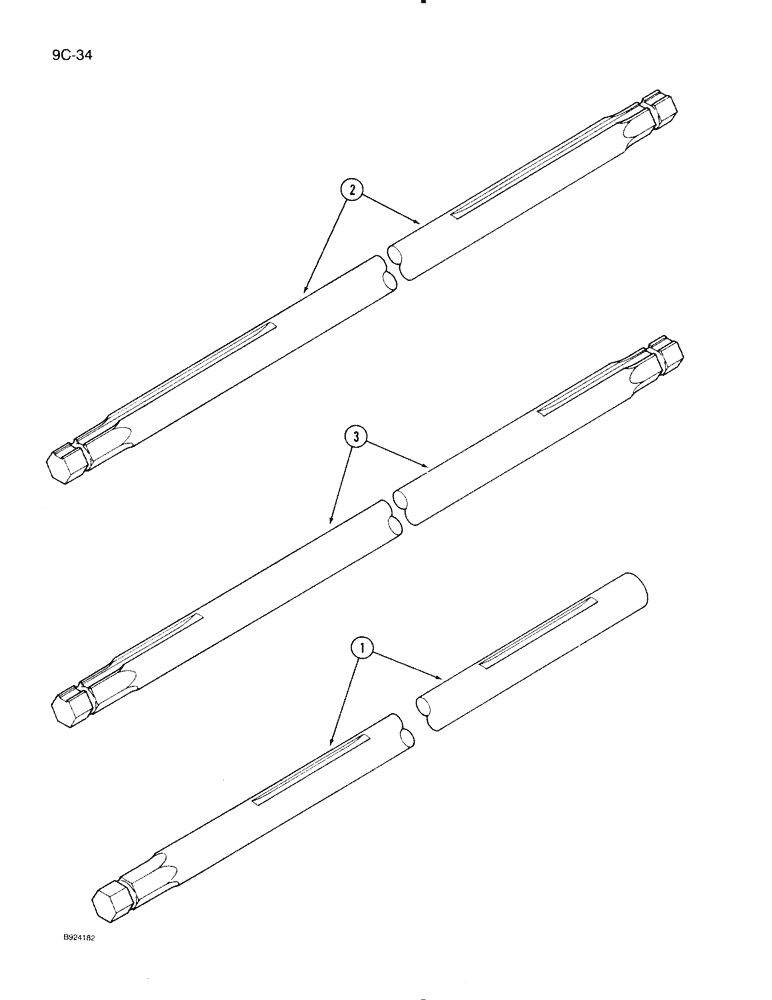

Схема запчастей Case IH 1020 - (9C-34) - FEEDER JACKSHAFT, 1420, 1440, 1460 AND 1480 COMBINE (58) - ATTACHMENTS/HEADERS
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

184596C2

JACKSHAFT

SHAFT - feeder jackshaft (1420 combine) (Replaces 1323529C91)

1шт.

REF # 1 184596C2 LOOKS JUST LIKE THE ILLUS. FOR 1993 HEADERS & 1420 NO SHAFT EVER RELEASED WITH BOTH ENDS HEX. ORDER 1440 SHAFT AND REWORK

1шт.

2

1323530C91

SHAFT

- feeder jackshaft (1440 and 1460 combine)

1шт.

3

1323531C91

SHAFT

- feeder jackshaft (1480 combine)

1шт.

Выбрано товаров: 4
