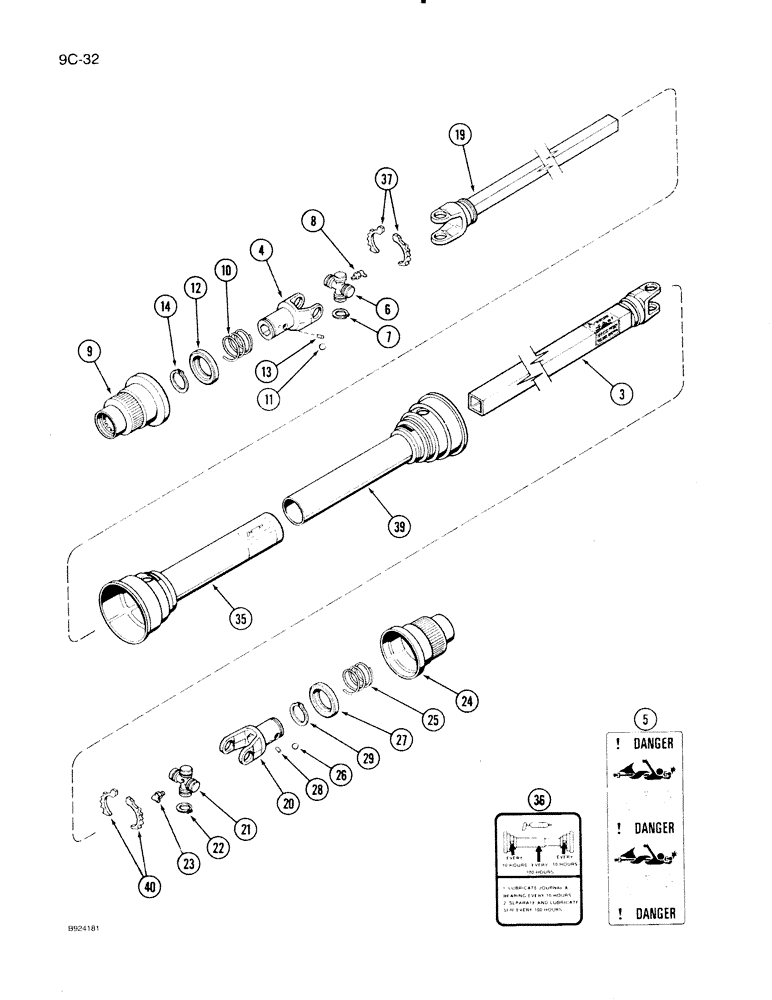

Запчасти Case IH 1020 (9C-32) - AUGER AND KNIFE DRIVE SHAFT, 22-1/2, 25 AND 30 FOOT HEADER, HAYES-DANA (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1316989C91
SHAFT
DRIVE SHAFT ASSEMBLY - header
1шт.
1326740C91
DRIVE SHAFT
SHAFT ASSEMBLY - drive, female
1шт.
3
NSS
NOT SOLD SEPARAT
TUBE - female, outer (Order 1326740C91)
1шт.
4
NSS
NOT SOLD SEPARAT
YOKE - outer (Order 1326740C91)
1шт.
5
1326528C1
DECAL
- Danger, shield missing (See Figure 9D-30)
1шт.
6
757443
U-JOINT SPIDER
CROSS KIT - yoke (Replaces 480486R1)
1шт.
7
1986059C1
SNAP RING
RING - retaining
1шт.
7
606177R1
SNAP RING
RING - retaining
1шт.
8
80711
LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg
FITTING - grease, 65 degree, 1/8 inch PT (Replaces 219-40)
1шт.
9
1326580C1
COLLAR
- yoke
1шт.
10
1326585C1
SPRING
- shield
1шт.
11
21505R1
BALL,1/2" Dia, Stainless
- 1/2 inch
3шт.
12
1326583C1
COLLAR
RACE - shaft retainer
1шт.
13
19877R1
DOWEL
PIN - dowel, 3/16 x 1/2 inch
3шт.
14
258400C1
SNAP RING,#187, Ext
Ring, Snap, (replaces D38248) #187, Ext
1шт.
1326743C91
DRIVE SHAFT
SHAFT ASSEMBLY - drive, male
1шт.
19
NSS
NOT SOLD SEPARAT
SHAFT - male, inner (Order 1326743C91)
1шт.
20
NSS
NOT SOLD SEPARAT
YOKE - drive (Order 1326743C91)
1шт.
6
757443
U-JOINT SPIDER
CROSS KIT - yoke (Replaces 480486R1)
1шт.
2
1986059C1
SNAP RING
RING - retaining
1шт.
22
606177R1
SNAP RING
RING - retaining
1шт.
23
80711
LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg
FITTING - grease, 65 degree, 1/8 inch PT (Replaces 219-40)
1шт.
24
1326580C1
COLLAR
- yoke
1шт.
25
1326585C1
SPRING
- shield
1шт.
26
21505R1
BALL,1/2" Dia, Stainless
- 1/2 inch
3шт.
27
1326583C1
COLLAR
RACE - shaft retainer
1шт.
28
19877R1
DOWEL
PIN - dowel, 3/16 x 1/2 inch
3шт.
29
258400C1
SNAP RING,#187, Ext
Ring, Snap, (replaces D38248) #187, Ext
1шт.
1326746C91
SHIELD
ASSEMBLY - outer
1шт.
35
NSS
NOT SOLD SEPARAT
SHIELD - outer (Order 1326746C91)
1шт.
36
1326579C1
DECAL
- instructions, drive shaft lubrication (See Figure 9D-30)
1шт.
37
1326581C1
COLLAR
BEARING - half
2шт.
1326749C91
SHIELD
ASSEMBLY - inner
1шт.
39
NSS
NOT SOLD SEPARAT
SHIELD - inner (Order 1326749C91)
1шт.
40
1326581C1
COLLAR
BEARING - half
2шт.
Выбрано товаров: 35
