(9C-30) - AUGER AND KNIFE DRIVE SHAFT, 22-1/2, 25 AND 30 FOOT HEADER, WALTERSCHEID

Запчасти Case IH 1020 (9C-30) - AUGER AND KNIFE DRIVE SHAFT, 22-1/2, 25 AND 30 FOOT HEADER, WALTERSCHEID (58) - ATTACHMENTS/HEADERS

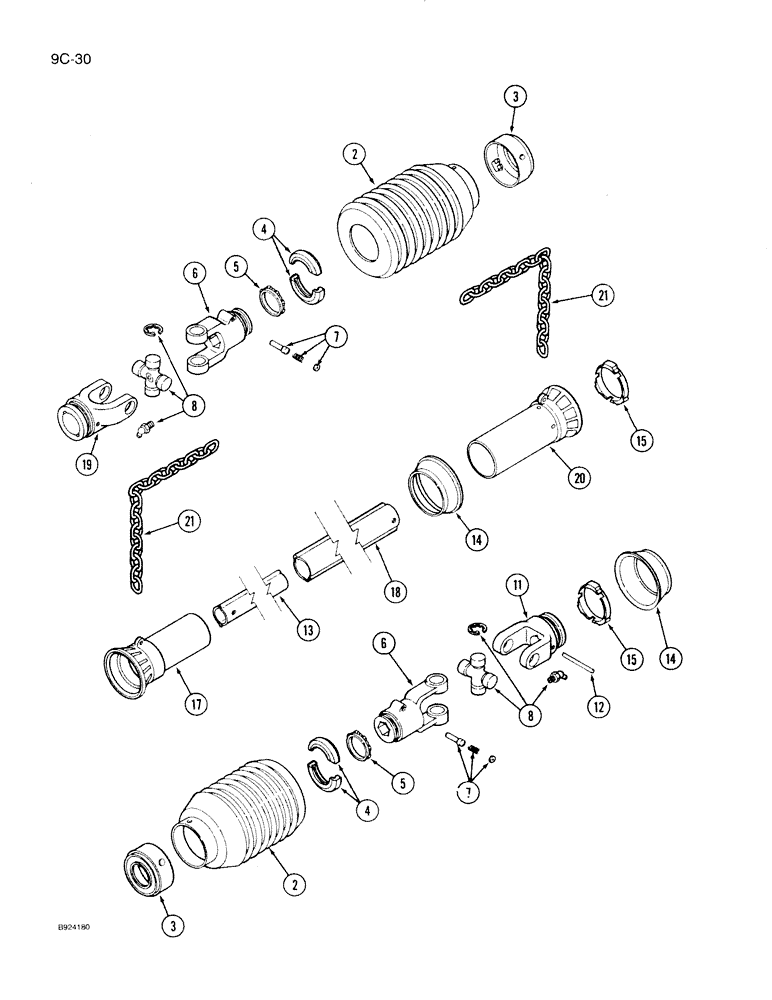

Схема запчастей Case IH 1020 - (9C-30) - AUGER AND KNIFE DRIVE SHAFT, 22-1/2, 25 AND 30 FOOT HEADER, WALTERSCHEID (58) - ATTACHMENTS/HEADERS
6
8
7
3
7
5
14
4
11
14
15
13
17
20
19
2
18
21
2
6
5
8
4
3
15
21
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1316215C91

SHAFT

DRIVE SHAFT - header

1шт.

2

1326494C1

SHIELD

- drive shaft

2шт.

3

1326500C1

COLLAR

- drive shaft

2шт.

4

1326498C1

RING

- outer

4шт.

5

1326499C1

WASHER

BEARING - ball

2шт.

6

1326490C1

YOKE

- drive shaft

2шт.

7

1281458C1

KIT

- pin

1шт.

8

1281444C1

KIT

BEARING AND CROSS ASSEMBLY - drive shaft

2шт.

11

1281445C1

YOKE

- end, male

1шт.

12

30907R1

LOCK PIN,M10 x 70, Slotted

PIN - spring, 10 x 70 mm

2шт.

13

1326491C1

TUBE,1300 mm Length

- drive, inner

1шт.

14

1326495C1

SHIELD

FLANGE - guard

2шт.

15

1281450C1

RING

- bearing

2шт.

17

1326496C1

SHIELD

- outer

1шт.

18

1326492C1

TUBE

- drive, outer

1шт.

19

1326493C1

YOKE

- end, female

1шт.

20

1326497C1

TUBE

- shield, inner

1шт.

21

1281453C1

CHAIN (AG)

CHAIN - safety

1шт.
