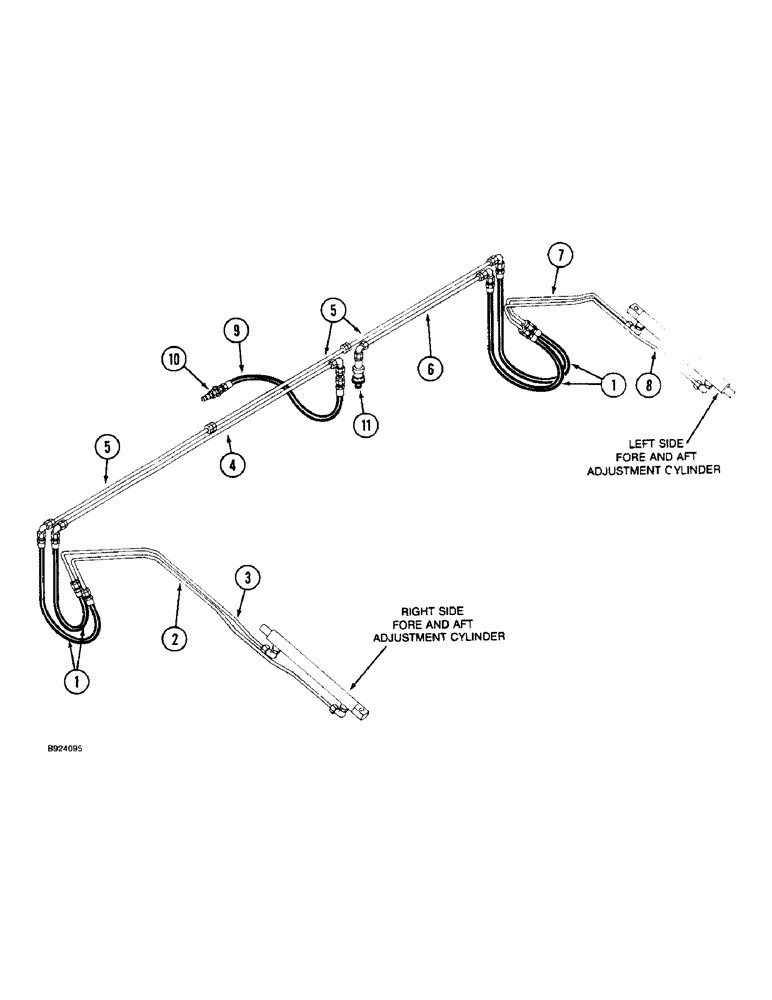

Запчасти Case IH 1020 (1-12) - PICTORIAL INDEX, REEL FORE AND AFT ADJUSTMENT HYDRAULICS (35) - HYDRAULIC SYSTEMS
6
1
11
5
9
5
1
10
2
3
4
8
7
№
Артикул
Название
Примечание
Количество
1
Reel Adjustment Cylinder Hose, Page 8-13, 8-15
1шт.
2
Right Adjustment Cylinder Tube, Page 8-13, 8-15
1шт.
3
Right Adjustment Cylinder Tube, Page 8-13, 8-15
1шт.
4
Right Adjustment Cylinder Tube, Page 8-13, 8-15
1шт.
5
Cylinder to Cylinder Tube, Page 8-13, 8-15
1шт.
6
Left Adjustment Cylinder Tube, Page 8-13, 8-15
1шт.
7
Left Adjustment Cylinder Tube, Page 8-13, 8-15
1шт.
8
Left Adjustment Cylinder Tube, Page 8-13, 8-15
1шт.
9
Reel Adjustment to Combine Hose, Page 8-13, 8-15
1шт.
10
Male Coupling, Page 8-13, 8-15, 8-35
1шт.
11
Female Coupling, Page 8-13, 8-15, 8-39
1шт.
Выбрано товаров: 11
