Запчасти Case IH 1020 (09C-09) - AUGER JACKSHAFT DRIVE 17.5 AND 20.0 FOOT HEADER (09) - CHASSIS/ATTACHMENTS

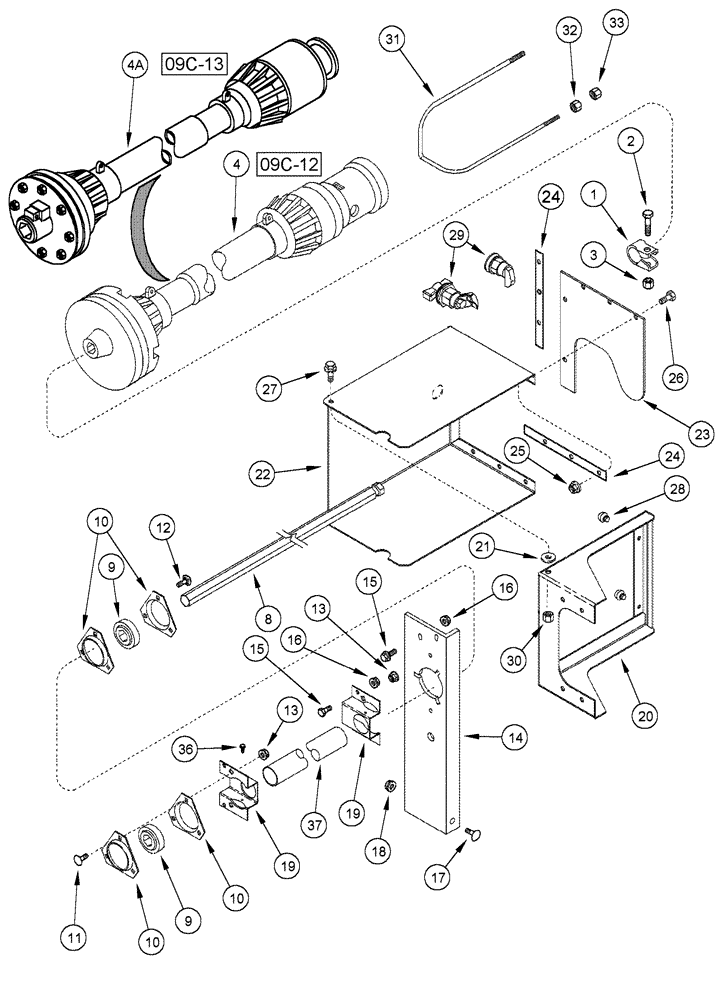

Схема запчастей Case IH 1020 - (09C-09) - AUGER JACKSHAFT DRIVE 17.5 AND 20.0 FOOT HEADER (09) - CHASSIS/ATTACHMENTS
4
22
10
19
28
2
13
30
4a
11
9
1
15
21
16
36
12
15
19
23
24
09c-13
09c-12
32
17
33
14
10
31
24
25
37
3
26
18
13
29
27
8
20
9
10
16

Артикул

Название

Примечание

Количество

1

225265R1

CLAMP

auger bed gear, Serial Range: -JJC0350294

1шт.

2

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

3

86992215

LOCK NUT,1/2"-13, GC

1шт.

4

106044A1

DRIVE SHAFT

auger RH, Serial Range: -JJC0323603

1шт.

See figure 09C-12

1шт.

4a

106044A3

DRIVE SHAFT

PTO auger, Start Serial: JJC0323604

1шт.

See figure 09C-13

1шт.

8

125976A1

JACKSHAFT

auger 17.5 foot

1шт.

8

125977A1

JACKSHAFT

auger 20.0 foot

1шт.

9

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

2шт.

10

180955C1

FLANGED BEARING,0.375"

bearing, Serial Range: -JJC0350294

4шт.

11

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

12

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

3шт.

13

247780

SERRATED NUT,Flg, USR, 3/8"-16

9шт.

14

128416A2

SUPPORT

jackshaft bearing RH, Serial Range: -JJC0350294

1шт.

15

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

15

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

16

145458

SERRATED NUT,5/16"-18 GR 5 ZND

3шт.

17

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

18

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

19

125992A1

SUPPORT

jackshaft, Serial Range: -JJC0350294

2шт.

20

251170A1

SHIELD

auger slip clutch

1шт.

21

254233A2

WASHER

shoulder

2шт.

22

247087A1

DOOR

auger slip clutch shield, Serial Range: -JJC0350294

1шт.

23

251031A1

GUARD

auger slip clutch

1шт.

24

251046A1

SEALING STRIP

auger slip clutch

2шт.

25

523282

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

26

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

5шт.

26

523292

BOLT,1/4" - 20 x 1.03" OAL

3шт.

27

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

28

259019A1

BUMPER

plug

2шт.

29

276013A1

LATCH

shield

1шт.

29

143347A1

LATCH

engine cover

1шт.

Australia Only

1шт.

30

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.

31

138005A1

HANGER

drive line

1шт.

32

280431

NUT,1/2"-13, G5

2шт.

33

86992215

LOCK NUT,1/2"-13, GC

2шт.

36

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

2шт.

37

125987A1

TUBE,48.26 mm OD, 408 mm Length

jackshaft 17.5 foot

1шт.

37

125988A1

TUBE,48.26 mm OD, 789 mm Length

jackshaft 20.0 foot

1шт.

38

247089A1

SHIELD

auger slip clutch

1шт.

Not Shown

1шт.

Includes 20 - 30

1шт.

Выбрано товаров: 44
